62 Mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

0 reviews • Write a review

from

$406.86

Ex Tax: $406.86

Stock: In Stock
Model: RDDLZ-HD-62
Weight: 1.00
SKU: RDDLZ-HD-62

Available Options

Short Description

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

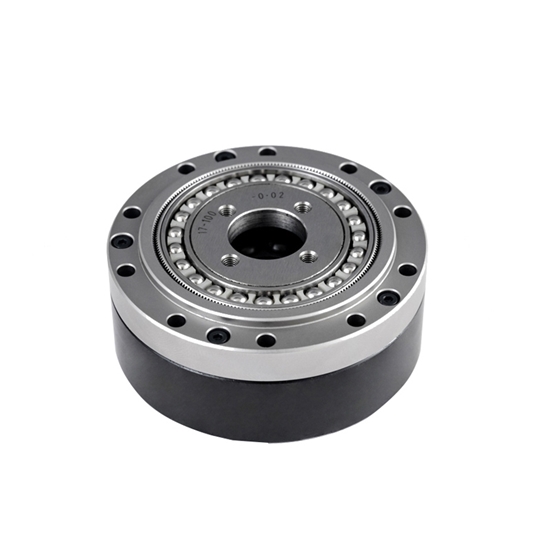

Factory price 62 mm strain wave harmonic drive gearbox is used for industrial robots, CNC equipment, medical instruments, and the military industry. High torque strain wave gearbox has 30/50/80/100 gear ratio and provides a harmonic gear reduction, but can also be used to increase rotation speed.

Features

It is a strain wave harmonic drive gearbox with a hollow structure.
Compact harmonic drive gearbox with a high static Increased load capacity of simple structure.
The load capacity of the shaft on the output side of the strain wave gearbox is increased.
Harmonic gearing with a 30~100 high gear ratio is available.
62 mm strain wave gearbox is designed for robots.

Specifications

Model: RDDLZ-CSD-17
Diameter: 62 mm
Thickness: 26.5 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80	100
Rated torque when input 2000r/min (N.m)	6.60	11	12.8	16
Allowable peak torque at start and stop (N.m)	13.8	29	29.6	37
Maximum allowable average load torque (N.m)	10.8	18	21.6	27
Momentary allowable maximum torque (N.m)	28.8	48	56.8	71
Allowable maximum input speed (r/min)	7000
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤20	≤10	≤10

Dimensions (unit: mm)

Harmonic Drive Gearbox Applications

RDDLZ harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Tips: What are the components of harmonic drive?

Rigid wheel: rigid internal gear, generally 2 teeth more than the flexible wheel, generally fixed on the housing.
Flexible wheel: a thin cup-shaped metal elastic component with a gear on the outer ring of the
opening, which deforms with the rotation of the wave generator, and is usually connected with the output shaft.
Wave generator: It consists of an elliptical cam and a flexible bearing, usually attached to the input shaft. The inner ring of the flexible bearing is fixed to the cam and the outer ring can be deformed elastically to an ellipse by means of a ball.

All of the above is the device components of harmonic gearing.
