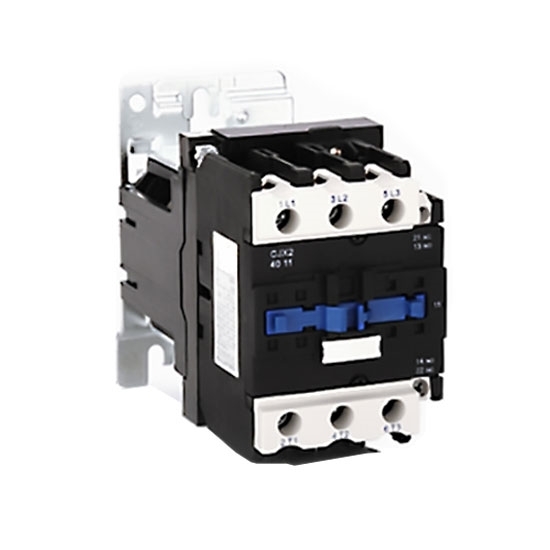

40 Amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

0 reviews • Write a review

from

$110.89

Ex Tax: $110.89

Stock: In Stock
Model: RDDLZ-DCCON-40A
Weight: 1.00
SKU: RDDLZ-DCCON-40A

Available Options

Contact Form

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40 amp DC Contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

Specification

Model		RDDLZ-CJX2-40Z	RDDLZ-CJX2-40008Z
Rated Current		40A AC
Coil Rated Voltage (Optional)		12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC

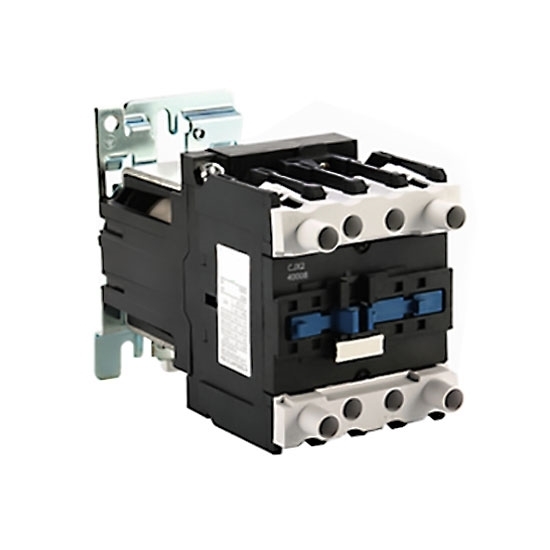

Contact Form (Optional)		3 Pole (3NO)+1NO+1NC	4 Pole (2NO+2NC)
Frequency		50Hz/ 60Hz AC
Rated Power (AC-3)	200-240V	11kW (15HP)
	380-440V	18.5kW (25HP)
	500-550V	30kW (40HP)
	600-690V	30kW (40HP)
Conventional Thermal Current		25A
Operating Temperature		-40℃~85℃
Operating Humidity		5~95% RH

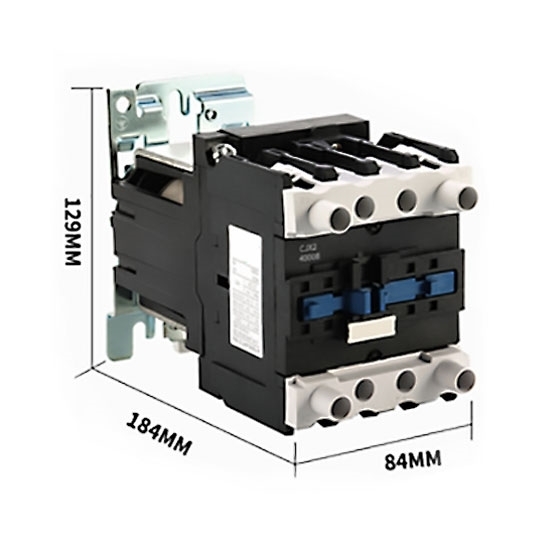

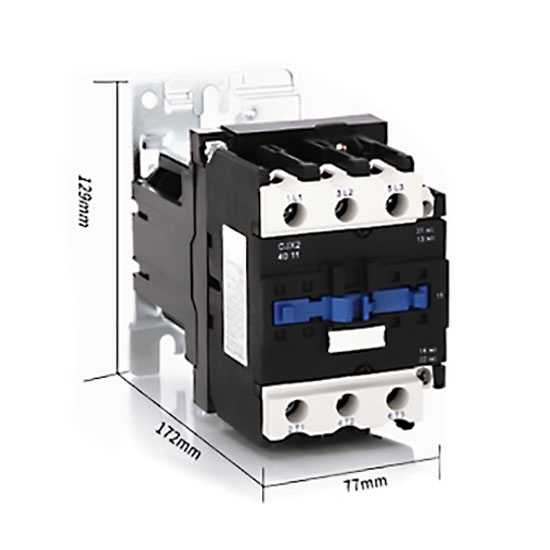

Dimensions		77 x 129 x 172mm	84 x 129 x 184mm
Weight		1.5kg

Circuits Diagram

Details

Tips: Characteristics of DC contactor

DC contactor’s iron core and armature are made of a single piece of solid material instead of silicon steel sheet.
The DC voltage coil has a large DC resistance value.
It has DC main contacts and auxiliary contacts of varying numbers. Some main contacts are equipped with arc extinguishing devices, and some do not have arc extinguishing devices. The DC contactor is mainly used to connect and disconnect the load in the DC circuit remotely.
