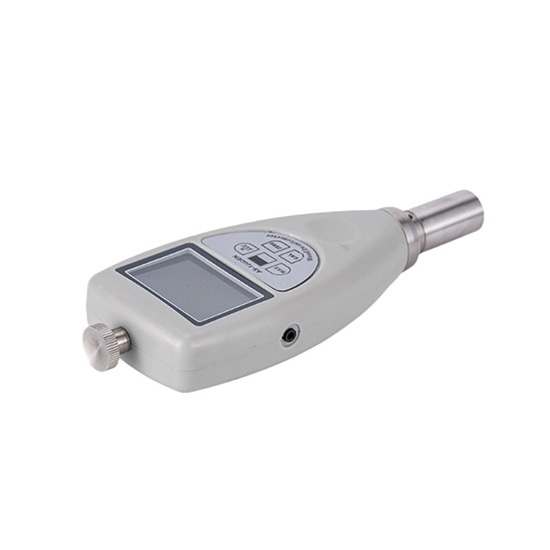

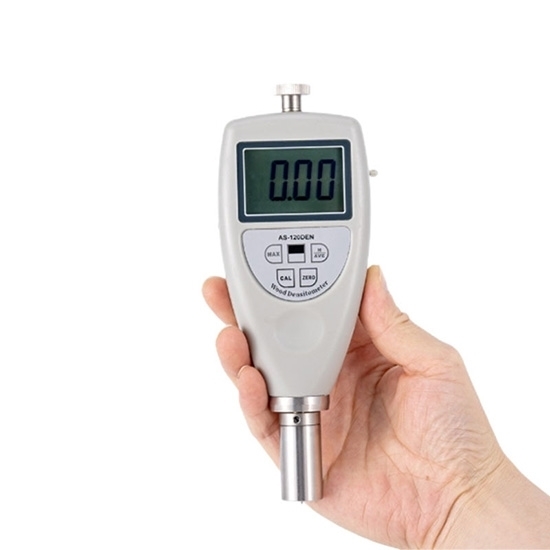

Digital Wood Density Meter, 0.01g/cm³-1.2g/cm³

0 reviews • Write a review

from

$908.92

Ex Tax: $908.92

Stock: In Stock
Model: RDDLZ-DENSITY-120DEN
Weight: 1.00
SKU: RDDLZ-DENSITY-120DEN

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The density meter obtains the density value of wood through the indentation measurement principle and is widely used in wood testing, quality control and scientific research experiments, providing reliable data support.

Features

The wood density meter can automatically calculate the average value of multiple measurement results to improve the accuracy of the data.
The digital wood density meter can lock the current measurement value, which is convenient for users to view and record data.
When the battery voltage is too low, the wood density meter will issue a warning to ensure that the measurement process is not affected.
It uses USB data line output and RS-232 data line output to communicate with the PC, which is convenient for data analysis and processing.

Specification

Model	RDDLZ-AS-120DEN
Accuracy	≤±0.01g/cm³
Display parameters	Hardness value/average value/* * value
Measurement unit	g/cm³
Measuring range	0.01g/cm³~1.2g/cm³
Resolution	0.01g/cm³
Low voltage prompt	✓
Auto power off	✓
Work environment	Temperature: 0℃~50℃, Humidity: ＜80%RH
Power supply	2* AAA batteries
Dimensions	176mm×65mm×27mm
Weight	170g (without battery)

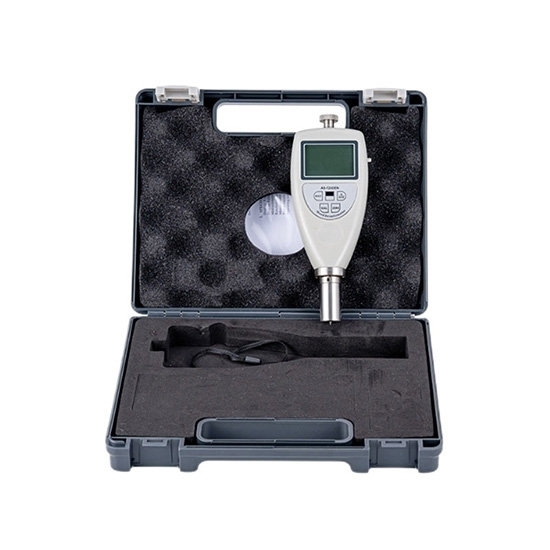

Standard configuration	Host machine
	Convenient hand box (B04)
	Instruction manual
Optional selection	RS232C Communication cables and software

Tip: What is an indentation density meter?

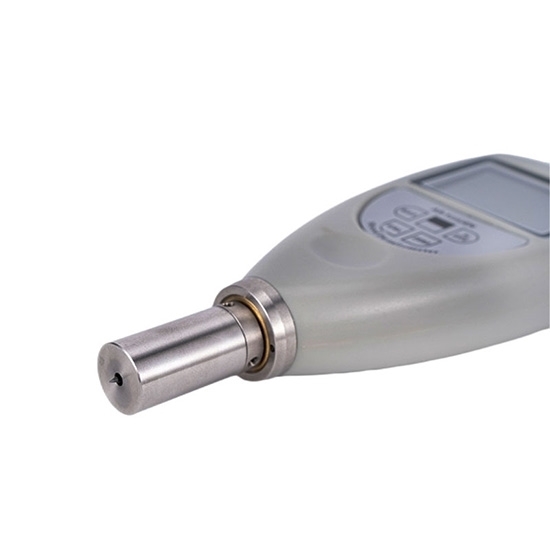

An indentation density meter is an instrument that calculates the density of a material by measuring the indentation depth or deformation produced by the material after being compressed. For wood density measurement, it usually uses a probe or indenter of a specific shape to apply a certain pressure to the wood, and according to the change in the depth, area or volume of the indentation, combined with a known calculation formula or calibration curve, the density value of the wood is obtained. This method is easy to operate and suitable for rapid detection of the density of different woods. It is widely used in wood processing, furniture manufacturing, scientific research experiments and quality control.
