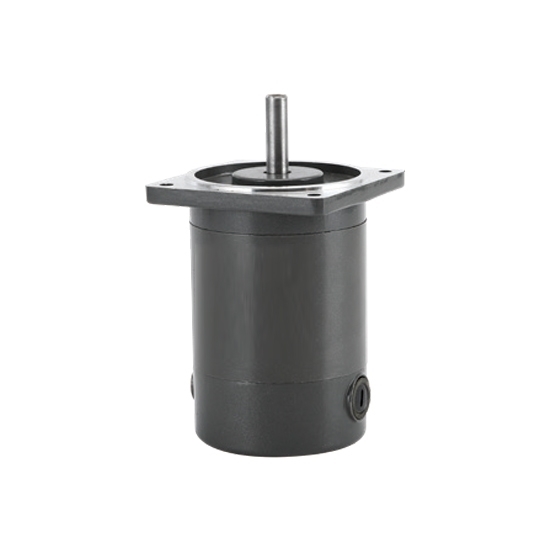

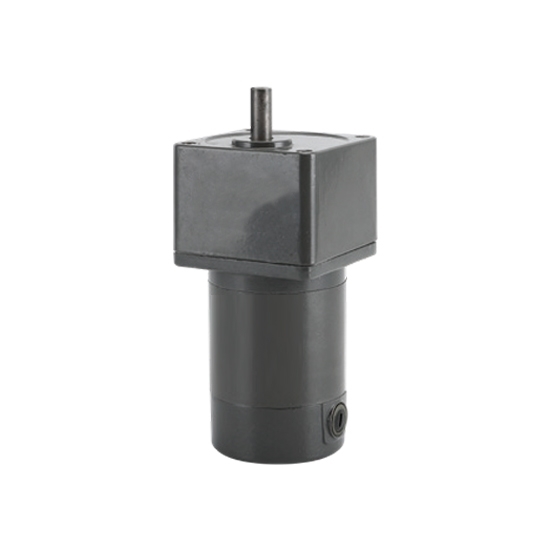

40 W DC Gear Motor, 1800 Rpm, 12V/24V

0 reviews • Write a review

from

$151.85

Ex Tax: $151.85

Stock: In Stock
Model: RDDLZ-BLDC-40
Weight: 1.00
SKU: RDDLZ-BLDC-40

Available Options

Short Description

Gear Ratio

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12V/24V DC gear motor manufacturer direct sale. This small DC motor with a gearbox offers 40W power, 1800 rpm speed/min, 2.2 N.m torque, and 5:1 to 18:1 gear ratio, can be used in copiers, medical equipment, advertising light boxes, and more.

Specifications

Model	RDDLZ-DM09-12-40-1800	RDDLZ-DM09-24-40-1800
Power	40W
Voltage	12V	24V
Speed/min	1800 rpm
Current	4.4A	2.2A
Starting Torque	2.2 N.m	2.2 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: How to choose the gear ratio of a 40W DC gear motor?

Low gear ratios (5:1, 7.5:1)
DC gear motor provides a higher output speed but lower torque. It is suitable for light-load and fast-moving applications such as small fans or toy cars.
Medium gear ratios (10:1, 12.5:1)
DC gear motor offers a balance of speed and torque. It is commonly used in robot wheels, automatic curtains, or devices that require steady motion with a moderate load.
High gear ratios (15:1, 18:1)
DC gear motor delivers lower output speed but higher torque. It is ideal for heavy-load or force-demanding applications such as door locks, lifting mechanisms, or screw drives.
