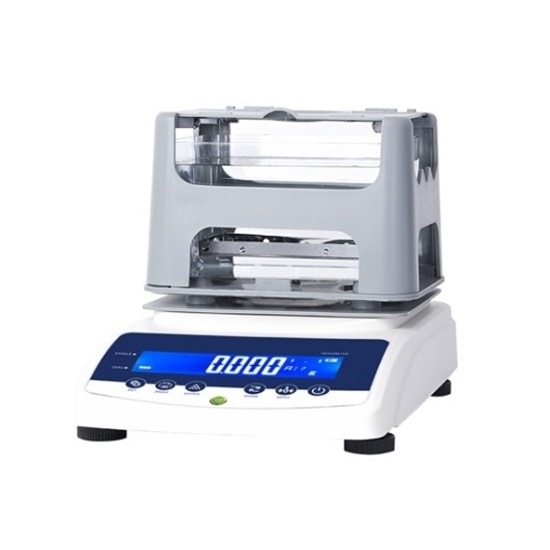

Benchtop Solid Density Meter For Glass/Rubber/Foam, 0.001g/cm³

0 reviews • Write a review

from

$747.95

Ex Tax: $747.95

Stock: In Stock
Model: RDDLZ-DENSITY-SJG
Weight: 1.00
SKU: RDDLZ-DENSITY-SJG

Available Options

Short Description

Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The benchtop solid density meter uses a large LCD screen display, which is intuitive and convenient to operate. It is widely used in rubber and plastics, wires and cables, composite materials, cosmetics, glass, hardware and other industries

Features

Benchtop solid density meter has a wide range of applications and can measure irregular solid materials such as blocks, particles, films and floating objects.
The solid density meter has a precise compensation function and provides four compensation settings-water temperature adjustment, measurement medium density, waterproof medium treatment, and density upper and lower limit settings.
It supports a wide range of density and can test solid density >1 or <1 to meet the testing needs of different materials.
The solid density meter provides flexible parameter settings and supports two parameter settings: solid density and density upper and lower limits, which is convenient for testing.
The digital solid density meter supports convenient data output and is equipped with an RS-232 interface, which can be connected to a printer or PC for convenient data management and recording.
It adopts a clear display design and is equipped with a large LCD backlight display, making data reading clear and intuitive.

Specification

Model	RDDLZ-SJ-300G	RDDLZ-SJ-600G
Operation mode	Button operation
Weighing range	0.01-300g	0.01-600g
Density accuracy	0.001g/cm³
Measuring time	About 5 seconds
Test types	Irregular solid materials can be measured, such as: blocks, particles, films, floating bodies, etc.
Density range	Density >1, <1 can be tested
Display value	Non-absorbent products: density, volume, volume percentage.
	Absorbent products: apparent density, bulk density, wet density, total porosity, effective porosity, open pore volume, total volume, water absorption rate.
Measuring principle	Archimedean principle
Output port	RS-232 interface
Power supply	Internal battery

Details

Accessories

Applications

Tips: Maintenance of solid density meter

Wipe the housing and test platform of the density meter with a soft cloth regularly to prevent dust and debris from affecting the measurement accuracy.
Avoid pressing or hitting the sensor hard to prevent damage or loss of accuracy.
Check the test platform regularly for wear or looseness, and tighten or replace it if necessary.
Calibrate the density meter regularly according to the instructions to ensure measurement accuracy. If there is a measurement deviation or error beyond the allowable range, recalibrate it in time.
Check the connection port regularly to ensure a stable connection to avoid data transmission interruption.
Confirm that the power supply voltage and the socket are in good contact to avoid equipment damage due to unstable voltage.
