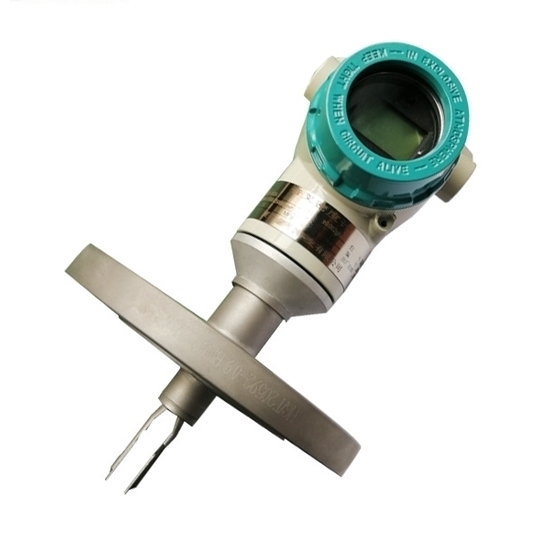

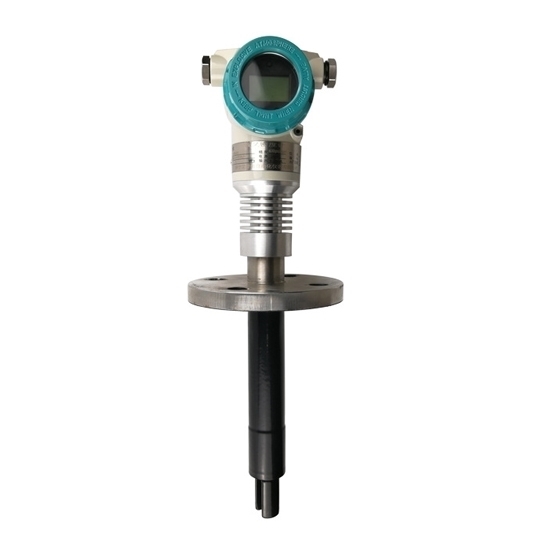

Digital Tuning Fork Density Meter For Liquids

0 reviews • Write a review

from

$2,953.99

Ex Tax: $2,953.99

Stock: In Stock
Model: RDDLZ-DENSITY-LI
Weight: 1.00
SKU: RDDLZ-DENSITY-LI

Available Options

Short Description

Working Pressure

Connection Type

Electrical Connection

Wetted Material

Medium Temperature

Measuring Medium

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price digital tuning fork density meter is mainly composed of a transmitter, a vibrating fork body and a temperature measuring element, which can be used for measuring LiOH solution, sulfuric acid solution, lime slurry, NH3·nH2O, and urea ammonium nitrate solution.

Specification

Model: RDDLZ-APX301-LI
Measuring Medium (Optional): LiOH Solution, Sulfuric Acid Solution, Lime Slurry, NH₃·nH₂O, Urea Ammonium Nitrate Solution
Measuring Range: 0 – 2.5 g/cc (0 – 2500 kg/m³), 0~100.0%
Calibration Range: 0 – 2.5 g/cc (0 – 2500 kg/m³), 0~100.0%
Measurement Accuracy: ± 0.002 g/cc (± 2 kg/m³), ±0.5%
Repeatability: ± 0.001 g/cc (± 0.2 kg/m³) ±0.1%
Medium Temperature Range: -50℃ ~ +150℃
Working Pressure (Optional): 0.2~0.3MPa, Max. Pressure ≤4MPa
Fluid Viscosity Range: 0 – 600Cp
Media Temperature (Optional): 0~100℃, 0~150℃
Temperature Coefficient: ＜0.1 kg/m³/℃ (± 0.5%) After Correction
Stress Effect: Negligible
Built-in Temperature Sensor: Digital Sensor
Wetted Material (Optional): 316 Stainless Steel, 316 Stainless Steel + PTFE, 316 Stainless Steel +PFA, 2205 Stainless Steel, Hastelloy Alloy C276, Titanium Alloy
Electrical Connection (Optional): M20*1.5, G1/2, NPT1/2
Connection Type (Optional): G1/2” Thread, DN50 Flanged, DN80 Flanged, 1/2” Trip Clamp, 2” Trip Clamp
Fork Body Coating: Standard PTFE or PFA
Power Supply: 24VDC, ≥50mA
Analog Signal Output: 4-20mA, 0-1000Hz, RS485 Modbus, 4 Wires
Output Accuracy (20℃): ± 0.1% of reading or ± 0.05% FS
Output repeatability (-40~+85℃): ± 0.05% FS
Protection Level: IP65
Explosion-Proof: Ex d Ⅱ C T6 Gb
Shell: Aluminum Alloy

Dimensions (Unit: mm)

Wiring diagram

Tips: What are the factors that cause the measurement error of the tuning fork density meter?

Temperature: Temperature will affect the elastic modulus of the resonant element and other mechanical structures such as length and thickness changes.
Liquid flow: Due to the frictional force of liquid flow, the pipe wall is subjected to shear force, which will affect the change of resonance frequency.
Dirt pollution: If there is dirt inside, it will inevitably change the resonance period.
