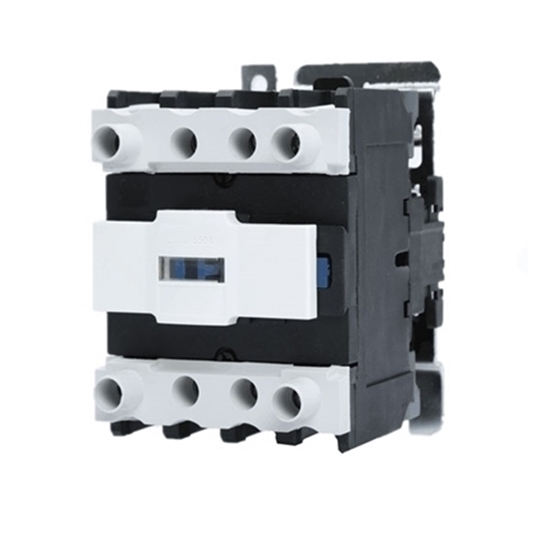

80 Amps 4 Pole AC Contactor 24V/110V/220V Coil

0 reviews • Write a review

from

$148.46

Ex Tax: $148.46

Stock: In Stock
Model: RDDLZ-ACCON-080
Weight: 1.00
SKU: RDDLZ-ACCON-080

Available Options

Short Description

Contact Form

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

80 Amps AC Contactor Features

The bypass AC contactor is suitable for using in the circuits up to the rated voltage 380V/660V AC 50Hz or 60Hz, rated current up to 80A, contactor for controlling, starting, breaking and reversing of the motor. Not only full set accessories but also more pretty.

80 Amps AC Contactor Specification

Model		RDDLZ-CJX2-80
Rated Operational Current (AC-3)	380V	80A
	660V	49A
Conventional Heating Current		110A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	22kW
	380V	37kW
	660V	45kW
Operational Frequency (AC-3)	Electric Life	600 times/h
	Mechanical Life	2400 times/h
Service Life	Electric Life (10⁴ times)	60
	Mechanical Life (10⁴ times)	600
Matching Fusing Model		RT16-100
Average Power Consumption (20℃) @ 50Hz	Pick-up	230VA
	Holding	32VA
Unit weught(kg)	4P (4N/O)	1.59
	4P (2N/O+2N/C)	1.65
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Rail Size		75mm
Class of Pollution		Class 3
Installation Category		Ⅲ

80 Amps AC Contactor Dimensions

4P (4NO) AC contactor

4P (2NO+2NC) AC contactor

Tips: Classification of AC contactors

According to the number of poles of the main contact, it can be divided into single-pole, bipolar, three-pole, four-pole and five-pole contactors. Monopole is mainly used for single-phase load. Bipolar is used in the rotor circuit of wound-type asynchronous motor. Three-pole is used for three-phase load and is most widely used. Four-pole is mainly used for three-phase four-wire lighting circuit. Extremely used to form an auto-compensation starter or to control a double-cage motor.
According to the arc extinguishing medium, it can be divided into air contactor, vacuum contactor and the like. Contactors that rely on air insulation are used for general loads, while contactors that use vacuum insulation are commonly used in coal mines, petroleum, chemical companies, etc.
According to the presence or absence of contact points, it can be divided into contact contactors and contactless contactors. Common contactors are mostly contact contactors, and contactless contactors are the product of electronic technology applications, generally using thyristors as the switching elements of the circuit.
