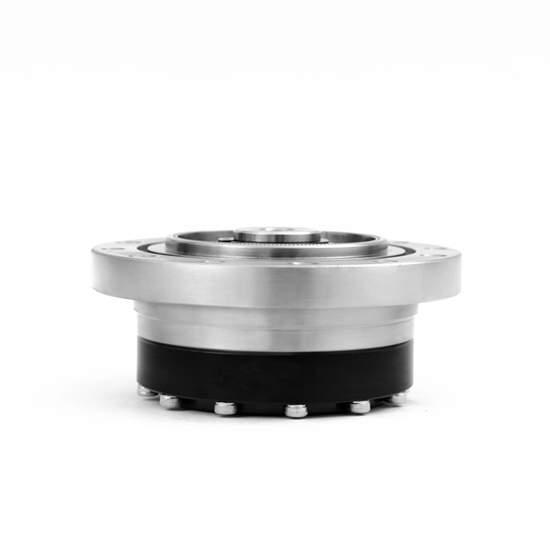

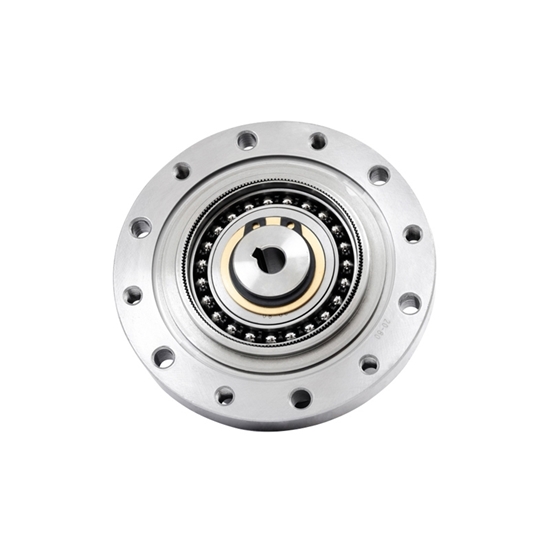

93 Mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

0 reviews • Write a review

from

$541.19

Ex Tax: $541.19

Stock: In Stock
Model: RDDLZ-HD-93
Weight: 1.00
SKU: RDDLZ-HD-93

Available Options

Short Description

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a high torque harmonic drive gearbox online. 93 mm harmonic reducer provides high transmission accuracy and supports a high reduction ratio with low inertia. Gear ratios of the strain wave gearbox are 30/50/80/100, widely used for industrial robots, CNC equipment, medical instruments, and the military industry.

Features

It is a strain wave harmonic drive gearbox with high rigidity, no gear backlash and coaxial input and output.
The gearbox features excellent positioning accuracy and rotation accuracy.
Harmonic reducer with a high torque capacity and a high gear ratio is available.
93 mm strain wave gearbox is designed for robots.

Specifications

Model: RDDLZ-CSF-20-I
Type: Self-aligning
Diameter: 93 mm
Thickness: 52 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80	100
Rated torque when input 2000r/min (N.m)	27	29	63	67
Allowable peak torque at start and stop (N.m)	50	98	137	157
Maximum allowable average load torque (N.m)	38	55	87	108
Momentary allowable maximum torque (N.m)	95	186	255	304
Allowable maximum input speed (r/min)	5500
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤20	≤10	≤10

Dimensions (unit: mm)

Harmonic Drive Gearbox Applications

RDDLZ harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Tips: Causes of Bearing Damage in Harmonic Drive Gearbox

If the cavity is not cleaned or the added grease is not clean, the wear, vibration and noise of the bearing will be increased, and the bearing raceway of the harmonic drive gearbox will be damaged, resulting in excessive temperature rise and burning of the bearing.
Because the temperature rise of the motor body is too high, and the bearing is not replenished with grease in time, the bearing is short of oil or even burned. The mixed-use of different greases will also cause damage to the harmonic reducer bearings.
The bearing of the harmonic drive gearbox is improperly assembled, and the inner ring of the bearing is knocked unevenly during cold assembly to wear the shaft.
If the strain wave harmonic drive gearbox does not run for a long time, the grease will deteriorate and the bearing will rust without timely maintenance.
Harmonic reducer bearings are affected by additional loads.
