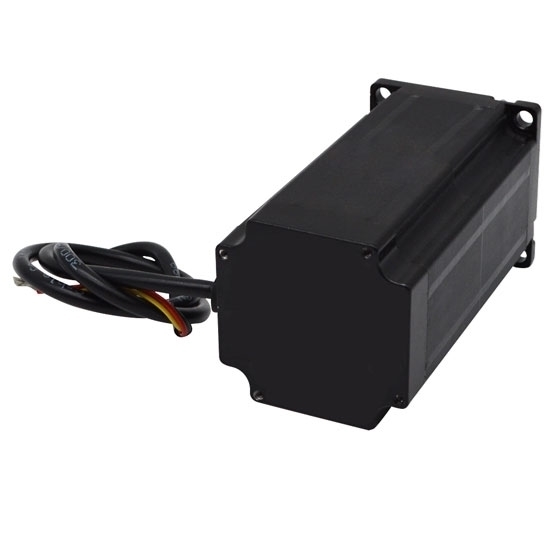

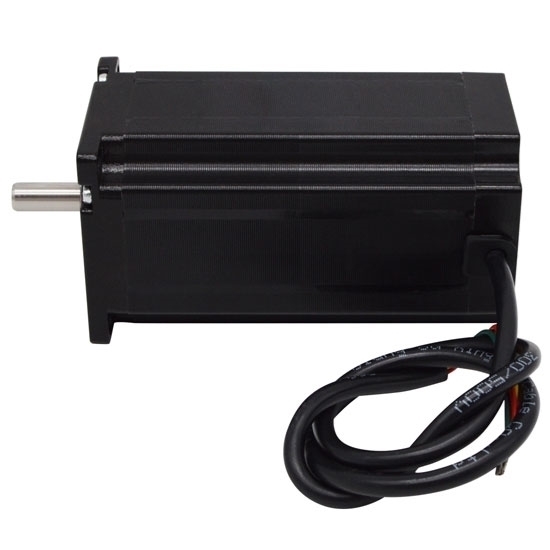

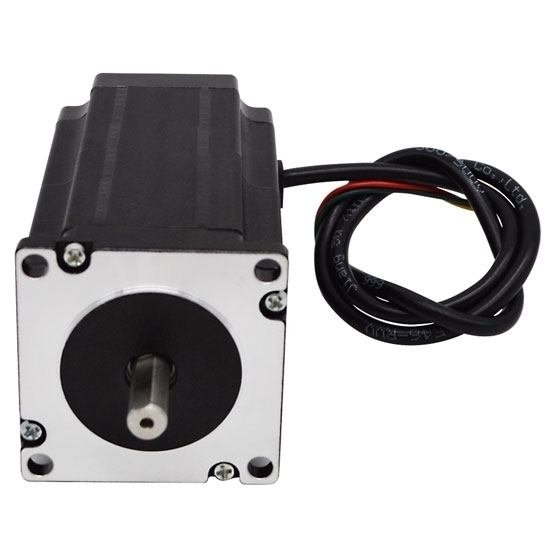

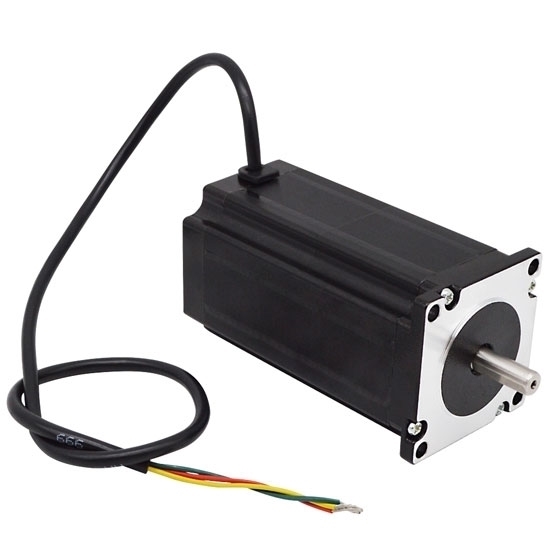

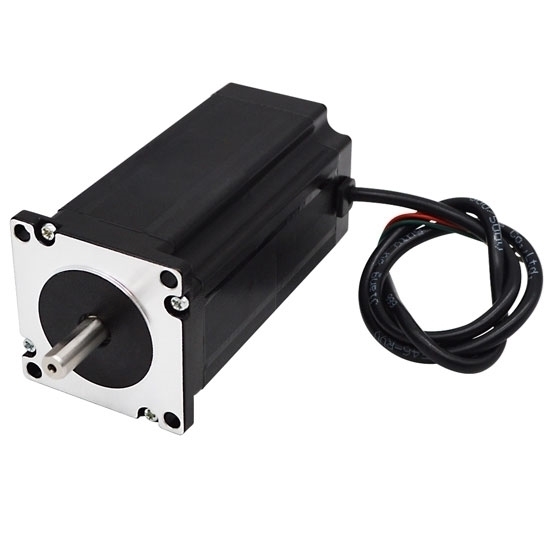

Nema 23 Stepper Motor, 3 Phase, 5.8A, 2.5N·m

0 reviews • Write a review

from

$120.95

Ex Tax: $120.95

Stock: In Stock
Model: RDDLZ-STEP-23C580
Weight: 1.00
SKU: RDDLZ-STEP-23C580

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 phase bipolar stepper motor with 3 lead wires is convenient to adjust the speed, long service life and low maintenance cost. This hybrid stepper motor with 8mm shaft, is used in 3D printer, CNC machine, drawing equipment, sewing machine and robot arm.

Physical Specification

Model Number: RDDLZ-FY56TC580A
Flanged Size: 57 x 57mm (Nema 23)
Motor Length: 106mm
Shaft Diameter: 8mm
Number of Leads: 3 wire
Weight: 1.8kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 5.8A
Holding Torque: 2.5 N·m (250 N·cm, 354 Oz.in)
Phase Resistance: 0.57Ω
Phase Inductance: 1.2mH
Rotor Inertia: 720g·cm²

Dimensions (Unit: mm)

L=106mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: Nema 23 stepper motor troubleshooting

Faults	Reasons	Solutions
Loss step	The signal is interfered. The shielding wire is not connected or not connected properly. Incorrect subdivision settings. The current is too small.	Eliminate interference. Ensure that the shielded wire is reliably grounded. Adjust the subdivision settings correctly. Increase the current.
Motor stalled	The acceleration time is too short. Motor torque is too small. Low electro-hydraulic or low current.	Increase acceleration time. Choose a motor with a large torque. Properly increase the voltage or current.
Alarm heat indicator light is on	The voltage is too high or too low. The driver was damaged.	Check the power supply and adjust the voltage appropriately. Replace the damaged driver.
