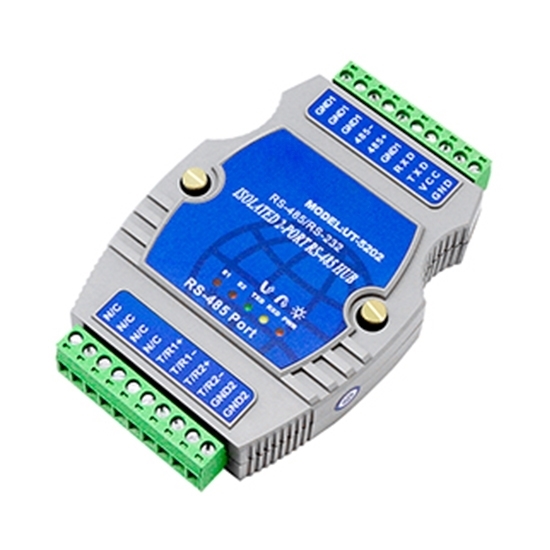

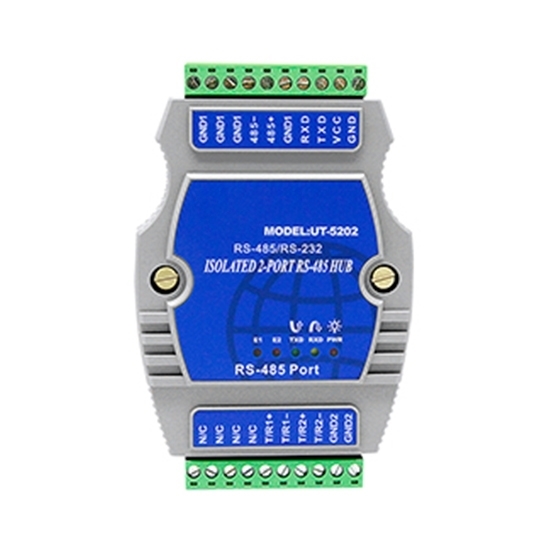

RS-232/ RS-485 To RS-485 Hub, 2 Ports

0 reviews • Write a review

from

$165.40

Ex Tax: $165.40

Stock: In Stock
Model: RDDLZ-UT-5202
Weight: 1.00
SKU: RDDLZ-UT-5202

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price RS-232/ RS-485 to RS-485 hub with 2-ports, RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection, 300bps-115.2kbps baud rate.

Specification

Model	RDDLZ-UT-5202
Standards	RS-232C, RS-485 EIA/ TIA
Interface	RS-232C: 10-pin terminal block; RS-485: 10-pin terminal block
Transmission media	Twisted-pair or shielded wire
Working mode	Asynchronous half-duplex
Operating power	9-30VDC/ 150mA
Isolation	2500VRMS/ 500DC continuous isolated vlotage, DC/ DC module
Baud rate	300bps-115.2kbps
Protection	RS-232 ±15KV ESD protection, RS-485 each wire 600W lightning surge protection
Transmission distance	0-5000m (115200-300bps)
Dimension	120mm80mm25mm
Operating temperature	-40℃ to 85℃
Relative humidity	5% to 95%
Certificates	RoHS, CE, FC
Warranty	12 months

Dimension (mm/ inch)

Tips: What is a Hub?

A hub is a device that connects multiple Ethernet twisted pairs or optical fibers together under the same physical medium. The hub is the physical layer operating in the OSI model. It can be regarded as a multi-port repeater, if it detects a collision, it will submit a blocking signal.
Since the hub will regenerate or amplify any digital signal received, and then submit it from all ports of the hub, this will cause a great chance of collision between signals, and the signal may also be eavesdropped, and this means that all connected to the hub All of the devices belong to the same collision domain name and broadcast domain name, so most hubs have been replaced by switches.
