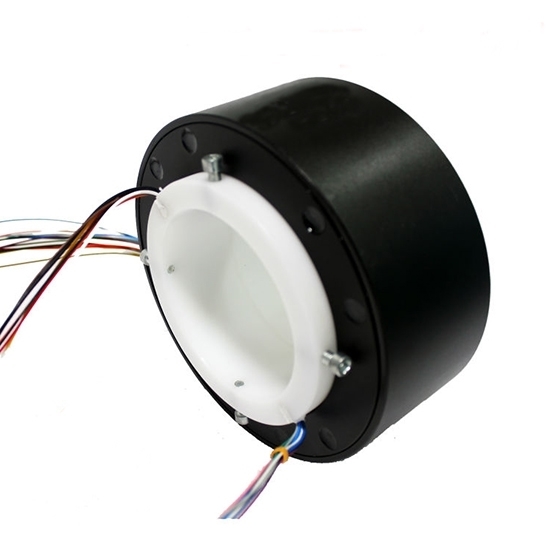

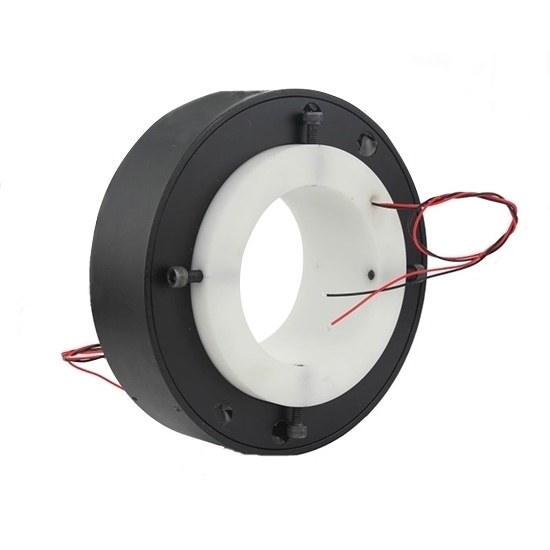

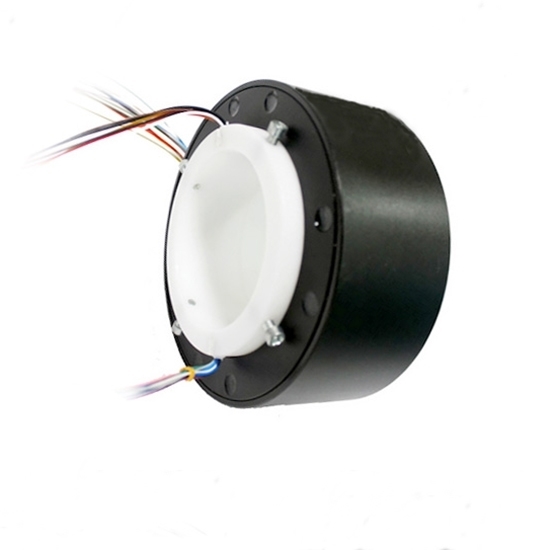

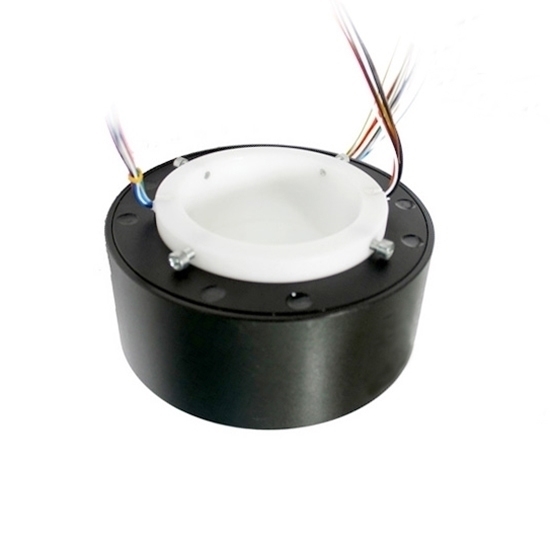

Hole Diameter 100mm Through Bore Slip Ring, Outer Diameter 185mm

0 reviews • Write a review

from

$696.92

Ex Tax: $696.92

Stock: In Stock
Model: RDDLZ-THSR-100185
Weight: 1.00
SKU: RDDLZ-THSR-100185

Available Options

Number of 10A Circuits

Rotating Speed Grade

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Various specifications such as circuits number, current, signal, inner and outer diameter, rotating speed, lead wire length, etc. are customizable according to requirements, please contact us.

Applications: Automatic welding equipment, metal surface processing equipment, static torque sensors, pressure sensors, wire (network cable) cable production equipment, grinding and dispersing machines, electronic (textile) quality testing equipment, etc., industrial and civil devices that require conductive or transmit signals in rotation.

Specification

Model	RDDLZ-H100185
Hole Diameter	100mm
Outer Diameter	185mm
Working Life	pls refer to product grade table
Rotating Speed	pls refer to product grade table
Working Temp.	-30℃~80℃
Work Humidity	0~85% RH
Contact Material	pls refer to product grade table
Housing Material	AL alloy
Torque	0.1N.m (+0.03N.m/6 circuits)
Rated Voltage	Power	Signal
	0~690VAC/VDC	0~440VAC/VDC
Insulation Resistance	Power	Signal
	≥1000mΩ/500VDC	≥1000mΩ/500VDC
Lead Wire Spec.	Power	Signal
	AWG17# Silver-plated teflon	AWG22# Silver-plated teflon
Lead Wire Length	standard 300mm (can be customized)
Dielectric Strength	800VAC@50Hz,60s
Electrical Noise	<0.01Ω
Certification	CE, RoHS
IP Grade	IP51

Note: Please contact us if you need the flange

100mm Hole Diameter/185mm Outer Diameter Through Bore Slip Ring Dimension Drawing (unit:mm)

Note: The length L please refer to standard model list.

Product Grade Table

Grade code	Max rotating speed	Working life	Contact material
C: standard	250rpm	20 millisons revolutions	precious metal
D: industrial	800rpm	60 millions revolutions	precious metal
H: high quality	1200rpm	150 millisons revolutions	gold alloy

Color Code of Lead Wire

ring #	1	2	3	4	5	6	7	8	9	10	11	12
color	BLK	BLK	RED	RED	YEL	GRN	BLU	PUR	GRY	WHT	PINK	LGT BLU
ring #	13	14	15	16	17	18	19	20	21	22	23	24
color	WHT/BLK	WHT/BRN	WHT/RED	WHT/ORG	WHT/YEL	WHT/GRN	WHT/BLU	WHT/PUR	WHT/GRY	BLK/RED	BLK/BRN	Transparent

Note: The digital 1 indicates the first wire from rotor side, RDDLZ-THSR-H100185 wire color sequence: BLK/BRN/RED/ORG/WHT/GRN, 24 color wires as one group, if more than 24wires, repeat as sequence, use number tube to tell group 1#, 2#....

Through Bore Slip Ring with Anti-Rotation Tab Installation Diagram

Through Bore Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: Electrical slip ring application in Ethernet signals transmission.

Electrical slip rings can transmit Ethernet signals. The Ethernet slip ring is also known as the network cable slip ring. It is a slip ring that can rotate 360° and transmit Ethernet signals, enabling LAN communication to transmit 250Mhz frequency signals. According to different transmission network speeds, Ethernet slip rings can be divided into 100M Ethernet slip rings and Gigabit Ethernet slip rings.

The Ethernet slip ring works like an electrical slip ring, it is a process of transmitting Ethernet signals and current between the rotating part (rotor) and the fixed part (stator). The Ethernet slip ring transmits Ethernet signals based on the electrical slip ring. The passages between rotor and stator are independent. In addition, it can also mix transmit high and low frequency signals and currents.
Ethernet slip ring features:

Can mix transmit power, current, data and other signals, and can work together with gas/liquid/electric rotary joints.
Can transport Ethernet 10M or 100M or 1000M Base T. Can transport 8 Ethernet channels simultaneously.
Can transmit different types of signals such as USB, HDMI, and fiber.
No packet loss, no serialization, low loss, high performance stability, long working life.

The Ethernet slip ring is suitable for electromechanical devices that transmit electricity without any restrictions and transmit various data signals and currents. It is widely used in video surveillance systems, network cable, serial communication and other fields.
