Magnetic Angle Sensor, Non-Contact, 4-20mA/ 0-20mA

0 reviews • Write a review

from

$389.99

Ex Tax: $389.99

Stock: In Stock
Model: RDDLZ-AS-420
Weight: 1.00
SKU: RDDLZ-AS-420

Available Options

Short Description

Output Signal

Measuring Range

Precision

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

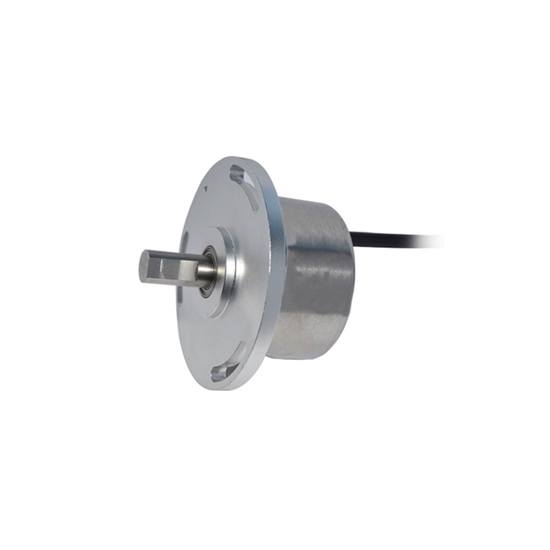

RDDLZ angle sensor is powered by 9V ~ 36V power supply, with reverse and anti-pulse peak voltage protection function, suitable for water, oil, gas, vibration, shock and other harsh industrial environment.

Specification

Model	RDDLZ-LW128B	RDDLZ-HW228B
Full Range Precision	±0.3°	±0.1°
Temperature Drift	±0.02°/°C
Zero Drift	4mA
Measuring Range	0~30°, 0~60°, 0~90°, 0~180°, 0~270°, 0~360° (Optional)
Output Signal	4-20mA, 2-20mA (Optional)
Output Load	240Ω
Voltage Input	9-6V DC
Typical Voltage	12V
Sampling Frequency	1KHz
Linearity	0.5%-0.15%
High Vibration Resistance	>20000g
Frequency Response	100Hz
Angle Resolution	0.022°
Full Range Accuracy	±0.3°
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+100°C
Power-on Startup Time	0.2s
Response Time	0.01s
Average Operation Time	≥55000 Hour/Time

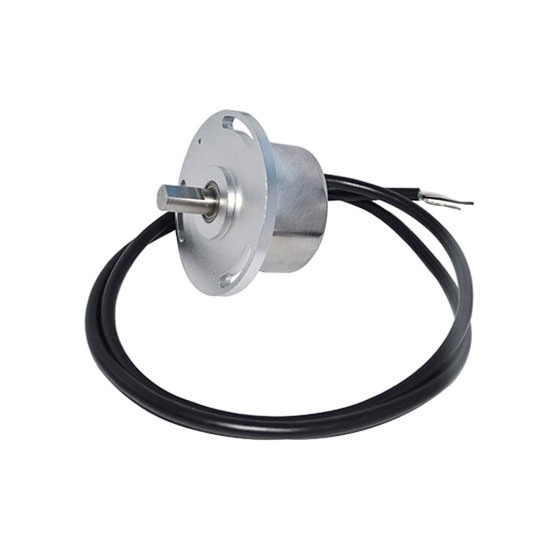

Cable	with 1.5m length shielded cable 3*0.3mm2
Power Reverse Protection	40mV
Signal Reverse Protection	40mV
Running Torque	<10mN·m
Material	Shell: Aluminum alloy oxidation Back Cover: Stainless steel Shaft: Stainless steel
Protection Grade	IP66
Weight	1kg

Dimensions (Unit: mm)

Wiring Diagram

Red	Black	Green
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Installation Methods

Angle Measuring Chart

Applications

Tips: Angle sensor applications

Industrial machinery, construction equipment, petrochemical equipment, medical equipment, aerospace instruments, national defense industry and other rotating speed and Angle measurement.
Automotive electronic foot pedal angular displacement, steering wheel position, seat position and headlight position.
Automatic robot, motion control, rotary motor rotation and control.
