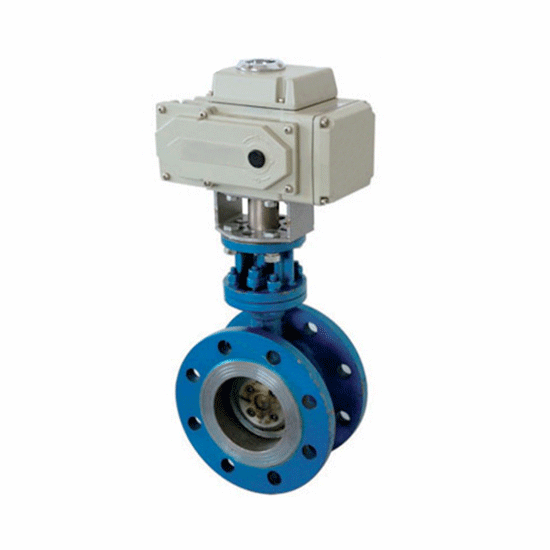

16" Electric Flanged Butterfly Valve

Free Shipping

16" Electric Flanged Butterfly Valve

0 reviews • Write a review

from

$6,485.19

Ex Tax: $6,485.19

Stock: In Stock
Model: RDDLZ-EBV-400WF
Weight: 1.00
SKU: RDDLZ-EBV-400WF

Available Options

Short Description

Power Supply

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Industrial electric actuated flanged butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-400WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Flanged Type
	Port Size	16 inch (DN400, 400mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-200
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 120V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	2000N.m, 100s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	D	D1	D2	T	A	H	N-φd
400	216	585	515	484	32	280	580	16-26

Details

Tips: What is an electric actuated butterfly valve?

The electric actuated butterfly valve is an important execution unit in the field of industrial automation control. The electric actuated butterfly valve is composed of an angular stroke electric actuator (0~90° partial rotation) and the butterfly valve as a whole through mechanical connection, which are jointly composed after installation and debugging. The electric butterfly valve has the characteristics of simple structure, small size, light weight, low material consumption, small installation size, rapid switching, 90° reciprocating rotation, small driving torque, etc. It is used to cut off, connect, and adjust the medium in the pipeline. It has good fluid control characteristics and shut-off sealing performance.
