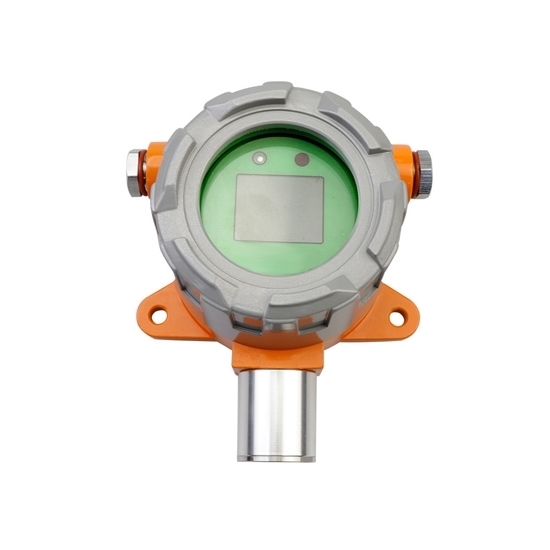

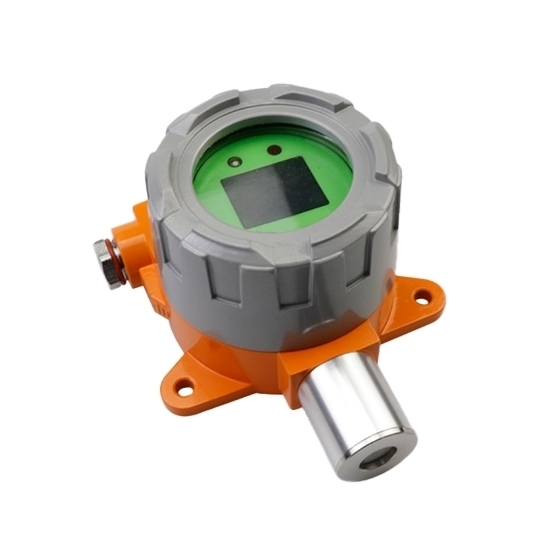

Explosion-Proof Methane (CH4) Gas Detector, 0-100/1000ppm

0 reviews • Write a review

from

$372.22

Ex Tax: $372.22

Stock: In Stock
Model: GD400-CH4
Weight: 1.00
SKU: GD400-CH4

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This explosion-proof methane gas detector offers high sensitivity and stable signal output, ensuring precise detection across a broad measurement range. With an operating temperature range of -30~+50°C (-20~+40°C continuous) and a response time of less than 15 seconds, it is well-suited for continuous and harsh industrial environments.

Features

Modular structure for easy maintenance and simple wiring installation.
High-sensitivity gas detection probe with stable signal and high accuracy.
Finely designed structure that is waterproof and dustproof.
Wide measurement range, suitable for industrial gas detection.

Specification

Model	RDDLZ-FST100-G109
Measurement Range	0-100ppm / 0-1000ppm
Measurement Method	Electrochemical
Power Supply	12-24VDC
Signal Output	4-20mA, 0-5V, 0-10V, RS485
Baud Rate (RS485)	2400, 4800, 9600
CH Accuracy	±3% of the reading
Power Consumption	<1W
Respond Time	<15s
Operating Temperature	-30℃~+50℃ (-20℃~+40℃ continuous)
Operating Humidity	15~95%RH (non-condensing)
Protecting Rating	IP65
Explosion Proof Marking	ExdIICT6

Dimension (unit: mm)

Connection

Application

Tips：How does the explosion-proof CH4 gas sensor ensure safety in hazardous environments?

The sensor is designed with ExdIICT6 certification, ensuring it operates safely in explosive atmospheres with methane, providing reliable protection against potential risks. Exd is an indicator of the explosion-proof rating, where “II” refers to a gas environment, “C” indicates it is for use in coal mines, and “T6” signifies that the surface temperature of the sensor will not exceed 85°C (in accordance with IEC 60079-0 standard), allowing it to be used in explosive environments with methane and coal dust.
