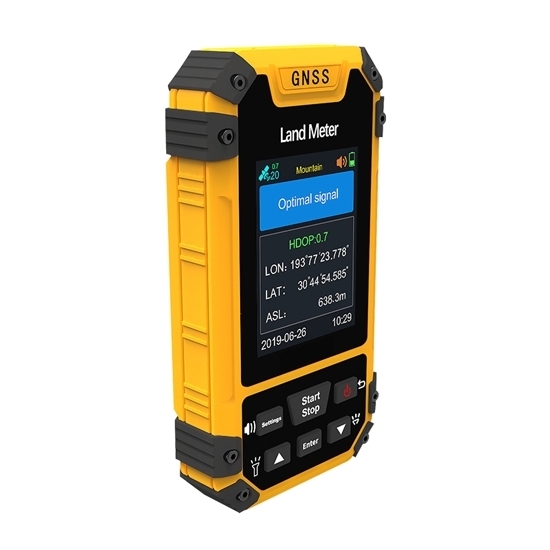

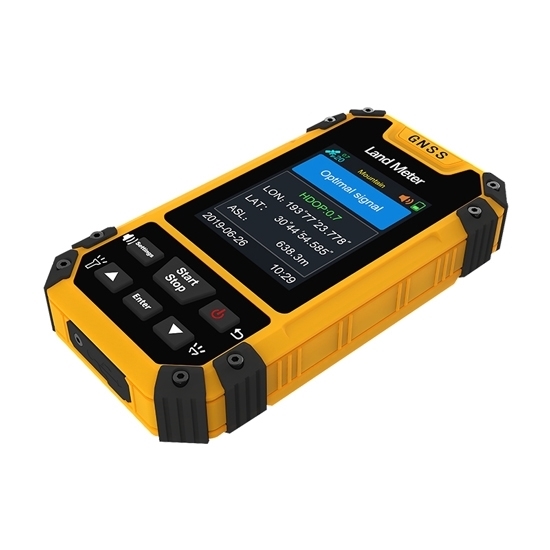

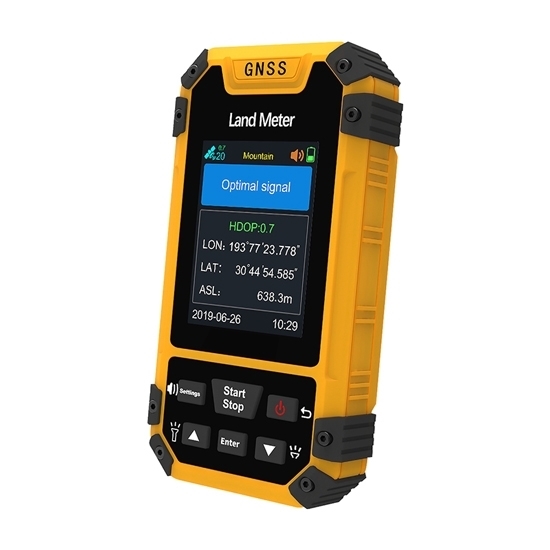

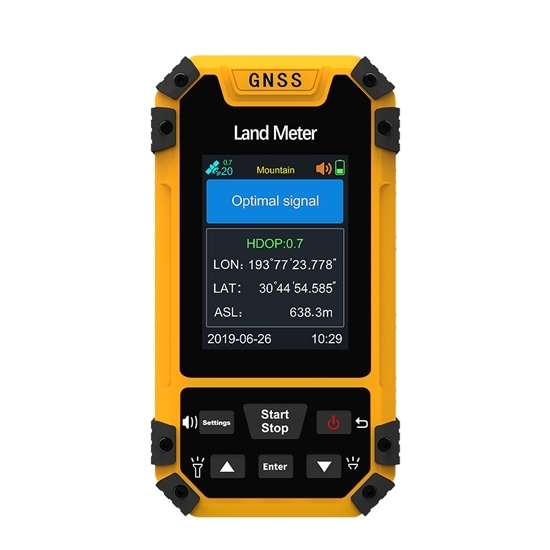

GPS GNSS Land Meter For Land Surveying

GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
GPS GNSS Land Meter For Land Surveying
from
$289.76
Ex Tax: $289.76
  • Stock: In Stock
  • Model: RDDLZ-LM-GNSS4
  • Weight: 1.00
  • SKU: RDDLZ-LM-GNSS4

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

GPS land surveying equipment for sale, land meter with built-in high precision GNSS chip, supporting GRS/BDS/GLONASS/GALILEO/SBAS satellite systems. The 2000mAh large capacity lithium battery can record 99 measurement records, allowing you to view the measurement data anytime and anywhere. With its waterproof and dustproof construction and easy-to-use interface, the land meter is widely used in construction, engineering, environmental testing, and agriculture.

Specification

ModelRDDLZ-LM-S4
Built-in ChipHigh sensitivity GNSS receiver chip
SystemMicrocontroller system
Satellite System SupportGPS/BDS/GLONASS/GALILE0/SBAS Positioning type: GPS+BDS/GPS+BDS+SBAS
Prompt ToneVoice Broadcast
LCD Screen Display TypeTFT color screen
Resolution320*240
Barometer Sensor
Photosensitive Sensor
Area Record199
Distance Recording199
Waypoint Recording/
Water and Dust ResistantIP65
Drop Resistance1.5m Hard surface drop resistance
Operating Temperature-20°C ~ +65°C
Storage Temperature-40°C ~ +75°C
Power Supply TypeLithium battery, AA dry battery, vehicle power supply
Li-ion Battery Capacity2000mha
Working Time25 hours (normal brightness, normal area working mode)
Input VoltageDC 3.8V-6V
Input CurrentDC 0. 5A-2A
Antenna TypeHigh sensitivity flat panel antenna
Positioning Time1 Second for hot start, 30 seconds for cold start
Update Rate1HZ
Positioning Accuracy2.5m(when HDOP is below 1.0),1m(when connected to SBAS)
Area Accuracy0.03mu (1 ~ 3mu), 3% (more than 3mu) (when HDOP is below 1.0)
Distance Accuracy1m (100m range if HDOP is below 1.0)
Accuracy1m (barometer measurement, absolute elevation measurement needs to be calibrated), 10m (GPS measurement, HDOP below 1.0)
Dimensions117*61*20mm
Weight120g (without battery)
Interface TypeMicro USB 2.0, can be used for charging


Features

  • The land area meter has 8 modes including normal mode, mountain mode, intelligent slope mode, long and wide mode, fixed width mode, fixed point mode, round trip on board and round trip on board.
  • Once the measurement is complete, the value is displayed, the graphical trajectory is displayed and the price is calculated automatically.
  • The land meter can save and record up to 100 historical data and graphical traces. You can look up, check and delete the history at any time.
  • The land surveying equipment allows you to set the unit price of the area, the unit price of the length, the conversion factors for acres and square meters and to set the automatic and manual measurement methods.
  • The GPS land meter can be connected to a PC to export and print data.
  • The land surveying machine has integrated auxiliary functions such as money detection, night vision lighting, and backlighting.

Details

Applications

A land meter, also known as land surveying equipment, they are used to measure distances, angles, and elevations, and is commonly used in construction, engineering, and mining industries to establish property boundaries, create topographical maps, and determine the position of underground utilities. Land meters are also used in scientific research and environmental monitoring to measure changes in the landscape and to study soil erosion, sedimentation, and other geologic processes. Additionally, they are used in agriculture to measure crop yields and monitor the health of crops.

Tips: What are the applications of the land meter?

A land meter, also known as land surveying equipment, is used in a variety of fields that require precise measurement and mapping of land. One common
application of land meters is in the construction industry, where they are used to measure and map out the boundaries of a construction site and ensure
that the building is constructed on the correct plot of land. Land meters are also used in civil engineering to design and construct roads, bridges, and
other infrastructure projects.

Another important application of land meters is in agriculture, where they are used to map out farmland and measure the topography of the land. This
information is then used to plan irrigation systems, soil conservation measures, and other farming practices. Land meters are also used in the
environmental sciences to map out wetlands, forests, and other natural areas.

Finally, land meters are used in the mining industry to survey the land and map out mineral deposits. This information is critical for planning mining
operations and ensuring that mining activities are carried out in a safe and sustainable manner. Overall, land meters play a critical role in a wide
range of industries that rely on precise land measurements and mapping.
