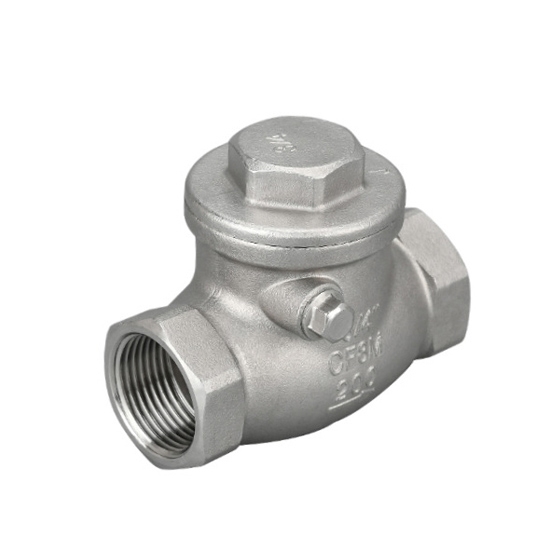

1-1/2" Stainless Steel Swing Check Valve, Horizontal

0 reviews • Write a review

from

$76.53

Ex Tax: $76.53

Stock: In Stock
Model: RDDLZ-SSSCV-112
Weight: 1.00
SKU: RDDLZ-SSSCV-112

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Horizontal swing check valve is used to regulate and control the flow of fluid through a pipeline while preventing backflow. 1-1/2" stainless steel swing check valve, DN40, 200 WOG, can transfer water, oil or gas and resist corrosion, high temperature and high pressure.

Specifications

Model: RDDLZ-H14W
Check Valve Type: Swing
Shape: Horizontal
Nominal Diameter: 1-1/2 inch (40mm)
Working Pressure: 200 WOG
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~300°C
Weight: 0.975kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	HANGGER PIN	SS304/SS316	1
4	JOINT GASKET	PTRE/RPTFE	1
5	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
40	37	115	67

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: Swing Check Valve Applications in the Chemical Industry

Swing check valves are widely used in the chemical industry due to their ability to prevent backflow and provide reliable flow control in corrosive and abrasive environments. Some common applications of swing check valves in the chemical industry include:

Chemical processing: Swing check valves are used to control the flow of chemicals through various stages of the production process, such as reactors, distillation columns, and storage tanks.
Petrochemicals: Swing check valves are used in petrochemical plants to control the flow of crude oil, natural gas, and other hydrocarbons during processing and storage.
Water treatment: Swing check valves are used in water treatment facilities to control the flow of water and prevent backflow.
Pharmaceutical manufacturing: Swing check valves are used in pharmaceutical manufacturing to control the flow of liquids and gases during production and processing.
Pulp and paper industry: Swing check valves are used in the pulp and paper industry to control the flow of chemicals, such as bleaching agents, through the production process.
