8 Hp Single Acting Axial Piston Pump

0 reviews • Write a review

from

$257.84

Ex Tax: $257.84

Stock: In Stock
Model: RDDLZ-PP-025MCY
Weight: 1.00
SKU: RDDLZ-PP-025MCY

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

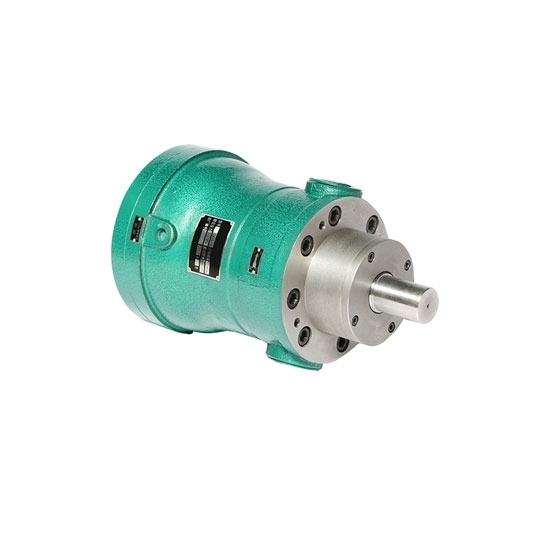

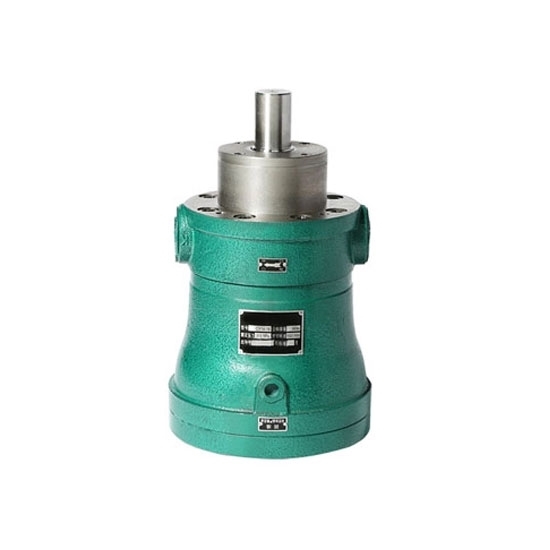

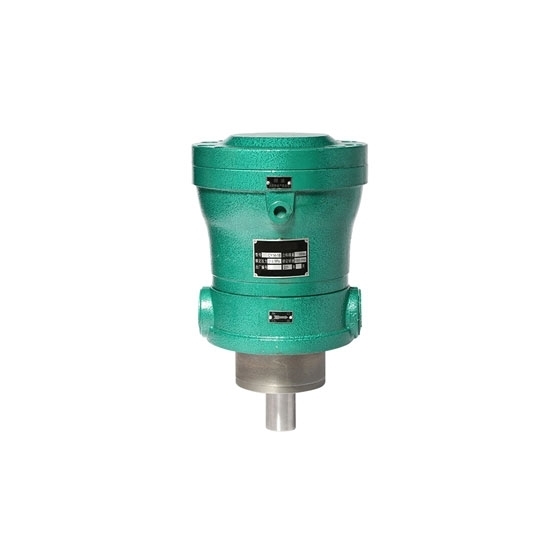

The quantitative axial piston pump is a single-acting axial piston pump with oil distribution plate and rotating cylinder, maximum driving power of 6 kW, smooth operation, featuring low noise and greatly improving work efficiency.

Specification

Model: RDDLZ-PP-025MCY
Max Drive Power: 8 hp (6 kW)
Driving Method: Hydraulic
Theoretic Flow: 1000rpm (2.5L), 1500rpm (3.75L)
Number of Impellers: Single stage
Pump Shaft Position: Horizontal
Nominal Displacement: 2.5 cc/rev
Nominal pressure: 31.5 Mpa
Material: Cast iron
Weight: 4.5 kg
Warranty: 12 Months

8 hp (6 kW) Axial Piston Pump Dimension (unit: mm)

b	bo (N9)	D0	D1 (f9)	D2	D3	d (h6)	d1	d3
85	5	80	52	95	100	14	M18 x 1.5	M10 x 10

h1	L	I	I0	I1	I2	I3	I4	I5	t	d0 x h0
44	171	24	20	2.5	25	64	80	124	16	M8 x 12

Axial Piston Pump Detail

Tips: piston pump definition

The piston pump is a type of positive displacement pump, wherein said high pressure seal with said reciprocating piston. Piston pumps can be used to transport liquids or compressed gases. They can operate over a wide range of pressures. High pressure operation can be achieved without a strong influence on the flow rate. Piston pumps can also handle viscous media and media containing solid particles. This pump type functions through a piston cup, an oscillating mechanism (where a downward stroke causes a pressure differential), and a filled pump chamber (where an upward stroke forces the pump fluid out for use). Piston pumps are typically used in scenarios where high, consistent pressure is required, as well as in water irrigation or delivery systems.
