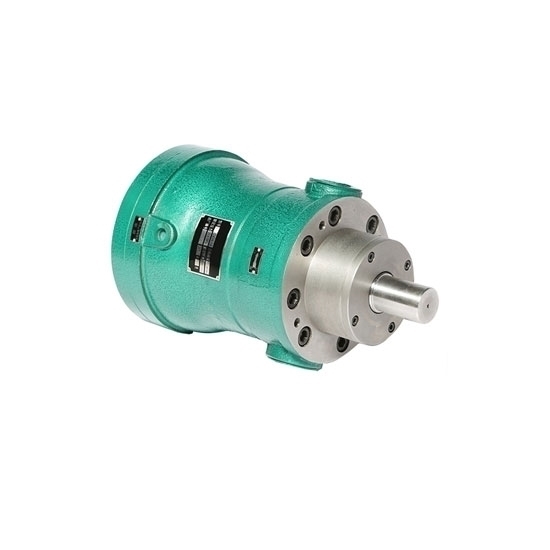

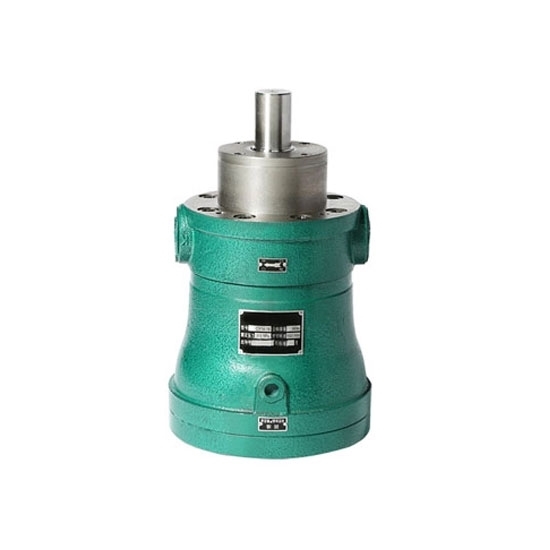

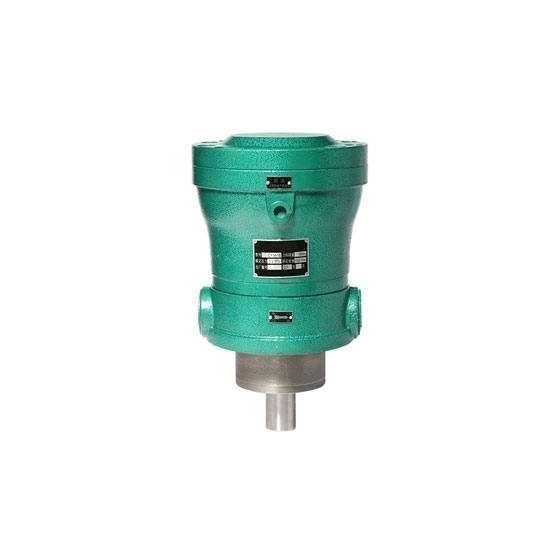

80 Hp Single Acting Axial Piston Pump

0 reviews • Write a review

from

$2,398.97

Ex Tax: $2,398.97

Stock: In Stock
Model: RDDLZ-PP-63YCY
Weight: 1.00
SKU: RDDLZ-PP-63YCY

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Variable axial piston pump power 80 hp, rated pressure 31.5 MPa, can change the flow rate provided to the load, widely used in machine tools forging, metallurgy, engineering, mining, shipping and other machinery and other hydraulic transmission systems.

Specification

Model: RDDLZ-PP-63YCY
Max Drive Power: 80 hp (59 kW)
Driving Method: Hydraulic
Theoretic Flow: 1000rpm (63L), 1500rpm (94.5L)
Number of Impellers: Single stage
Pump Shaft Position: Horizontal
Nominal Displacement: 63 cc/rev
Nominal pressure: 31.5 Mpa
Material: Cast iron
Weight: 71 kg
Warranty: 12 Months

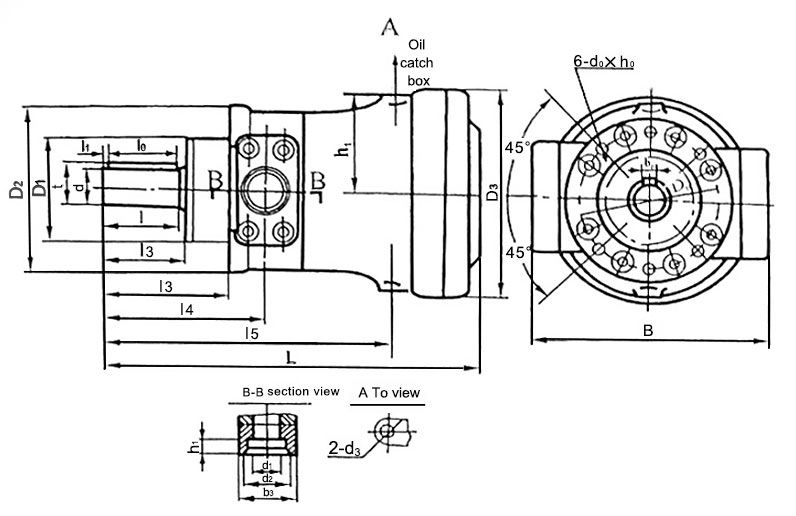

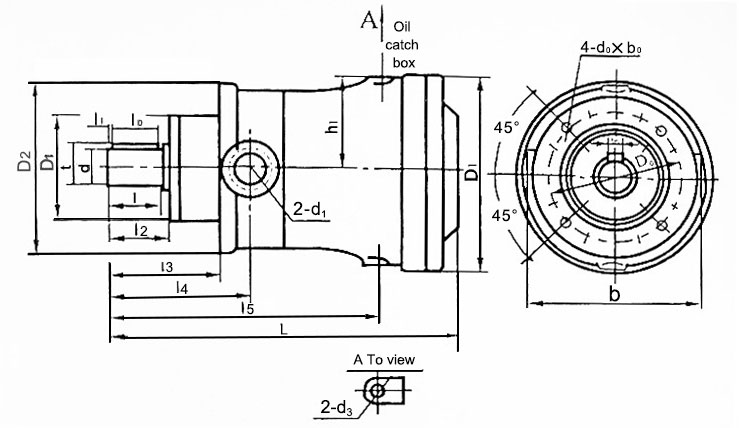

80 hp Axial Piston Pump Dimension (unit: mm)

B	b	bo (N9)	b1	b2	D0	D1 (f9)	D2	D3	d (h6)	d1	d3
258	200	12	74	104	155	120	190	225	40	M42 x 2	M18x 1.5

h1	L	I	I0	I1	I2	I3	I4	I5	t	d0 x h0
108	365	60	50	4	62	122	157	300	42.8	M12 x 25

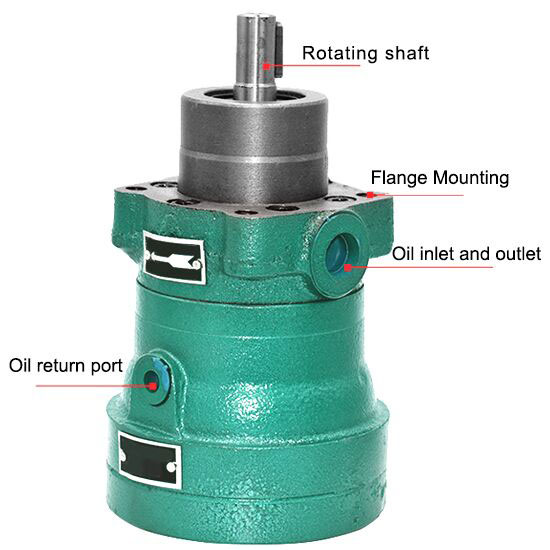

Axial Piston Pump Detail

Tips: Application of piston pump

The piston pump is suitable for high pressure and small flow rate, especially when the flow rate is less than 100 m3/hour and the discharge pressure is more than 9.8 MPa, it shows its high efficiency and good operating performance. It has good suction performance and can pump various different mediums and liquids of different viscosities. Therefore, it is widely used in petrochemical industry, machinery manufacturing industry, paper making, food processing, pharmaceutical production, etc. Low to medium speed piston pump speed is low, can be operated by human and animal dragging, suitable for rural water supply and small irrigation.
