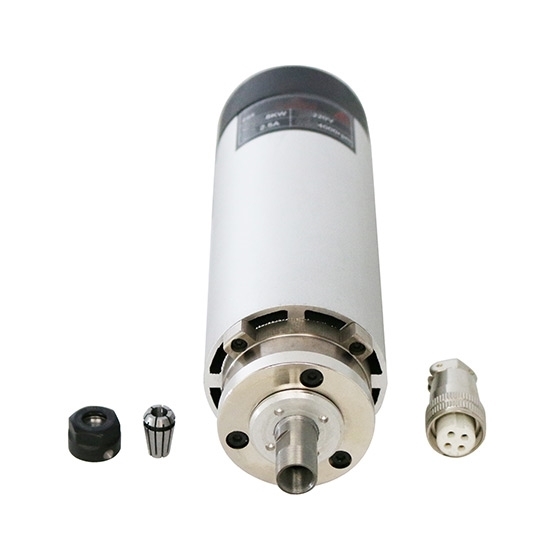

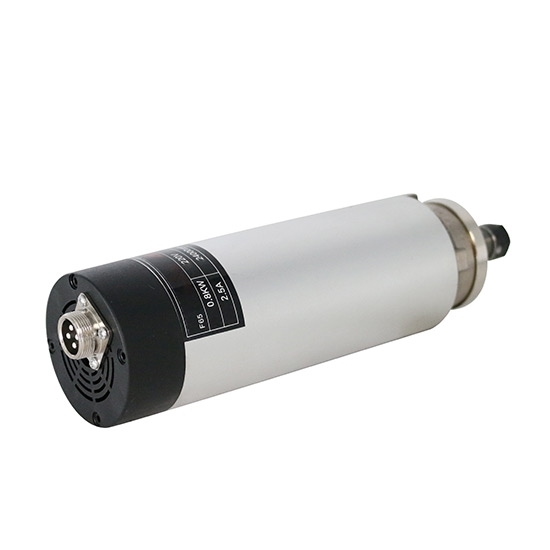

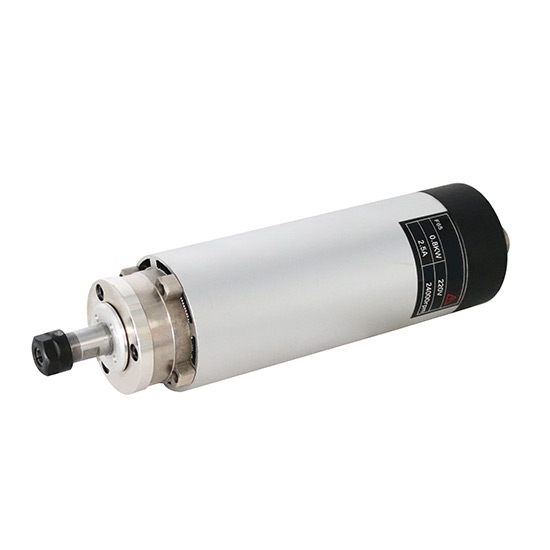

800W Air Cooled CNC Spindle Motor, 24000 Rpm, ER11

0 reviews • Write a review

from

$250.77

Ex Tax: $250.77

Stock: In Stock
Model: RDDLZ-SPINDLE-A800
Weight: 1.00
SKU: RDDLZ-SPINDLE-A800

Available Options

With Matched VFD

VFD Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

800W CNC spindle motor for sale at cheap price, 24000 rpm speed, 0.31 Nm torque, 400Hz frequency, 3 phase 220V AC operating voltage, ER11 (φ3.175 mm - φ7 mm) collet.

Feature

Spindle motor with air cooling fan and ER11 collet ensures smooth running.
Fast response, strong overload capacity, low noise, and high mechanical precision.
High-quality 3 pcs bearings (7002Cx2 + 7002Cx1), runout off less than 0.01mm, tapered bore less than 0.005mm.
P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
Lubricated with grease, which is resistant to 200 degrees high temperature.
Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, and CNC router machines, and are used for high-speed profiling, drilling, cutting, engraving, and groove milling of wood, metal, plastics, foam, rubber, and other materials.

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Specification

Model	STF65-0.8-ER11
Matched VFD Model	GK3000-2S0015 (2 hp single to three phase VFD) GK3000-4T0015G (2 hp three phase VFD)
Power	800W
Phase	Three phase
Speed	24000 rpm
Voltage	3-phase 220V±10% AC Note: (The default voltage of the matching VFD is consistent with the motor voltage)
Current	2.5A
Frequency	400Hz
Torque	0.31 Nm
Number of Pole	2 poles
Cooling Type	Air-cooled
Installation Method	Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication	Grease
Thermal Class	Class F
Protection Class	IP50
Certification	CE
Warranty	Bearings for half a year, other parts for one year
Joint of Nose	ER11 (φ3.175 mm - φ7 mm)
Bearings Type	7002C P42 & 7002C P41
Application	Woodworking & Plastic
Weight	3 kg
Download Attachments	800W Air Cooled Spindle Motor CAD Drawings

Details

Tips: What is a Spindle Motor?

Spindle motor is also called high-speed motor, refers to the revolution of a more than 10000 RPM AC motor. It has the advantages of fast speed, small size, lightweight, low material consumption, low noise, and low vibration, mainly used in wood, aluminum, stone, hardware, glass, PVC, and other industries. Due to its wide application and meticulous work, fast speed, and excellent processing quality, making another ordinary motor can not meet the technical requirements of the spindle motor. Spindle motor plays an important role in the industrial production process, so it is particularly popular all over the world.
