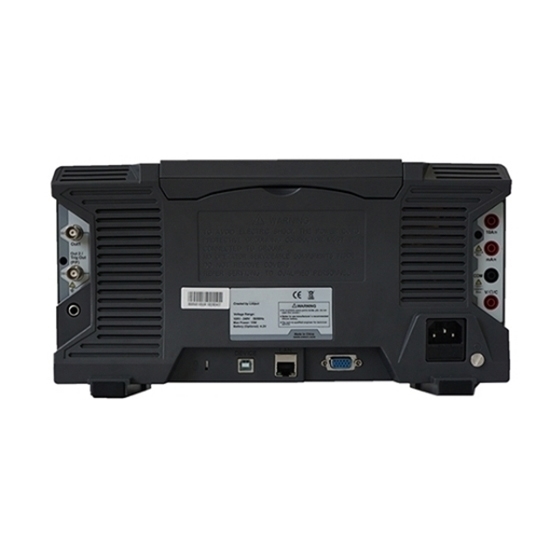

70 MHz Digital Oscilloscope, 4 Channel, 1 GSa/s

0 reviews • Write a review

from

$1,223.17

Ex Tax: $1,223.17

Stock: In Stock
Model: RDDLZ-SCOPE-70M4
Weight: 1.00
SKU: RDDLZ-SCOPE-70M4

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

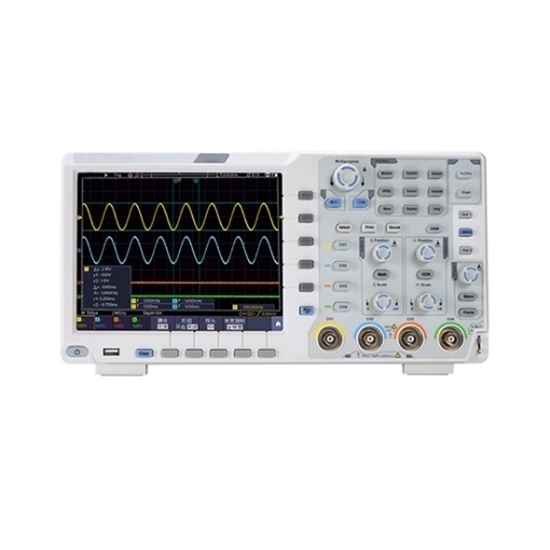

High-accuracy digital storage oscilloscope with 70 MHz bandwidth, 1 GSa/s sampling rate, 8 inches large LCD screen. The professional portable oscilloscope with an FFT display function can analyze the spectral characteristics of the signal. Cursor measurement function, convenient manual measurement period, frequency, and voltage.

Specification

Model	RDDLZ-NDS-074E
Bandwidth	70 MHz
Channel	4 Channel
Sample rate	1 GSa/s
Acquisition model	Sample, Peak detect
Record length	40M
Display	8 inch LCD
Waveform refresh rate	45000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Sampling rate range	2ns/div ~ 1000s/div, step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥5 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5ns
Trigger type	Edge
Trigger model	Auto, Normal, Single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34017790mm
Weight	2.6kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Detail

Tips: What does bandwidth mean in a digital oscilloscope?

Bandwidth is one of the most important specifications of an oscilloscope. The bandwidth of an analog oscilloscope is a fixed value, while the bandwidth of a digital oscilloscope has two types: analog bandwidth and digital real-time bandwidth. The digital real-time bandwidth of the digital oscilloscope is the digital real-time bandwidth of oscilloscope, which can be achieved by using sequential sampling or random sampling technology for repetitive signals. The digital real-time bandwidth is related to the highest digitization frequency and waveform reconstruction technology factor K (digital real-time bandwidth = maximum digitization rate/K), generally not directly given as an indicator. It can be seen from the definitions of the two bandwidths that the analog bandwidth is only suitable for the measurement of repetitive periodic signals, while the digital real-time bandwidth is suitable for the measurement of both repetitive signals and single-shot signals. When measuring a single signal, be sure to refer to the digital real-time bandwidth of the digital oscilloscope, otherwise, it will bring unexpected errors to the measurement.
