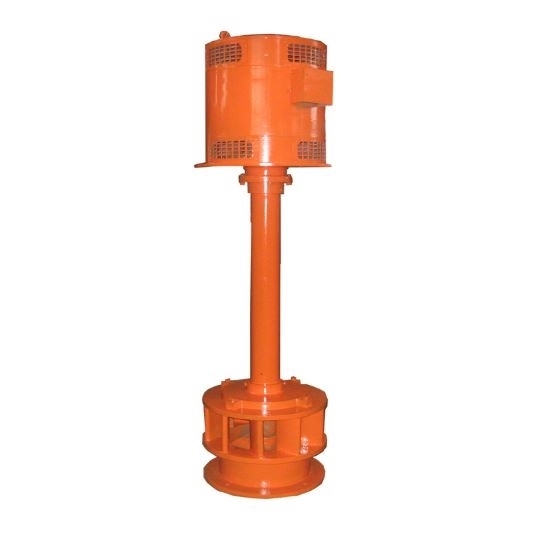

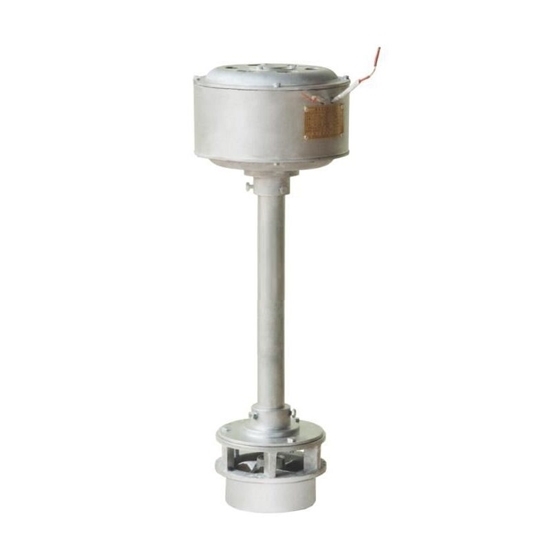

5KW Vertical Hydroelectric Turbine Generator, Axial Flow

0 reviews • Write a review

from

$3,599.89

Ex Tax: $3,599.89

Stock: In Stock
Model: RDDLZ-HT-5KW
Weight: 1.00
SKU: RDDLZ-HT-5KW

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This water turbine generator cannot be used for drinking water.

Efficient rated power 5000-watt miniature hydroelectric generator offers exceptional performance, supporting either 220V or 380V systems. Vertical design allows for easy installation, a compact footprint, and exceptional durability. Axial-flow structure, designed for a head of 2.5-5.5 meters and a flow rate of 0.09-0.14 cubic meters per second, maximizes power output under low-head conditions. It provides stable performance for residential, agricultural, or community energy needs, suitable for both on-grid and off-grid applications.

Sepcification

Power	5kW
Output Voltage	220V/ 380V
Power generation mode	Axial Flow
Design Head	2.5-5.5 m
Water Blade Diameter	20cm
Flow	0.012-0.0156 m³/s
Design Flow	0.09-0.14 m³/s
Speed	500-1500 rpm
Product Certification	CB/T15468

Feature

Vertical hydroelectric turbine generator is powerful, stable, reliable, quiet, and highly efficient.
Efficiently utilizes water energy, is energy-saving and environmentally friendly, and is economical and practical.
Domestic hydroelectric generators typically feature an adjustable design that adjusts to changes in water flow. Advanced axial flow design provides reliable energy production.
A wide range of uses and is suitable for various living scenarios.

Details

Installation Diagram

Application

Tips: What maintenance does the 5kw mini hydroelectric generator turbine require?

Regular maintenance includes inspecting the turbine's rotor and bearings, clearing debris from the system, and ensuring the generator is corrosion-free. Annual maintenance is recommended. A more detailed installation and maintenance guide will be provided with your purchase for more detailed maintenance instructions.
