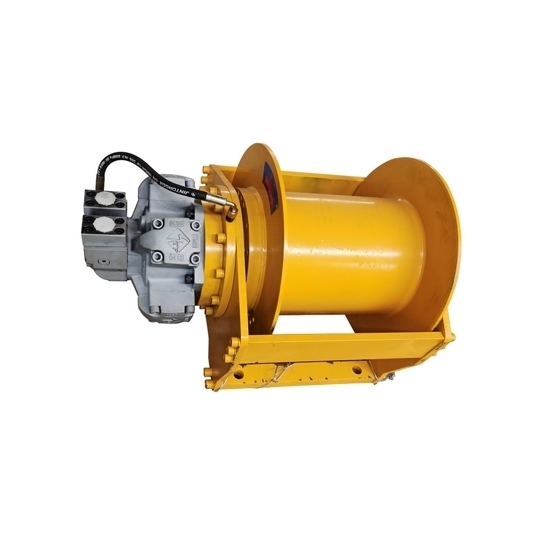

16000 Lbs Hydraulic Winch

Free Shipping

16000 Lbs Hydraulic Winch

0 reviews • Write a review

from

$11,658.19

Ex Tax: $11,658.19

Stock: In Stock
Model: RDDLZ-HWINCH-16000
Weight: 1.00
SKU: RDDLZ-HWINCH-16000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic winch is a mechanical device that uses hydraulic power to operate and is commonly used for heavy-duty lifting and pulling tasks. It consists of a hydraulic motor, a drum or spool, and a control valve system.

Specification

Model		RDDLZ-HW80-80
The 1st Layer	Pull	16000 lbs (8 ton)
	Rope Speed	0~25 m/min
Working Pressure Differential		16 Mpa
Oil Flow Supply		120 L/min
Applicable Rope Diameter		22mm
Hydraulic Motor		BMR-350
Planetary Reduction Ratio		1:22

Layer		Wire Rope Capacity
1		20m
2		44m
3		68m
4		94m

Note*:

Never exceed working load limit.
This hydraulic winch does not include wire rope.
If you want to purchase wire rope, please contact us.

Dimensions (Unit: mm)

Tips: Hydraulic winch used for truck

A hydraulic winch is an essential component used in trucks for various heavy-duty operations. It is a mechanical device that utilizes hydraulic power to effectively and safely recover or move heavy objects. The winch consists of a drum and a spooling system, with a hydraulic motor providing the power to wind and unwind the cable or rope. This mechanism enables the winch to exert significant pulling force, allowing trucks to handle tasks like vehicle recovery, loading/unloading cargo, and off-road maneuvers. Hydraulic winches offer several advantages, including high pulling capacity, smooth and controlled operation, and the ability to handle demanding applications in challenging terrains.
