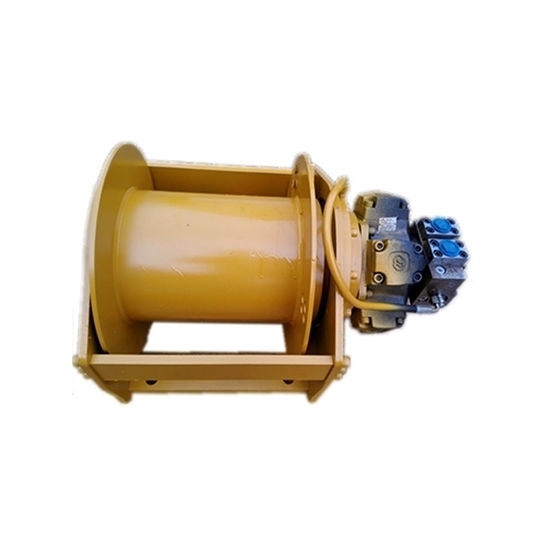

10000 Lbs Hydraulic Winch

Free Shipping

10000 Lbs Hydraulic Winch

0 reviews • Write a review

from

$7,437.39

Ex Tax: $7,437.39

Stock: In Stock
Model: RDDLZ-HWINCH-10000
Weight: 1.00
SKU: RDDLZ-HWINCH-10000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic winch is a mechanical device that uses hydraulic power to operate and is commonly used for heavy-duty lifting and pulling tasks. It consists of a hydraulic motor, a drum or spool, and a control valve system.

Specification

Model		RDDLZ-HW50S-50
The 1st Layer	Pull	10000 lbs (5 ton)
	Rope Speed	0~35 m/min
Working Pressure Differential		20 Mpa
Oil Flow Supply		120 L/min
Applicable Rope Diameter		16mm
Hydraulic Motor		BMR-400
Planetary Reduction Ratio		1:6

Layer		Wire Rope Capacity
1		18m
2		38m
3		60m
4		85m
5		110m

Note*:

Never exceed working load limit.
This hydraulic winch does not include wire rope.
If you want to purchase wire rope, please contact us.

Dimensions (Unit: mm)

Tips: How to install hydraulic winch?

Installing a hydraulic winch requires careful consideration and adherence to safety guidelines. Here is a step-by-step guide to help you with the installation process:

Gather the necessary tools and equipment: You will need a hydraulic winch kit, winch mount, hydraulic hoses, fittings, hydraulic fluid, a hydraulic pump, and appropriate wrenches.
Choose a suitable location: Identify a strong and sturdy mounting location on your vehicle's front bumper or frame. Ensure it can support the weight and pulling force of the winch.
Mount the winch: Attach the winch mount to the chosen location using the provided bolts and hardware. Make sure it is securely fastened and aligned properly.
Connect the hydraulic hoses: Install the hydraulic hoses from the winch to the hydraulic pump. Follow the manufacturer's instructions for proper hose routing and connections. Use fittings and clamps to secure the hoses in place.
Install the hydraulic pump: Mount the hydraulic pump in a suitable location within your vehicle's engine bay. Ensure it is securely fastened and properly connected to the power source.
Fill the hydraulic system: Add the recommended hydraulic fluid to the system according to the manufacturer's specifications. Bleed the air from the system if necessary.
Test the winch: Before putting the winch to use, perform a test run to ensure proper functionality. Pay attention to the winch's pulling capacity, control operation, and overall performance.

It is crucial to follow the specific instructions provided by the winch manufacturer as installation steps may vary depending on the model and brand. If you are unsure or inexperienced, consider seeking assistance from a professional or consulting with an expert.
