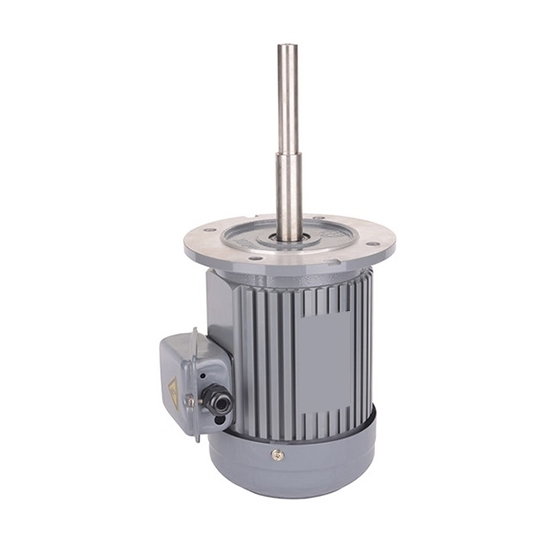

1/3 Hp 160mm Long Shaft Induction Motor, 2700 Rpm

0 reviews • Write a review

from

$334.62

Ex Tax: $334.62

Stock: In Stock
Model: RDDLZ-LSIM-13160
Weight: 1.00
SKU: RDDLZ-LSIM-13160

Available Options

Short Description

Rated Voltage

Rated Power

Motor Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

160mm long shaft induction motor works at single phase or 3-phase power supply, voltage 100~380V, optional output power 1/3 hp (250W) or 1/2 hp (370W), 2/4/6 poles， speed 860~2700 rpm. The AC induction electric motor is special for high temperature use, small size, high speed and low price.

Specification

Model	RDDLZ-YTG-B5
Rated Voltage	Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)
2 Poles
1/3 hp (250W)		2700	0.76	0.76	66	0.88	5.5	2.2	2.2
1/2 hp (370W)		2760	0.99	0.81	70	1.28	6.1	2.2	2.2
4 Poles
1/3 hp (250W)		1345	0.79	0.74	65	1.78	5.2	2.1	2.2
1/2 hp (370W)		1340	1.1	0.75	67	2.64	5.2	2.1	2.2
6 Poles
1/3 hp (250W)		860	0.95	0.68	59	2.78	4	1.9	2
1/2 hp (370W)		885	1.27	0.7	62	3.99	4.7	1.9	2

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

Details

1/3 hp 160mm Long Shaft Induction Motor Dimensions (Unit: mm)

Flange

Motor Base Number

Insulation Class

Flange Mounting Dimension

L_A

L_D

L_E

Φ AC

Shaft Dimension

Bearing

Φ M

Φ N

Φ P

Φ S

Φ Da

Φ Db

L.S.

O.S.

110

130

110

160

227

127

130

160

6202

6201
