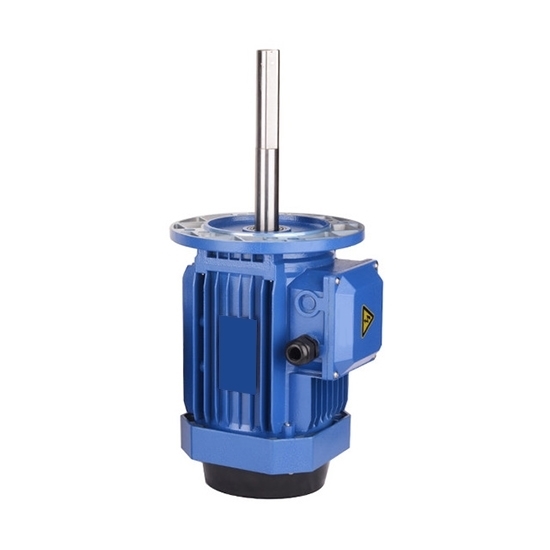

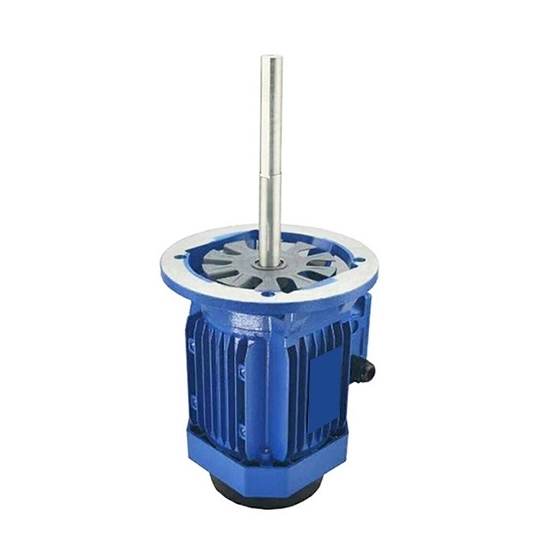

AC induction motor has a 160mm long shaft, operates at single phase/3-phase 100~380V power supply. Rated power 180W or 250W for selection, speed 2/4/6 poles, maximum 2700 rpm. Long shaft induction electric motor has small size, high speed and ideal price, which is suitable for various high temperature equipment, such as oven, low temperature quick freezing, constant temperature box, glass machinery, tunnel furnace, etc.

Specification

Features

1. Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
2. The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
3. Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
4. Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
5. Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
6. Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
7. Protection grade is IP55, dustproof and waterproof, in line with international standards.

Details

180/250W 160mm Long Shaft Induction Motor Dimensions (Unit: mm)

• Ordinary Flange


• Heightening Flange
