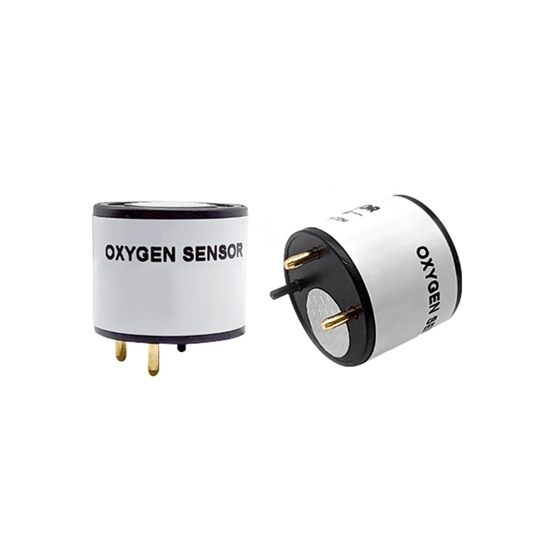

Electrochemical Oxygen Sensor, 0~25%vol

0 reviews • Write a review

from

$81.92

Ex Tax: $81.92

Stock: In Stock
Model: RDDLZ-OS-4ECO2
Weight: 1.00
SKU: RDDLZ-OS-4ECO2

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The oxygen sensor measures O2 levels from 0~25%vol with 0.1%vol resolution and a response time of T90 ≤ 15s, suitable for industry, power plants, mining, and environmental protection.

Specification

Model	RDDLZ-FS4EC/O2
Detection Type	O2
Detection Range	0~25%vol
Resolution	0.1%vol
Sensitivity	115±25µA/%vol
Response Time	T90 ≤ 15s
Service Life (in air)	5 years
Recommended Load Resistance	10Ω
Output Linearity	Linear
Temperature Range	-20°C~50°C
Humidity Range	15%~90% RH (non-condensing)
Pressure Range	Standard atmospheric pressure ±10%

Feature

Wide Linear Range: Provides accurate and stable linear output across the range of 0~25%vol.
High Precision: Achieves measurement accuracy of up to ±1%, ensuring reliable oxygen concentration detection.
Low Power Consumption: Designed for low power usage, extending the sensor's lifespan and improving efficiency.
High Sensitivity: Capable of detecting minute changes in oxygen concentration with precision.
Strong Anti-Interference Capability: Self-powered design with excellent resistance to environmental interference, ensuring stable performance.
Fast Response Time: Delivers quick response and real-time data updates for immediate oxygen level monitoring.
Excellent Stability: Based on electrochemical principles, the sensor offers superior long-term stability and consistent performance.
Temperature Compensation: Incorporates temperature compensation for accurate readings under varying temperature conditions.

Size (Unit:mm)

Working Principle Diagram

	1	Waterproof and Dustproof Membrane
	2	Capillary Hole
	3	Filter Material
	4	O-ring
	5	Hydrophobic Film
	6	Working Electrode
	7	Reference Electrode
	8	Counter Electrode
	9	Lead Wire
	10	Pin
	11	Electrolyte

Application

Tips: How Does an Industrial Electrochemical Oxygen Sensor Work?

Industrial electrochemical oxygen (lead) sensor is a primary cell type electrochemical sensor oxygen in the work of the electrode reduction reaction and the anode material oxidation reaction and the release of electric charge to form a current, the size of the resulting current and the concentration of oxygen is directly proportional to the Faraday's law, through the size of the test current can be determined by the size of the oxygen concentration.
