Portable Online Liquid Density Meter, 0-3.0g/cm³, 300mm-25m

0 reviews • Write a review

from

$2,698.31

Ex Tax: $2,698.31

Stock: In Stock
Model: RDDLZ-DENSITY-QLZX
Weight: 1.00
SKU: RDDLZ-DENSITY-QLZX

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

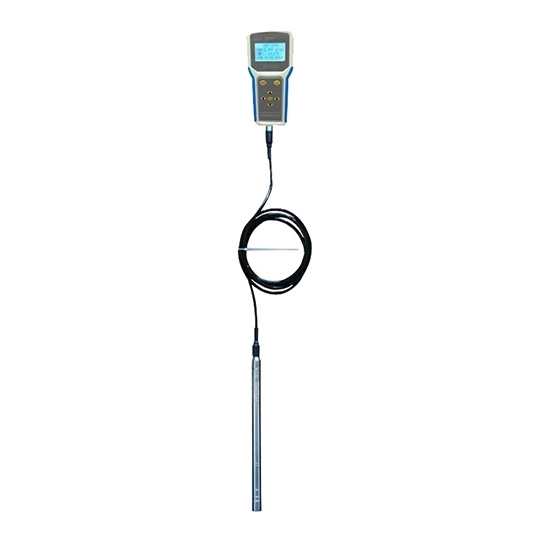

Portable liquid density meter is equipped with a high-precision density sensor, stable performance and easy to use. Its cable probe improves safety. This liquid density meter has a storage function and can record up to 200 sets of measurement data, which is convenient for data tracking and analysis. It is suitable for ambient temperatures of 0℃ to 85℃ and humidity ranges of 5~90%RH, ensuring stable operation under different environmental conditions.

Specification

Model	RDDLZ-QLZX-X
Measuring depth	300mm-25m
Range	Density 0-3.0g/cm³, temperature -25℃~110℃
Accuracy	Density ±0.001g/cm³, temperature ±0.5℃
Outer diameter of probe	φ25mm
Liquid measuring depth	Minimum measuring depth 300mm, maximum measuring depth 25m
Instrument box	1m
Ambient temperature	0℃~85℃
Ambient humidity	5~90%RH
Working voltage	Rechargeable battery supply (4* AA batteries)

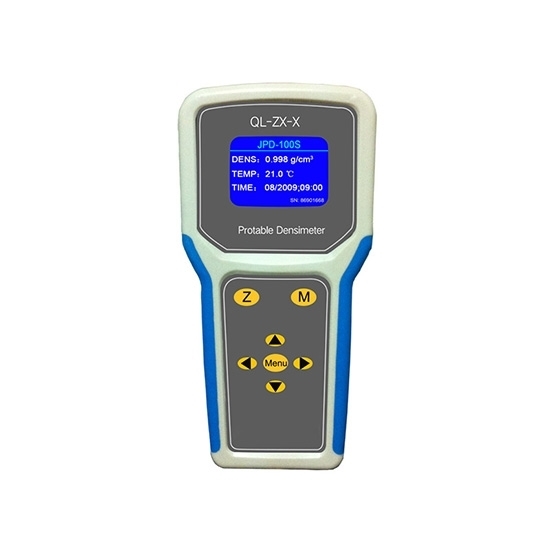

Display	Color screen digital display, display density value, temperature and time date
Memory storage	200 sets of measurement data
Measuring method	Handheld vertical measurement
Measuring principle	Differential pressure method

Applications

The liquid online density meter is a portable instrument used to measure the density indicators of various liquids or liquid mixtures. It has been widely used in various industries such as water treatment, petrochemicals, food processing, pharmaceuticals, dairy products, archaeology, mining and shipping.

Tips: Working principle of online liquid density meter

The instrument is mainly composed of a built-in density sensor, a temperature sensor, a signal line, an intelligent controller, etc. It measures the density and temperature of the liquid in real time through the built-in sensor probe, and transmits the collected signals to the intelligent controller through the signal line. The intelligent controller contains signal conditioning circuits, multi-channel AD conversion circuits, and CPU intelligent processing units to calculate and process the original signals, and finally convert them into readable density values, temperature values and other parameters. It also supports the storage of the latest 200 sets of measurement data for easy data tracking and analysis.
