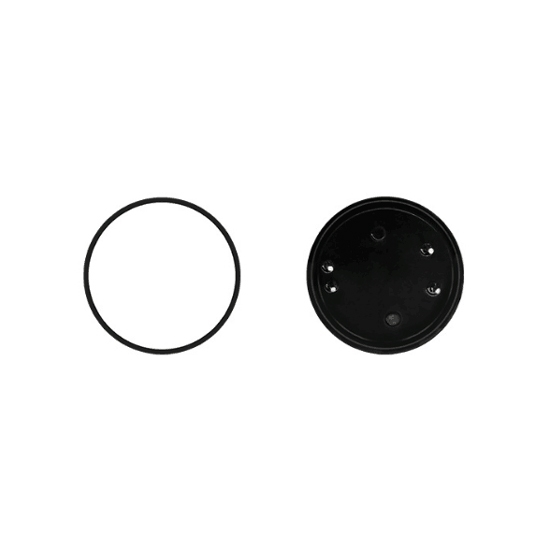

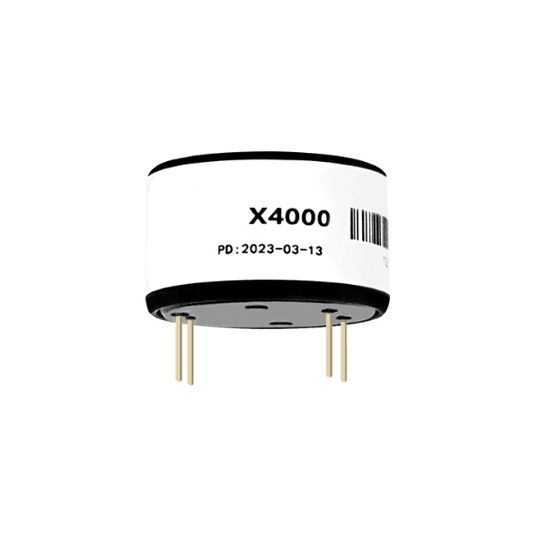

Fluorescent Oxygen Sensor, 0-300mbar, 0-25%

0 reviews • Write a review

from

$100.31

Ex Tax: $100.31

Stock: In Stock
Model: RDDLZ-OS-X4000
Weight: 1.00
SKU: RDDLZ-OS-X4000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The fluorescent oxygen sensor measures 0-25% oxygen and 0-300mbar partial pressure, operating at 4.75~5.25V with 7.5mA average current. It is precise and ideal for oxygen devices, glove boxes, exhaust systems, and portable monitors.

Specification

Model	RDDLZ-AOX4000
Operating Voltage	4.75~5.25V
Operating Current	Average: 7.5mA; Peak: 32mA
Oxygen Concentration Range	0~25%
Oxygen Partial Pressure Range	0~300mbar
Atmospheric Pressure Range	500~1200mbar
Oxygen Partial Pressure Accuracy	<2%FS
Atmospheric Pressure Accuracy	±5mbar
Operating Environment	-30°C~60°C; 0~95%RH
Storage Environment	-30°C~60°C; 0~95%RH
Sensor Lifetime	>6 years

Feature

Long Lifespan: Designed for extended operational durability, ensuring reliable performance over time.
Non-Consumptive: Does not consume oxygen during measurement, making it ideal for long-term monitoring applications.
Eco-Friendly Design: Free from lead or other toxic materials, ensuring compliance with environmental standards and safe use.
Cross-Gas Immunity: Highly resistant to interference from other gases, ensuring accurate oxygen detection in complex environments.
Pressure and Temperature Compensation: Integrated compensation mechanisms for oxygen partial pressure and temperature variations, ensuring precise readings in fluctuating conditions.
Insensitive to Atmospheric Pressure Changes: Provides high accuracy without being affected by changes in atmospheric pressure.
Drift-Free Performance: Stable and reliable measurements with no signal drift over time, reducing the need for frequent recalibration.
Low Power Consumption: Optimized for energy-efficient operation, suitable for battery-powered and portable devices.
Rapid Response: Quickly detects and reports oxygen concentration changes, ideal for dynamic environments.

Size (Unit:mm)

Interface Definition

Pin Number	Function
1	+5V
2	GND
3	UART TX
4	UART RX

Application

Tips: Why is the sensor not affected by other gases?

The sensor's design incorporates a high level of cross-gas immunity, meaning it is selectively sensitive to oxygen molecules while ignoring other gases that might be present in the environment. This is achieved through its specialized fluorescence-based detection technology, which relies on oxygen-specific interactions rather than chemical reactions. This makes the sensor highly reliable in environments where multiple gases coexist, such as industrial processing plants, automotive exhaust monitoring, or inert gas chambers.
