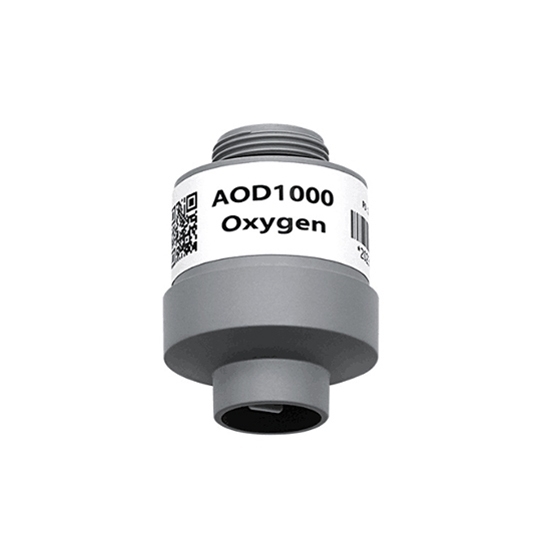

High Pressure Oxygen Sensor, 0.8-7 Bar, 0-100%

0 reviews • Write a review

from

$211.42

Ex Tax: $211.42

Stock: In Stock
Model: RDDLZ-OS-D1000
Weight: 1.00
SKU: RDDLZ-OS-D1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The high-pressure oxygen sensor (0.8~7.0 bar) measures 0100% oxygen with 8.5~14mV output. Designed for high-pressure systems, it’s ideal for oxygen chambers, tankers, and testing ships.

Specification

Model	RDDLZ-AOD1000
Working Principle	Voltage Divider Electrochemical
Output Voltage	8.5~14mV (in air)
Measurement Range	0~100%
Response Time (T)	<10s full range
Linearity	<2% of full scale
Temperature Compensation	0 (Equivalent, 0~50°C)
Load Resistance	>10kΩ
Interface	Molex 3-pin connector (2.54mm)
Housing Material	Gray ABS
Weight	Approx. 25g
Operating Temperature Range	0~45°C
Operating Pressure Range	0.8~7.0 bar
Operating Humidity Range	0~99% RH (non-condensing)
Recommended Storage Temperature	0~25°C
Expected Lifetime	42 months

Feature

Operates in High-Pressure Environments: Designed to function reliably within a pressure range of 0.8 to 7 bar.
Fast Response: Delivers quick and accurate oxygen measurements with a response time of less than 10 seconds.
Temperature Compensation: Ensures consistent performance across a wide temperature range, enhancing measurement accuracy.
Outstanding Long-Term Stability: Maintains reliable performance over extended periods, minimizing the need for frequent recalibration.
Full-Scale Linear Output: Provides precise and proportional output across the entire measurement range of 0-100%.

Size (Unit:mm)

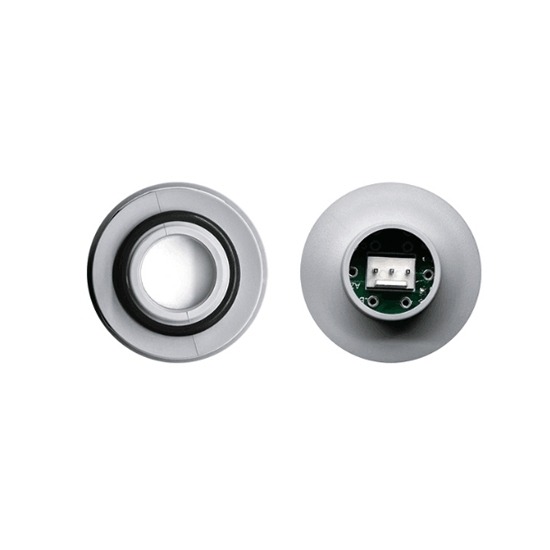

Interface Definition

1. Negative pin 2. Negative pin 3. Positive pin

Application

Tips: How is the sensor integrated into existing systems?

The sensor is easy to set up with its Molex 3-pin connector (2.54mm), which provides a strong and reliable connection. It has an output voltage of 8.5~14mV (in air), making it work well with many monitoring systems. Its small size makes it simple to install in both new and existing setups. The clear interface and straightforward wiring make it a great choice for improving current systems without major changes.
