6000W 120KV 6-20S Waterproof Brushless DC Motor, IP68

0 reviews • Write a review

from

$862.77

Ex Tax: $862.77

Stock: In Stock
Model: RDDLZ-BLDC-WP6000
Weight: 1.00
SKU: RDDLZ-BLDC-WP6000

Available Options

With ESC Controller

With Propeller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

120KV waterproof brushless DC motor operates at 25.2-84V DC voltage (by 6-12S batteries), 6kW high power, IP68 waterproof and 9N.m torque. Matching ESC controller, matching propeller options are available, which meet your Efoil, electric surfboard, electric hydrofoil, Foil surfboard, RC boat, Jet ski, Jetboard, etc.

Specification

Model	RDDLZ-65161
Max Power	6000W (8 hp)
Rotation Speed KV (RPM/V)	120KV
Max Input Voltage*	DC 25-84V
Peak Current	200A
Max Spin Speed	16380 rpm
Motor Pole	6
Max Torque at 60%	9 N.m
Motor Dimension	65*161mm
Max Working Temperature	120℃
Insulation Voltage & Leak Current	AC500V/10ma/3S
Lead Wires Extension	8AWG x 1300mm
Waterproof Grade	IP68
Motor Wire	8AWG
Plug	8mm
Weight	3kg

*Note: The motor is powered by 6-20S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

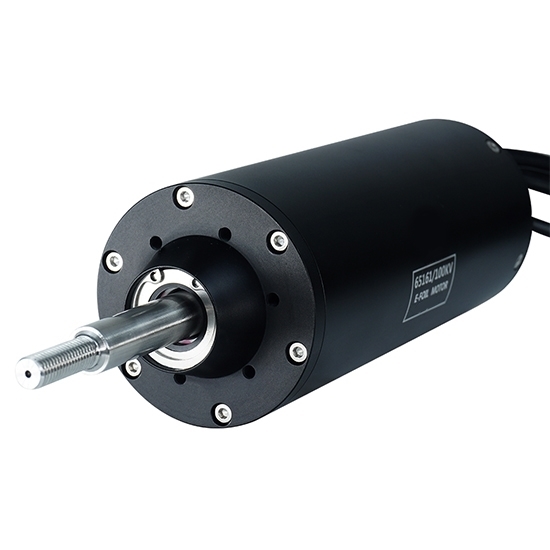

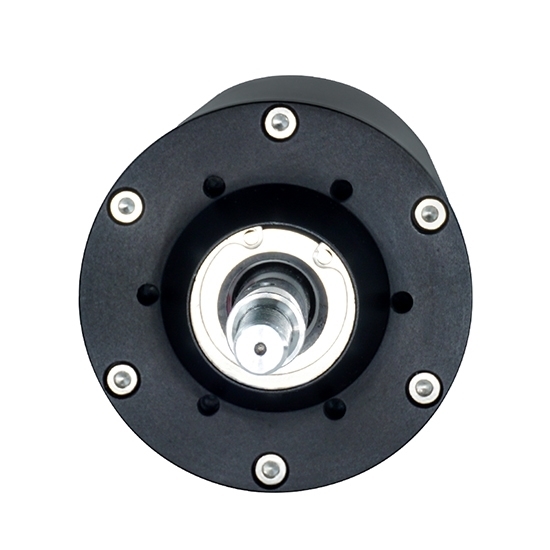

6000W Waterproof Brushless DC Motor Details

Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)

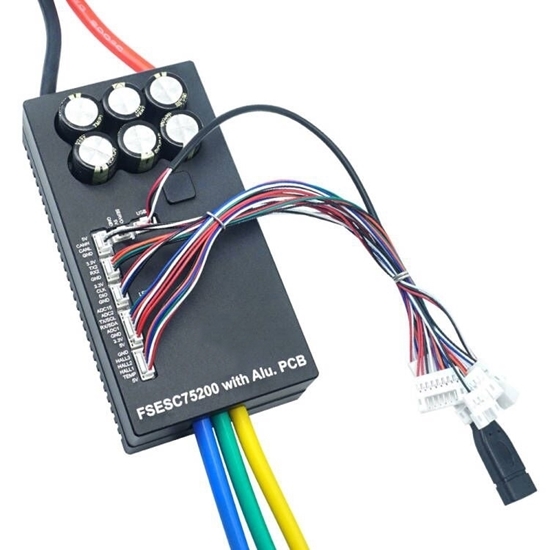

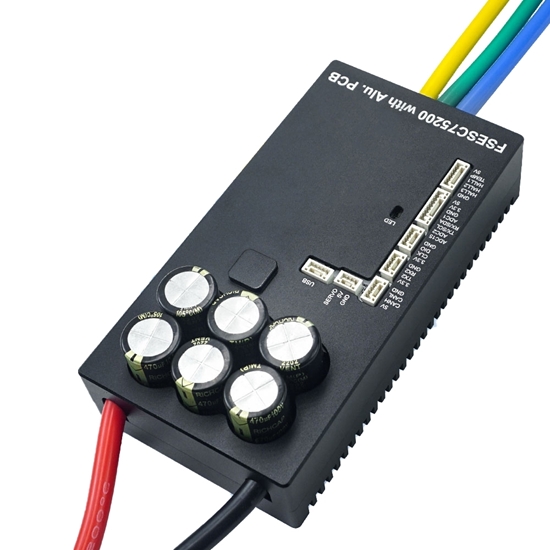

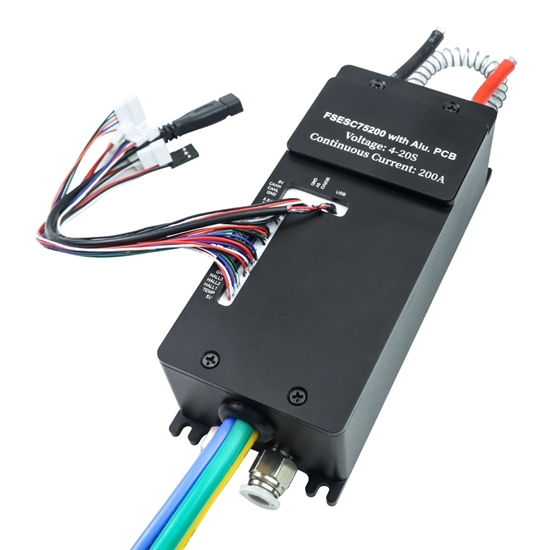

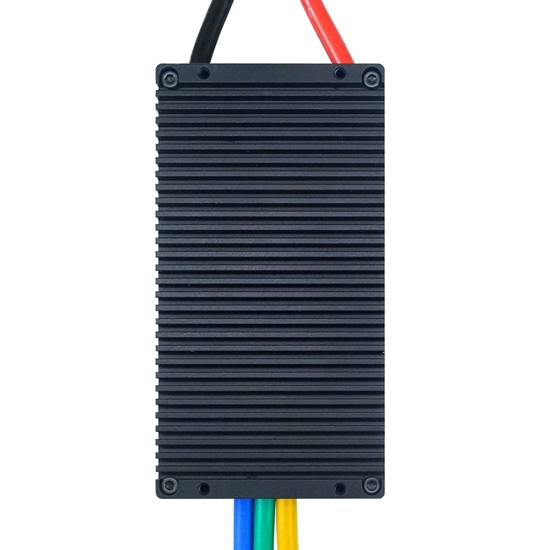

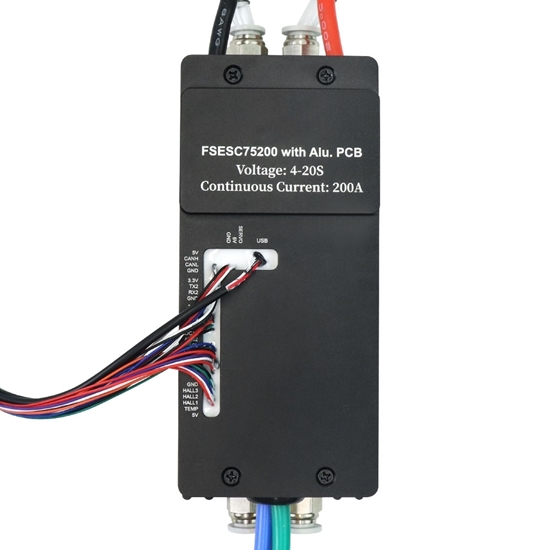

Single drive V6 75200*	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
