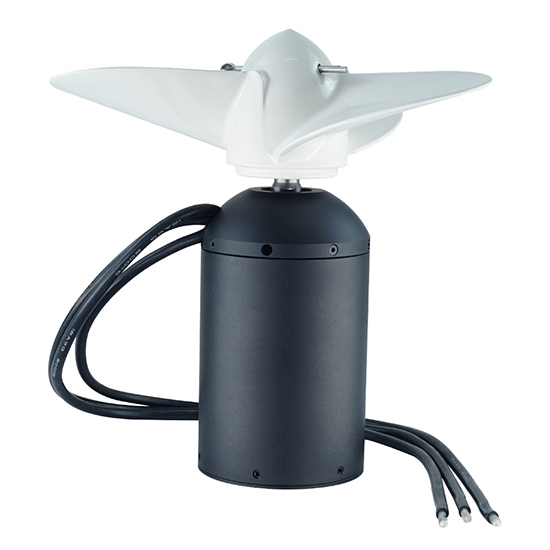

3000W 160KV 8-12S Waterproof Brushless DC Motor, IP68

0 reviews • Write a review

from

$386.92

Ex Tax: $386.92

Stock: In Stock
Model: RDDLZ-BLDC-WP3000
Weight: 1.00
SKU: RDDLZ-BLDC-WP3000

Available Options

With ESC Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Waterproof brushless DC motor for sale, matching ESC driver is provided for selection. Power 3kW, power supply batteries 8-12S. IP68 inrunner BLDC motor is an underwater small motor, which is wide used in electric surfboard, propeller, robot model, booster, hydro and other submersible equipment.

Specification

Model	RDDLZ-65111

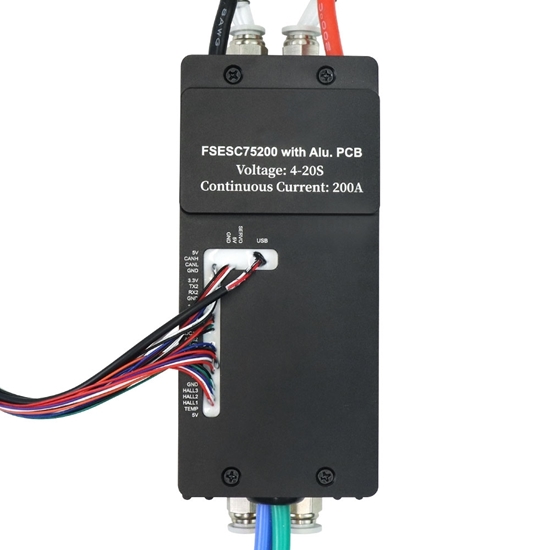

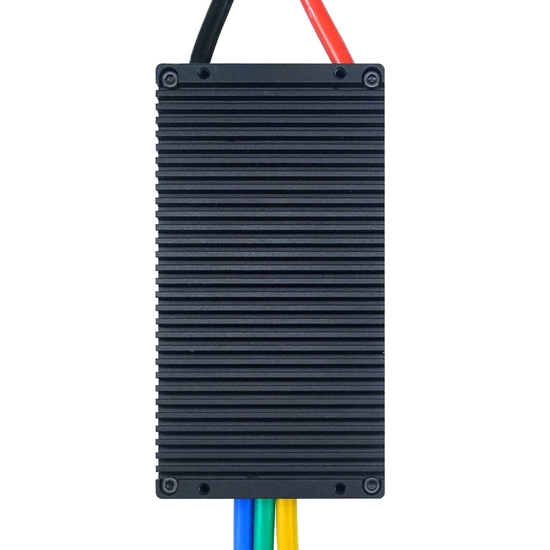

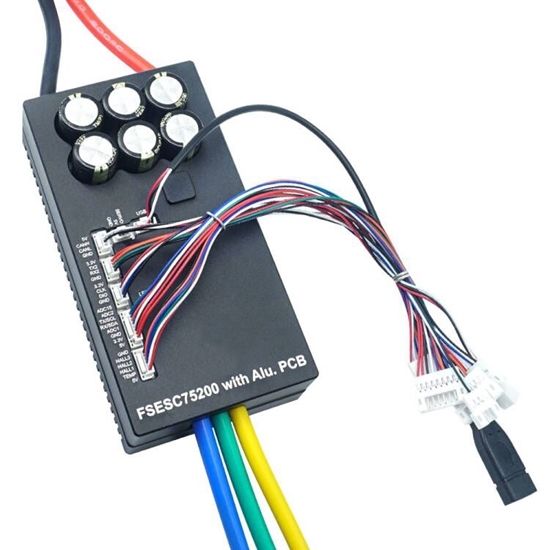

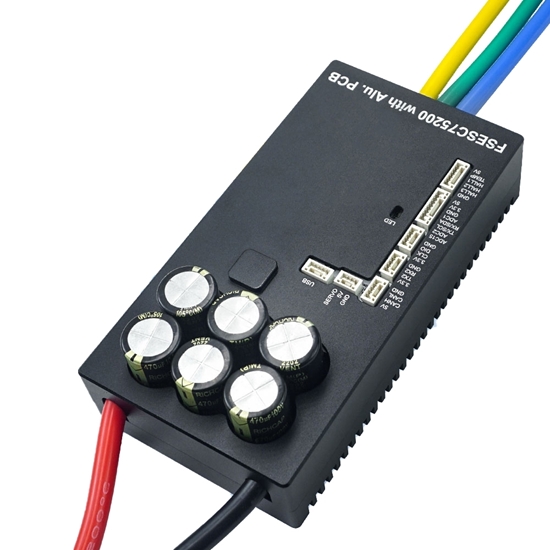

ESC Controller Model	Single drive V6 75200 (Click it to see more specs)
Max Power	3000W (4 hp)
Continuous Rated Power	1500W
Rotation Speed KV (RPM/V)	160KV
Max Spin Speed	8064 rpm
Input Voltage Range	8-12S (33.6-50.4V)
Resistance	0.095Ω
Motor Stator Slot	12
Shaft Diameter	10mm
Motor Pole	6pcs, 3 pairs
Maximum Load Current	70A
Continuous Rated Current	30A
No Load Current	1.7A at 42V
Motor Dimension	66*111mm
Waterproof Grade	IP68
Motor Wire	12AWG x 1500mm
Weight	1.4kg

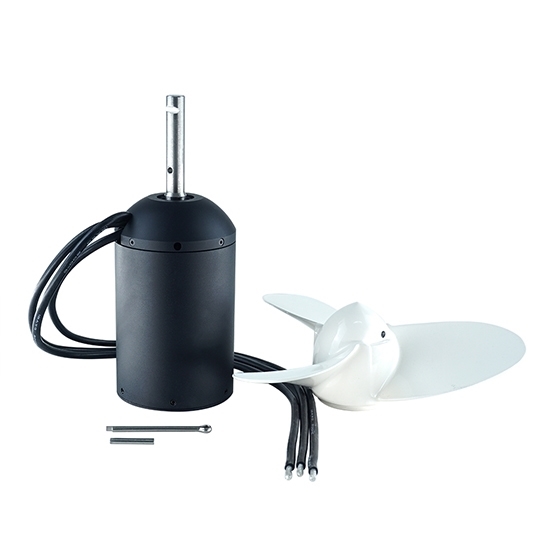

Packing Included	1 x Waterproof brushless DC motor 1 x Propeller

*Note: The motor is powered by 14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

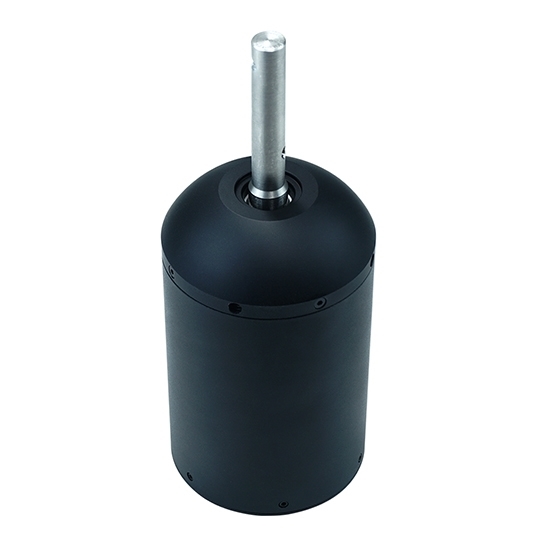

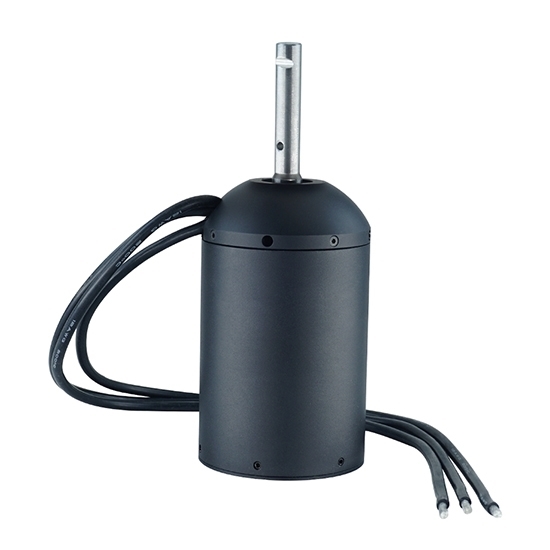

3000W Outrunner Brushless DC Motor Details

Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

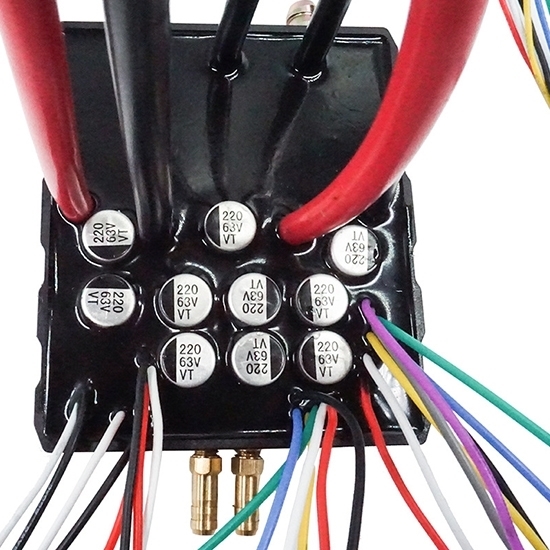

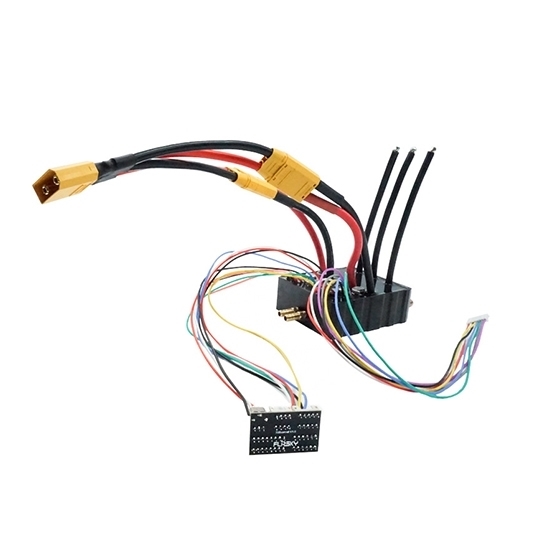

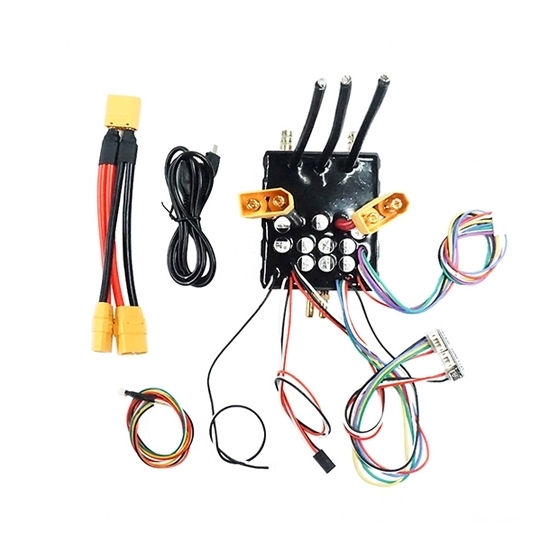

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)

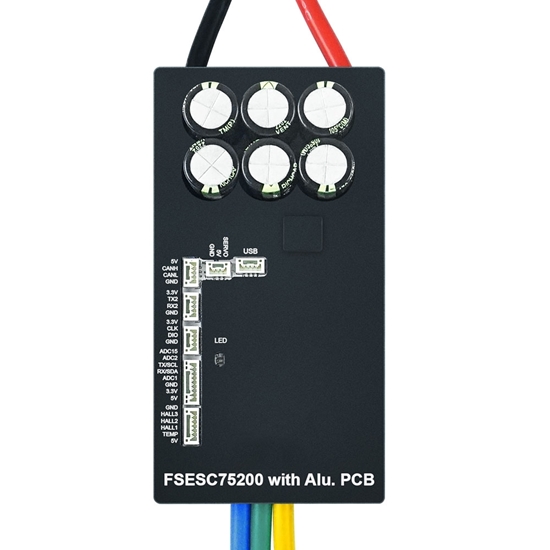

Single drive V6 75200*	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Airtightness and waterproof detection for brushless DC motor housing.

Brushless DC motor housing is an important part of the motor product. The main function of shell is to fix the rotor shaft, and to protect the motor from rainwater and other liquids from entering the motor to cause a short circuit. In a humid environment, normal motor housing materials are easily corroded and rusted under the action of water. Waterproof performance of BLDC motors depends largely on the shell. After the brushless DC motor is corroded by water, it will be unstable or the whole machine will be scrapped, so the waterproof shell of a motor is very important. The airtightness of the motor housing is determined by air tightness testing.

The air-tightness and waterproof detection of brushless DC motor shell can be realized by a dedicated testing device. Parameters of the airtightness and waterproof testing equipment of the motor housing can be set according to the requirements. Due to the particularity of motor shell, it is necessary to customize the corresponding special mold for air tightness and waterproof testing. Put the waterproof BLDC motor into the mold and test it by inflating. The airtightness and waterproof testing equipment of the motor shell uses compressed air, which can achieve rapid testing.
