500W 160KV 12S Waterproof Brushless DC Motor, IP68

0 reviews • Write a review

from

$154.15

Ex Tax: $154.15

Stock: In Stock
Model: RDDLZ-BLDC-WP500
Weight: 1.00
SKU: RDDLZ-BLDC-WP500

Available Options

With ESC Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 160KV outrunner brushless DC motor at competitive price, IP68 waterproof, max power 500W, input voltage 12S (DC 44V). Waterproof BLDC motor kit (electric motor + ESC controller) best for surfboard, propeller, robot model and other underwater works. Usually, RDDLZ recommends buying a kit of 0.5kW brushless motor.

Specification

Model	RDDLZ-5062
Max Power	500W
Rotation Speed KV (RPM/V)	160KV
Max Input Voltage*	DC 44V
Rated Voltage	24V
No-Load Current	＜1A
Maximum Load Current	30A
Motor Dimension	50*62mm
Trust	5kg
Hole Distance	φ 35mm
Screw Holes	4 × M4
Waterproof Grade	IP68
Motor Wire	12AWG

*Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

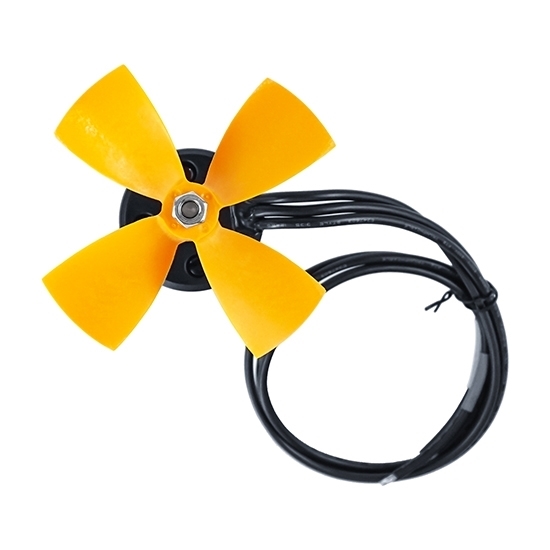

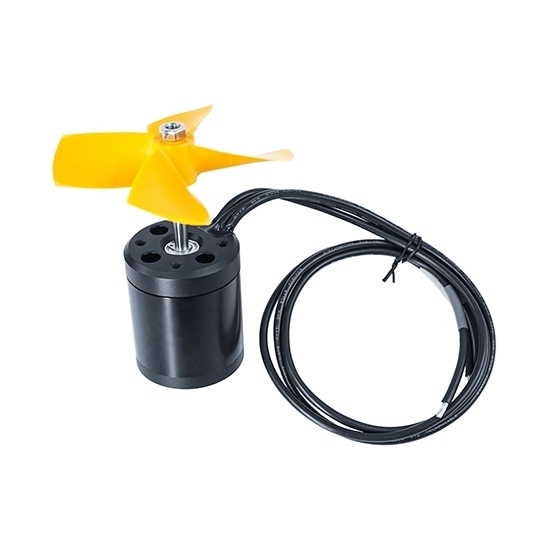

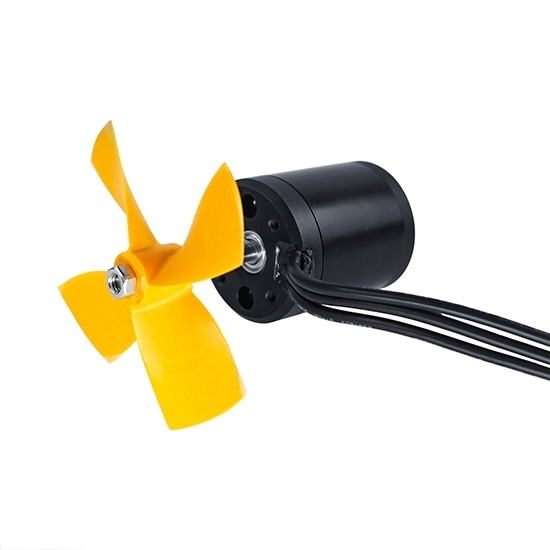

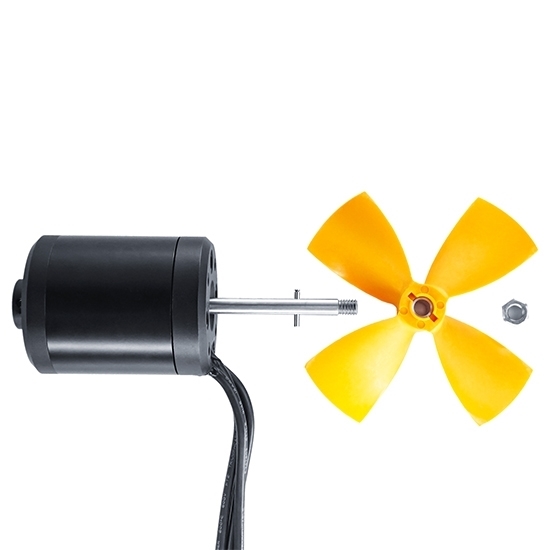

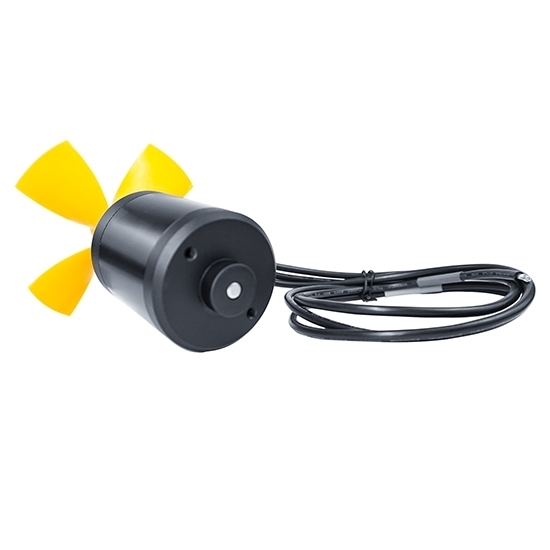

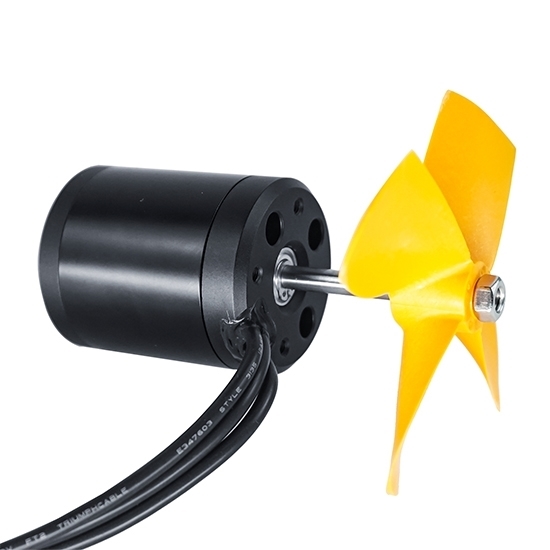

500W Outrunner Brushless DC Motor Details

Waterproof Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version*	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Precautions for using waterproof brushless DC motor.

When the service life of waterproof brushless DC motor bearings expires, vibration and noise of the motor will increase significantly. At this time, check the radial clearance of the bearing and replace the bearing in time.
When disassembling the waterproof BLDC motor, rotor can be taken out from the shaft extension or non-extended end. If the fan is not removed, the rotor should be removed from the non-shaft extension end. When extracting the rotor from the stator, prevent damage to the stator winding or insulation.
When replacing the winding, note down the form, size, number of turns and wire gauge of the original winding. If these data are lost, they should be obtained from the manufacturer. Changing the original design windings at will can easily deteriorate the performance of one or several items of the waterproof brushless DC motor, or even make it impossible to use.
