100 MHz Digital Oscilloscope, 2/4 Channels, 4 GSa/s

0 reviews • Write a review

from

$2,568.56

Ex Tax: $2,568.56

Stock: In Stock
Model: RDDLZ-SCOPE-100M
Weight: 1.00
SKU: RDDLZ-SCOPE-100M

Available Options

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 MHz Digital Oscilloscope Features

100 MHz maximum bandwidth, you can view up to 100 MHz digital/analog signals clearly.
2 or 4 analog channels for your selection.
Digital storage with 140 Mpoints memory depth.
4 GSa/s maximum real-time sample rate.
Lower noise floor, the minimum vertical sensitivity is 1mV/div.
Up to 110,000 wfms/s maximum waveform capture rate.
9 inch WVGA (800×480) and 256 level intensity grading display.

Models and Key Specifications

Brand Name	RIGOL
Model	DS4012	DS4014
	MSO4012	MSO4014
Number of Analog Channels	2	4
Number of Digital Channels (For MSO Series)	16
Bandwidth	100 MHz
Max. Real-time Sample Rate	Analog channel up to 4 GSa/s Digital channel up to 1 GSa/s (MSO Series)
Max. Memory Depth	Analog channel up to 140 Mpts Digital channel up to 28 Mpts (MSO Series)
Max. Waveform Capture Rate	up to 110,000 wfms/s
Real-time, Hardware Waveform Recording, Playback, and Analysis Functions	Analog channel up to 200,000 frames Digital channel up to 64,000 frames (MSO Series)
Multi-level Intensity Grading Display	up to 256 levels
Standard probes	2 or 4 sets RP3500A 500 MHz BW Passive Probe 1 sets RPL2316 LA Probe (MSO series only)
Dimension	Width x Height x Depth = 440 mm x 218 mm x 130 mm
Weight	7 Kg (Package Included)
Packing Included	1 x Digital Oscilloscope; 2 (4) x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide

DS/MSO4000 Series Rigol Digital Oscilloscope Specs PDF

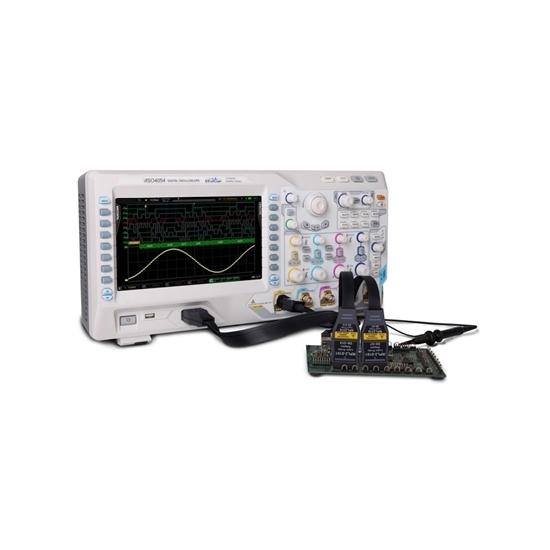

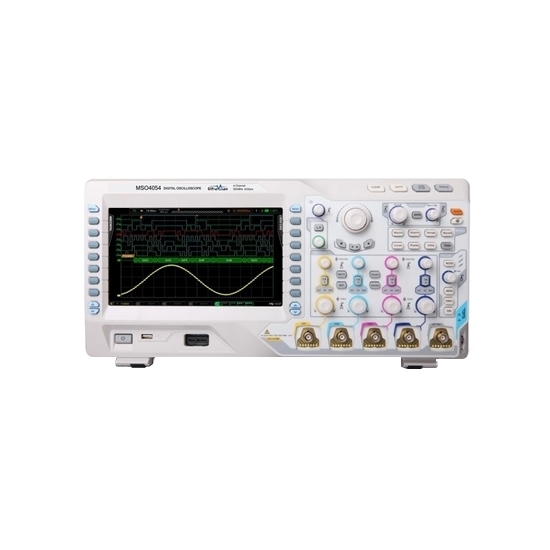

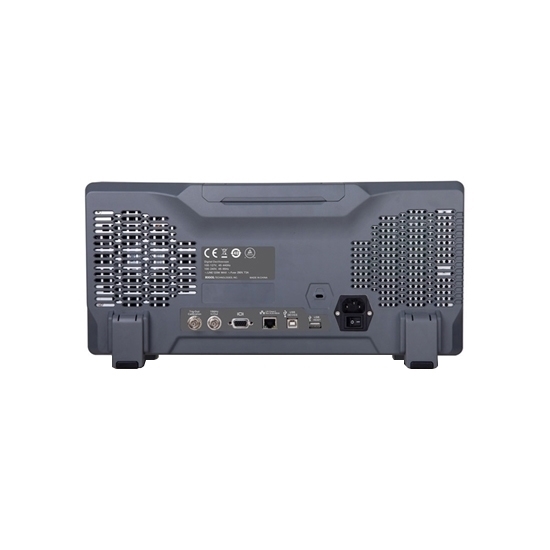

Digital Oscilloscope Detail
Tips: Digital Oscilloscope vs. Analog Oscilloscope
The oscilloscope is divided into digital oscilloscope and analog oscilloscope.

The analog oscilloscope uses analog circuit (the oscillograph tube, which is based on the electron gun). The electron gun launches electrons to the screen, and the emitted electrons are focused on forming the electron beam and hitting the screen. The inner surface of the screen is coated with a fluorescent substance, so that the dots in the electron beam will emit light.

Digital oscilloscope is a high performance oscilloscope produced by a series of technologies such as data acquisition, A/D conversion and software programming. Digital oscilloscope generally supports multi-level menus, which can provide users with multiple choice and analysis functions. At the same time, it can also provide storage and realize the preservation and processing of waveforms.
