15mm Tapered Roller Bearing, Single Row

0 reviews • Write a review

from

$49.85

Ex Tax: $49.85

Stock: In Stock
Model: RDDLZ-TRB-15
Weight: 1.00
SKU: RDDLZ-TRB-15

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

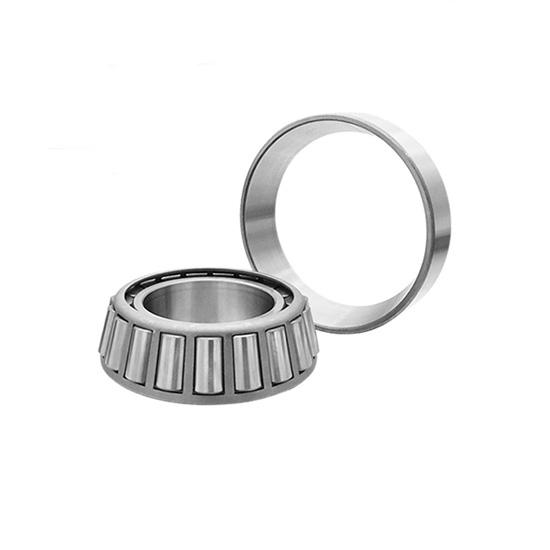

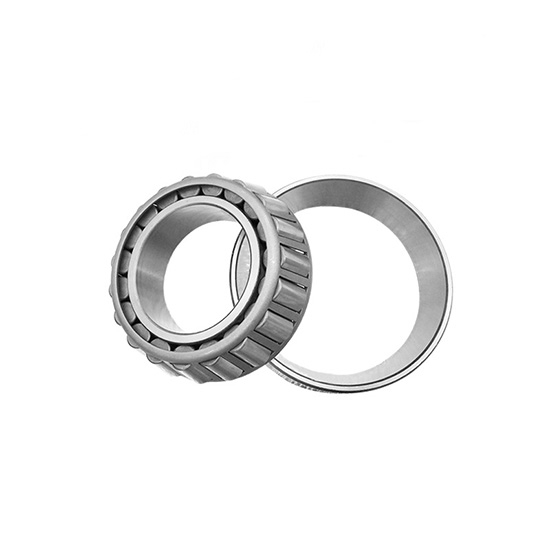

The reliable tapered roller bearing comes with inner diameter of 15mm, P6 accuracy, and 650 rpm limiting speed. Single row tapered roller bearing features low friction and low noise that provide operational reliability.

Specification

Model: RDDLZ-30202
Inner diameter: 15mm
Outer diameter: 35mm
Width: 11.75mm
Accuracy class: P6
Limiting speed: 650 rpm
Bearing basic dynamic load rating: 25.8 kN
Rated static load: 163 kN
Bearing material: Bearing steel

Dimension (mm)

Application

Tips: What is a tapered roller bearing?

Tapered roller bearings are separable bearings, and the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into different structural types such as single row, double row and four row tapered roller bearings according to the number of rows of rollers installed. Single row tapered roller bearings can bear radial loads and axial loads in one direction. When the bearing bears radial load, an axial component force will be generated, so another bearing that can bear the axial force in the opposite direction is needed to balance it.
