3/4" (19mm) Manual Pipe Bender

0 reviews • Write a review

from

$375.38

Ex Tax: $375.38

Stock: In Stock
Model: RDDLZ-PB-19
Weight: 1.00
SKU: RDDLZ-PB-19

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

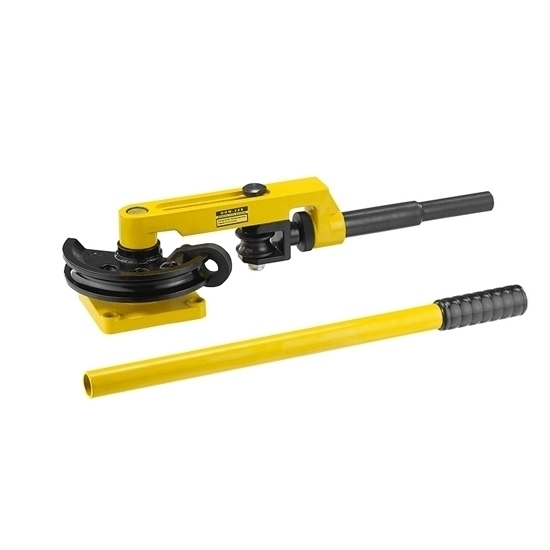

Portable 3/4 inch 19mm manual pipe bender features a roller and U-shaped bending die for fast and precise pipe installation and repair.

Specifications

Model	RDDLZ-HHW-25S

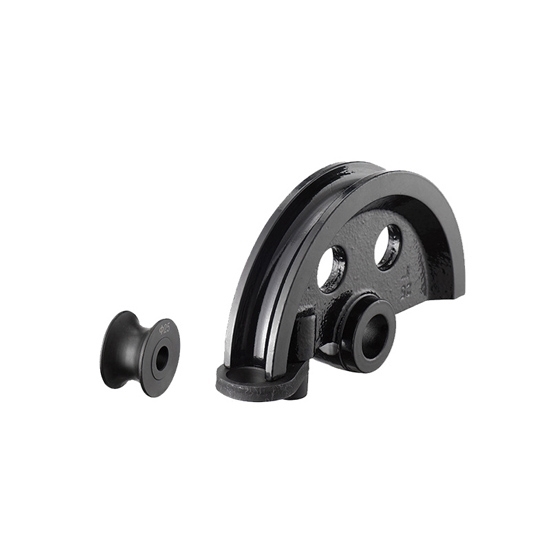

Equipped Mold	Bending Rollers and U-Bending Dies
Mold Size	φ19mm (3/4 inch)
Bending Angle	0~180°
Mold Material	Ductile Iron
Minimum Bend Radius	77mm
Pipe Diameter	20mm
Standard Steel Pipe/Stainless Steel Pipe Wall Thickness	1.0mm
Standard Copper Pipe Wall Thickness	1.2mm
Weight	14.1kg
Packaging and Dimensions	Wooden Box Packing (670x215x170mm)
Suitable Pipe Material	Stainless Steel, Copper, etc.

Note

The manual pipe bender is only suitable for round pipes, not for square pipes.
For stainless steel/iron pipes with an outer diameter of 19mm or more, it is recommended to use a tube bender with a wall thickness of 1.2~1.5mm.

Details

Installation Steps

Pipe Bender Applications

Tips: How to choose a manual pipe bender?

Pipe Size and Material: Determine the range of pipe sizes and materials you will be working with. Different manual pipe benders have varying capacities and compatibility. Ensure that the bender you choose can accommodate the pipe sizes and materials you plan to bend.
Bend Radius and Angle: Consider the specific bend radius and angle requirements of your project. Some manual pipe benders have adjustable bending dies or shoes that allow for different bend radii and angles. Ensure that the bender can achieve the desired bends for your application.
Durability and Construction: Look for a manual pipe bender that is well-built and durable. Consider the materials used in its construction, such as heavy-duty steel or cast iron, which can withstand repeated use and provide stability during bending operations.
Bending Accuracy and Precision: Check the precision and accuracy of the bending results produced by the manual pipe bender. Look for user reviews or product specifications that indicate the bender's ability to consistently create precise bends without distortion or kinking.
Portability and Storage: Consider the portability and storage requirements of the manual pipe bender. If you need to move the bender frequently or transport it to different job sites, look for a lightweight and compact model that is easy to carry. Additionally, consider whether the bender can be disassembled or folded for more convenient storage.
Ease of Use: Look for a manual pipe bender that is user-friendly and easy to operate. Consider features such as ergonomic handles, clear instructions, and smooth operation. Ensure that the bender provides sufficient leverage for bending pipes without excessive effort.
