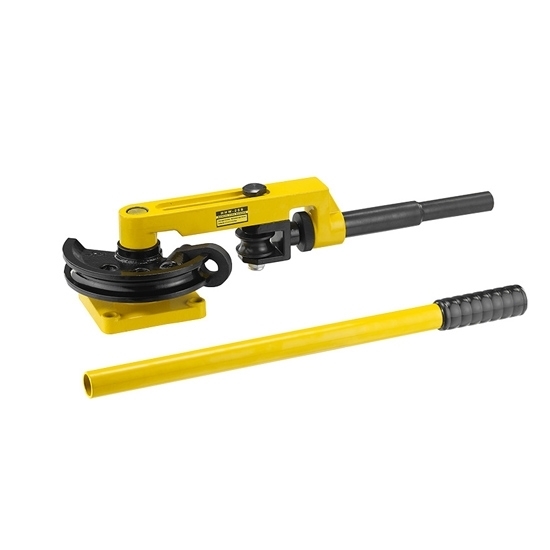

3/8" (10mm) Manual Pipe Bender

0 reviews • Write a review

from

$339.23

Ex Tax: $339.23

Stock: In Stock
Model: RDDLZ-PB-10
Weight: 1.00
SKU: RDDLZ-PB-10

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 10mm tube bender is suitable for copper pipes and steel pipes of different diameters and thicknesses, and can achieve 180° bending angles. 3/8" pipe bending tools are widely used in home improvement, workshop processing or light manufacturing projects.

Specifications

Model	RDDLZ-HHW-25S

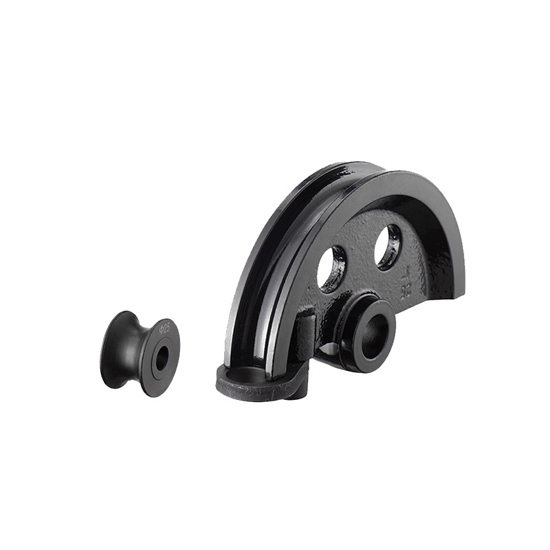

Equipped Mold	Bending Rollers and U-Bending Dies
Mold Size	φ10mm (3/8 inch)
Bending Angle	0~180°
Mold Material	Ductile Iron
Minimum Bend Radius	42mm
Pipe Diameter	11mm
Standard Steel Pipe/Stainless Steel Pipe Wall Thickness	0.8mm
Standard Copper Pipe Wall Thickness	1.0mm
Weight	11kg
Packaging and Dimensions	Wooden Box Packing (670x215x170mm)
Suitable Pipe Material	Stainless Steel, Copper, etc.

Note

The manual pipe bender is only suitable for round pipes, not for square pipes.
For stainless steel/iron pipes with an outer diameter of 19mm or more, it is recommended to use a tube bender with a wall thickness of 1.2mm-1.5mm.

Details

Installation Steps

Pipe Bender Applications

Tips: What is a pipe bender?

A pipe bender is a tool or machine used to bend pipes or tubes into specific shapes or angles. It is commonly used in various industries, such as plumbing, construction, automotive, and manufacturing. Pipe benders are designed to provide controlled and precise bending of pipes without damaging or distorting their structure.

There are different types of pipe benders available, including manual benders and powered benders. Manual pipe benders are typically handheld tools that use leverage and physical force to bend pipes. They often consist of a long handle and a bending shoe or die that holds the pipe in place while it is bent.

Powered pipe benders, on the other hand, are machines that use hydraulic, pneumatic, or electric power to bend pipes. These machines are more efficient and can handle larger and thicker pipes compared to manual benders. Powered pipe benders are commonly used in industrial settings where a high volume of pipe bending is required.
