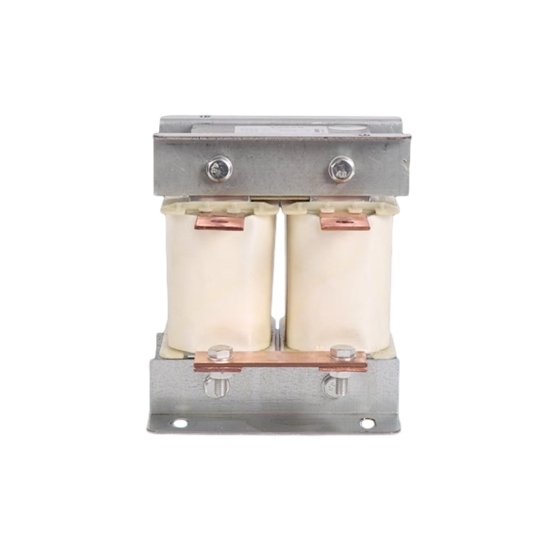

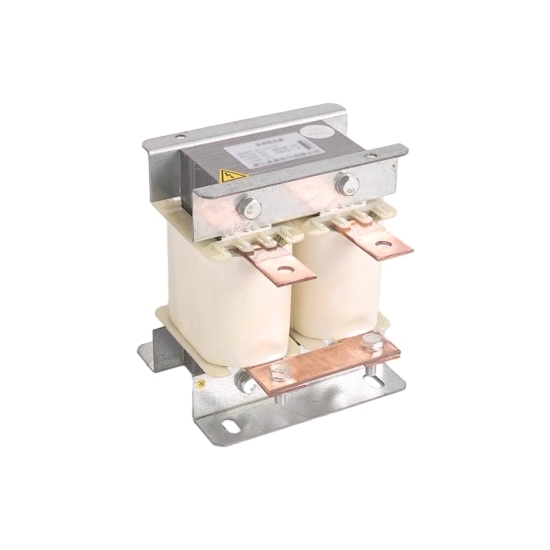

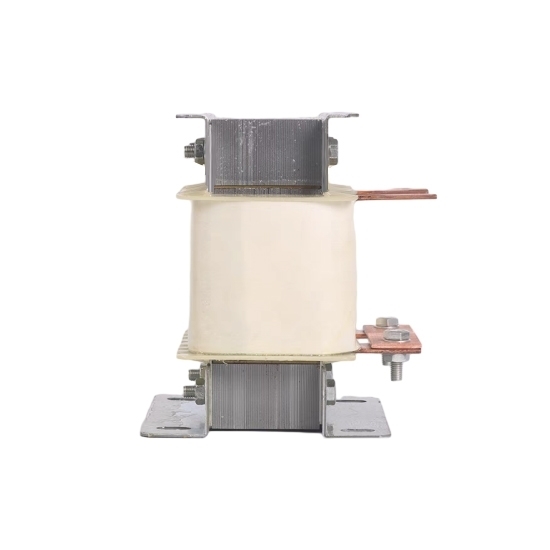

15 Hp (11 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$169.32

Ex Tax: $169.32

Stock: In Stock
Model: RDDLZ-DCR-15
Weight: 1.00
SKU: RDDLZ-DCR-15

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single phase DC reactor can be used in HVDC, power 11 kW, 30 amp rated current, material aluminum or copper, cheap price and high quality.

Specification:

Model	RDDLZ-DCL-30
Phase	1 Phase
Power Adapter	11 kW (15 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	30A
Inductance	1.06mH
Insulation Grade	F.H
Dimension	120115130mm (LWH)
Mounting Dimension	100*65mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	4kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: The role of the shunt reactor

Shunt reactors have various functions to improve the operating status of reactive power in power systems, and are often used for reactive power compensation. For example, to improve the voltage distribution on long-distance transmission lines, to absorb the charging capacitive reactive power of cable lines, to prevent the self-excitation resonance phenomenon that may occur on long lines of generators.
