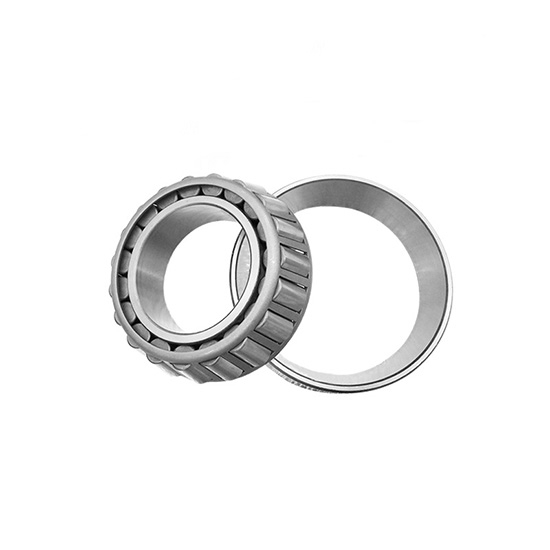

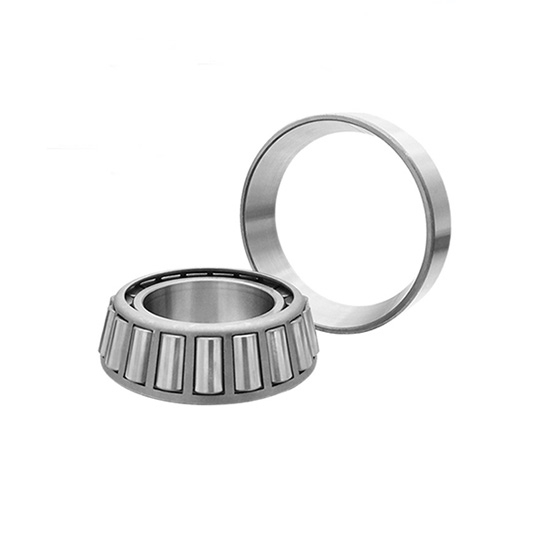

20mm Tapered Roller Bearing, Single Row

0 reviews • Write a review

from

$51.33

Ex Tax: $51.33

Stock: In Stock
Model: RDDLZ-TRB-20
Weight: 1.00
SKU: RDDLZ-TRB-20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The reliable tapered roller bearing comes with inner diameter of 20mm, static load rating of 25.8kN, P6 accuracy, and 650 rpm limiting speed. The built-in rollers of roller bearings are thin and long, have better load-carrying capacity, longer life and are safer.

Specification

Model: RDDLZ-30204
Inner diameter: 20mm
Outer diameter: 47mm
Width: 15.25mm
Accuracy class: P6
Limiting speed: 650 rpm
Bearing basic dynamic load rating: 25.8 kN
Rated static load: 163 kN
Bearing material: Bearing steel

Dimension (mm)

Application

Tips: How do I choose a tapered roller bearing?

The angle formed by the line of contact between the cup and rollers and that of the bearing's bore axis determines the type of load for which the bearing is well-suited. The larger the angle, the better the bearing is able to handle thrust loads, but the capacity to handle radial loads is proportionally reduced.
