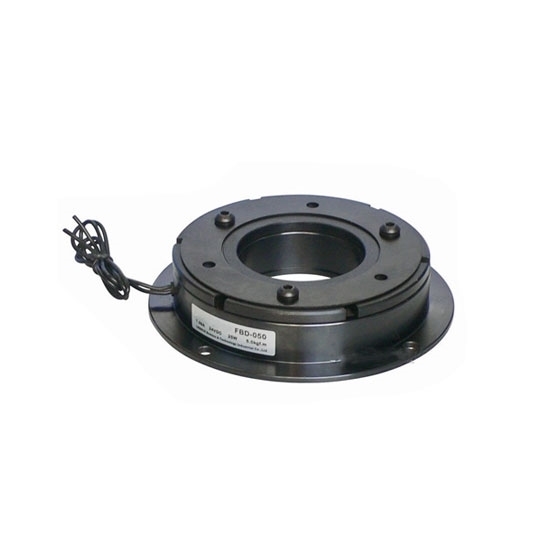

Electromagnetic Brake, DC 24V, 6Nm/200Nm

0 reviews • Write a review

from

$110.69

Ex Tax: $110.69

Stock: In Stock
Model: RDDLZ-EB-FBD
Weight: 1.00
SKU: RDDLZ-EB-FBD

Available Options

Short Description

Static Torque

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

24V DC electromagnetic disc brake for crane, static torque 400Nm, 200Nm, 100Nm, 6Nm is available, it has the advantages of compact structure, simple operation, responsiveness, reliable use and easy remote control.

Specification:

Model	RDDLZ-FBD-006	RDDLZ-FBD-015	RDDLZ-FBD-025	RDDLZ-FBD-050	RDDLZ-FBD-100	RDDLZ-FBD-200	RDDLZ-FBD-400
Static Torque [kgf-m](N-m)	0.6 (6)	1.5 (15)	2.5 (25)	5.0 (50)	10 (100)	20 (200)	40 (400)
Dynamic Torque [kgf-m](N-m)	0.5 (5)	1.0 (10)	2.0 (20)	4.0 (40)	8 (80)	16 (160)	32 (320)
Rated Voltage	DC 24V
Power (W) at DC 24V, 20℃, no load	11	15	20	25	35	45	60
Weight (kg)	0.28	0.5	0.91	1.68	3.15	5.9	10.5
Maximum Speed (r/min)	1800
Document	Download Electromagnetic Brake Installation Manual

Electromagnetic Brake Dimension (Unit=mm)

Model		RDDLZ-FBD-006	RDDLZ-FBD-015	RDDLZ-FBD-025	RDDLZ-FBD-050	RDDLZ-FBD-100	RDDLZ-FBD-200	RDDLZ-FBD-400
Radius	A1	63	80	100	125	160	200	250
	A2	46	60	76	95	120	158	210
	A3 (Hole Dimension)	34.5	41.5	51.5	61.5	79.5	99.5	124.5
	C1	80	100	125	150	190	230	290
	C2	72	90	112	137	175	215	270
	C3	35	42	52	62	80	100	125
	V1	3-3.1	3-4.1	3-5.1	3-6.1	3-8.1	3-10.2	3-12.2
	V2	3-6.3	3-8	3-10.5	3-12	3-15	3-18	4-22
	V3	3-6	3-7	3-9	3-10.5	3-14	3-17	4-19
	E	26	31	41	49	65	83	105
	Y	5	6	7	7	9.5	9.5	11.5
Shaft	H	18	20	22	24	26	30	35
	J	3.5	4.3	5	5.5	6	7	8
	K	2	2.5	3	3.5	4	5	6
	L	22	24.5	28	31	35	41.5	48
	L1	37	44.5	53	61	73	86.5	102
	L2	25.5	28.5	33	37	42	50.5	59
	M	15	20	25	30	38	45	54
	P	7.5	8	9	9	11.5	13	15.5
	T	6	8	10	12	15	18	22
	X	1.5	1.8	2.1	2.8	3.4	4.5	5.1
	Z	6-60°						8-45°
	m	2-M4	2-M5		2-M6	2-M8		2-M10
	a	0.2(±0.05)			0.3^+0.05_-0.1		0.5^-0_-0.2

Tips: Electromagnetic brake applications

1. Packaging and packaging machinery: such as packaging machines, strapping machines, packaging machinery, etc.
2. Metal processing machinery: such as calender, wire drawing machine, punching machine, welding machine, copper wall iron wall returning machine, cutting machine, pipe making machine, winding machine, etc.
3. Mechanical work: lathe, milling machine, automatic CNC bed, special machine, etc.
4. Handling machinery: cranes, feeders, conveyors, coilers, winches, etc.
5. Paper machinery: bag making machine, carton machine, breaker, book machine, cutting machine, paper machine, etc.
6. Printing machinery: rotary machine, feed printing machine, etc.

Tips: The difference between magnetic powder clutch and electromagnetic clutch

Both the magnetic powder clutch and the electromagnetic clutch can be used to transmit torque. They all operate with a DC 24V current. They have many similarities, but they are different. They work differently and the working environment is different. Let's take a look at what they have.

The magnetic powder clutch uses the magnetic powder in the working chamber as the working medium, and the magnetic powder gradually fails with the use time. After the magnetic powder performance is greatly reduced, a new magnetic powder needs to be replaced, the small hole above the magnetic powder clutch is opened, the magnetic powder in the working chamber is poured out, and a new magnetic powder is added. Magnetic powder replacement needs to be handled by professionals, it is not very simple, otherwise it is easy to go wrong.

The electromagnetic clutch relies on the energization and power-off of the coil to control the combination and separation. The starting torque is large, the clutch speed is fast, and the action response is fast. It is convenient to realize automatic control and remote control, and adjust the magnitude of the transmission torque by changing the excitation current. The magnetic powder clutch transmits torque by the bonding force between the magnetic powder and the friction between the magnetic powder and the working surface. Mainly used for smooth joint, high frequency, need to adjust the starting time, automatically adjust the torque, speed or maintain constant torque transfer, need overload protection system.
