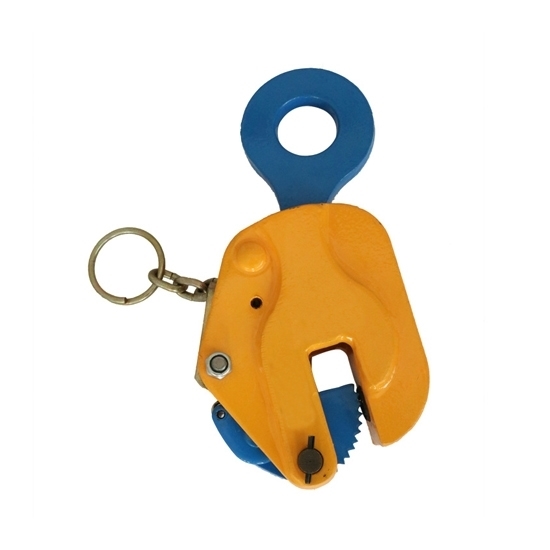

Vertical plate lifting clamp is designed to distribute the load evenly, preventing damage to the board surface during lifting and transportation. With its rugged construction and lifting capabilities, vertical plate lifting tongs enable operators to move heavy plates precisely, minimizing manual labor and increasing workplace productivity.

Feature

• The lifting clamp is a standard design clamp for vertical lifting of steel plates and steel structures.
• The spring loaded tightening lock mechanism assures a positive initial clamping force.
• The vertical lifting plate clamp is equipped with a safety mechanism, ensuring it does not slip when lifting force is applied and when load is being lowered.
• It is locked in closed as well as in open position.
• High-frequency quenching of die forged special alloy steels gives greater durability to the lifting clamp.

Specification

• Model: RDDLZ-VLC-CDH1
• Max. Working Load of 2 Plate Clamps: 1 Ton
• Jaw Opening: 0~20mm
• Weight: 3.6kg

Note*: During hoisting operations, 2 or multiple vertical plate lifting clamps are required to be used together.

Application

Tips: What is a vertical plate lifting clamp?

A vertical plate lifting clamp is a specialized tool designed to securely lift and transport heavy plates in a vertical position. It consists of a sturdy clamp mechanism with a gripping surface that is capable of securely gripping onto the edges of the plate. The clamp is typically attached to a lifting device such as a crane or hoist, allowing for controlled lifting and positioning of the plate. Vertical plate lifting clamps are commonly used in industries such as construction, manufacturing, and shipbuilding, where large and heavy plates need to be moved and installed. These clamps provide a safe and efficient method for handling plates, reducing the risk of accidents and ensuring precise placement.
