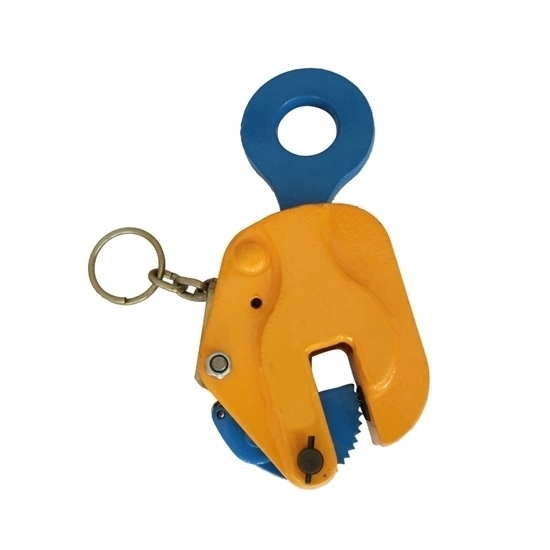

Vertical plate lifting clamp is a specialized device used to securely lift and transport vertical plates or sheets of material. It is designed with a durable construction, typically featuring strong steel jaws or grippers, which can be easily attached to the edges of the plate.

Feature

• The lifting clamp is a standard design clamp for vertical lifting of steel plates and steel structures.
• The spring loaded tightening lock mechanism assures a positive initial clamping force.
• The vertical lifting plate clamp is equipped with a safety mechanism, ensuring it does not slip when lifting force is applied and when load is being lowered.
• It is locked in closed as well as in open position.
• High-frequency quenching of die forged special alloy steels gives greater durability to the lifting clamp.

Specification

• Model: RDDLZ-VLC-CDH5
• Max. Working Load of 2 Plate Clamps: 5 Ton
• Jaw Opening: 0~50mm
• Weight: 17kg

Note*: During hoisting operations, 2 or multiple vertical plate lifting clamps are required to be used together.

Application

Tips: What are the different types of plate clamps?

Plate clamps are essential lifting devices used to secure and handle various types of plates, sheets, and similar materials. There are several types of plate clamps, each designed for specific applications:

• Vertical Plate Clamps: These clamps are designed to lift and transport plates in a vertical orientation. They usually have a single lifting eye or jaw mechanism.
• Horizontal Plate Clamps: These clamps are used for lifting plates in a horizontal position. They typically have two or more jaws to securely grip the plate.
• Adjustable Plate Clamps: These clamps feature adjustable jaws or gripping mechanisms, allowing them to accommodate plates of different thicknesses.
• Locking Plate Clamps: These clamps have a locking mechanism that securely holds the plate in place, ensuring it doesn't slip or slide during lifting operations.
• Non-Marking Plate Clamps: These clamps are equipped with special pads or coatings to prevent any damage or marking to the surface of the plate being lifted.
• Rotating Plate Clamps: These clamps enable the rotation of the plate during lifting, allowing for precise positioning and installation.
