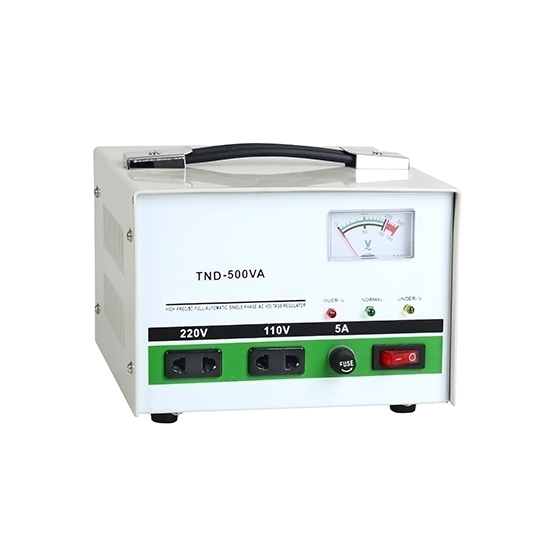

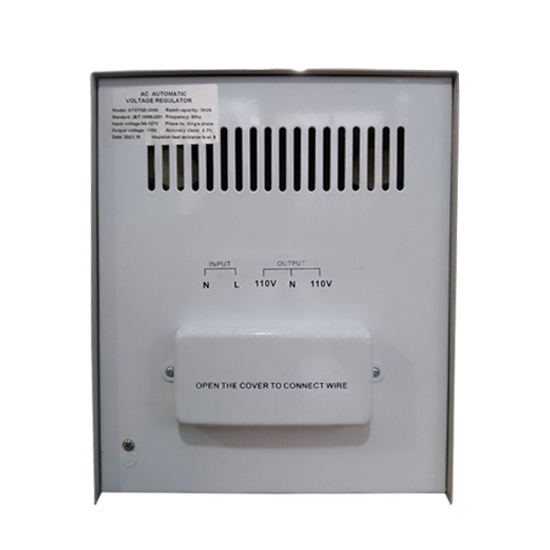

500 VA Single Phase Automatic Voltage Stabilizer For Home

0 reviews • Write a review

from

$165.24

Ex Tax: $165.24

Stock: In Stock
Model: RDDLZ-AVS-1P500V
Weight: 1.00
SKU: RDDLZ-AVS-1P500V

Available Options

Short Description

Output Voltage (AC)

Extended Warranty

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Wide input voltage: 150-250V AC or customize
The high accuracy of the output voltage: is 220V±3%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
Fashion design: LED display that can show all protection functions, such as input voltage, output voltage, temperature, loading, fault indication, and so on.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	RDDLZTND-500
Technology	Relay Control System+Programmed control computerized+control algorithm relay "Cross zero"
Capacity	500 VA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional waveform distortion
Efficiency	>95%
Display	LED
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE, RoHS
Warranty Period	12 months
Weight	2.5 Kg
Size	LxWxH=190x180x130mm
Note: The provided 500VA voltage stabilizer is 1-phase (L, N, G) by European standards. Split phase (L1, L2 + G) like USA standard can't be customized.

Applications

Tips: What is a Voltage Stabilizer?

Voltage stabilizer is a kind of power supply equipment that can automatically adjust the output voltage. Its function is to stabilize the power supply voltage which fluctuates greatly and cannot reach the requirement of electrical equipment within its set value range so that various circuits or electrical equipment can work normally underrated working voltage. With the increasing number of household electrical equipment, the use of voltage stabilizer is more and more extensive. Domestic voltage stabilizer is mainly used to stabilize the voltage of TV, refrigerators, air conditioners, etc.
