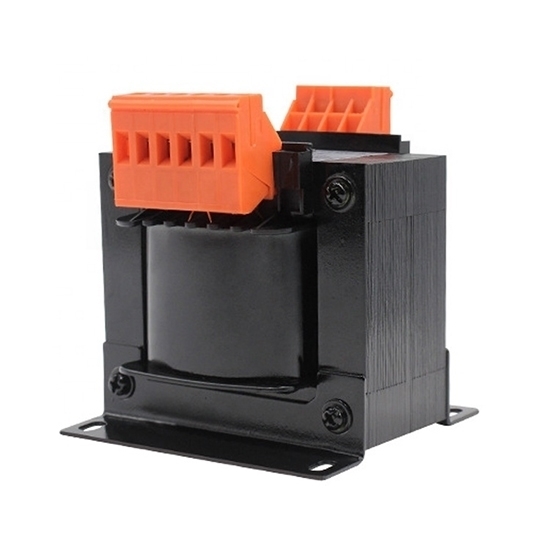

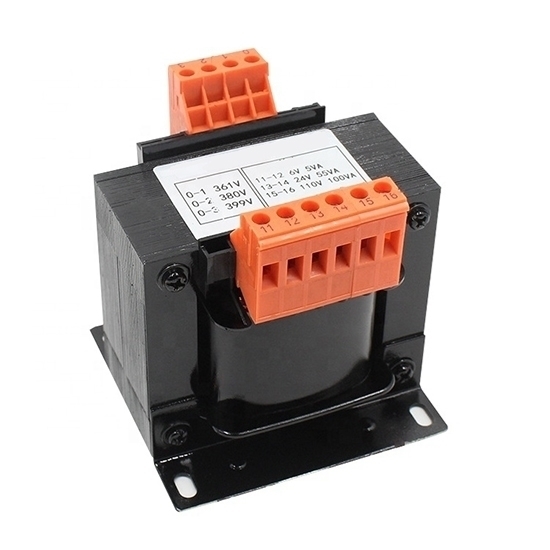

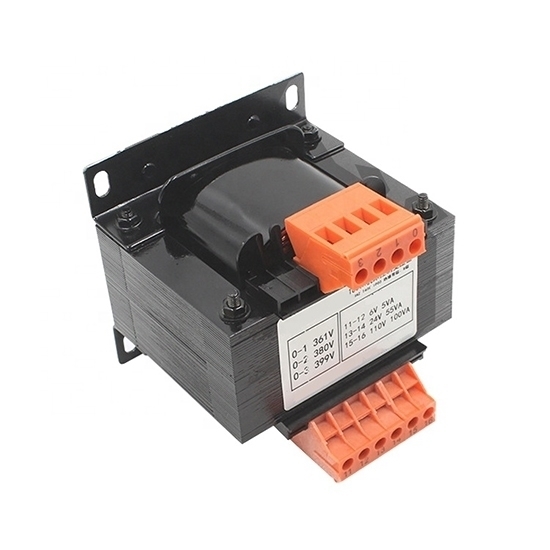

2000VA Control Transformer, 240/480V To 220/36V

0 reviews • Write a review

from

$756.24

Ex Tax: $756.24

Stock: In Stock
Model: RDDLZ-T-BK2000VA
Weight: 1.00
SKU: RDDLZ-T-BK2000VA

Available Options

Winding Material

Primary Voltage (AC)

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This is a 1-phase 2000VA dry type automatic control transformer with low price, 240/480 volt primary voltage and 220/36 volt secondary voltage, commonly used in machine tools working as local lighting, power of indicator light or the machine control electric appliance.

Specifications

Product Name	Single phase control transformer
Product Model	RDDLZBK-2000VA
Winding Material*	Enameled copper wire or enameled aluminum wire (Optional)
Total Output Capacity	2000VA Note: (If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 2000VA).
Primary Voltage* (VAC)	110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customized)
Secondary Voltage* (VAC)	6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customized)
Frequency	50 / 60Hz
Insulation Level	F / H
Withstand Voltage Test	Primary to secondary 2.5KV/min
	Primary to safety ground 2.5KV/min
	Secondary to safety ground 1.5KV/min
Insulation Resistance	Primary to secondary 2500V>100 megohm
	Primary to safety ground 2500V>100 megohm
	Secondary to safety ground 1500V>100 megohm
Induction Withstand Voltage Test	125Hz/ 800V/min
Ground Resistance	25A<80 milliohm
Cooling Method	Natural or air cooling
Transformation Ratio	<3%
Air Carrying Current	<6%
Impedance Voltage	about 6%
Total Losses	0.1
Efficiency	80%~99%
Operating Temperature	-25℃~40℃ (40℃, 93% RH, 56 days)
Storage Temperature	-25℃~100℃ (40℃, 93% RH, 56 days)
Certificate	CE, ISO
Warranty	12 months
Size	Overall size: 192135190mm, Hold distance for installation: 140120mm, Installation hold: 178mm
Weight	20kg

Schematic diagram illustration

Control transformer dimension

Overall size (mm)			Hole distance for installation (mm)		Installation hole (mm)
B	E	D	A	C	K x J
192	135	190	140	120	12 x 8

4 tips for using a control transformer

See the connection terminal of the transformer before wiring: When the primary voltage is 220V, connect it to the 220V power line. When the primary voltage is 380V, connect it to the 380V AC power supply. Never connect 380V power line to 220V terminal.
The secondary voltage terminal of the control transformer shall correspond to the controlled load voltage. If it is an indicator light, it should be connected with a voltage of 6.3V, and the low-voltage lighting bulb of the machine tool should be connected with a voltage of 36V. If it is an AC contactor coil of the machine tool, it needs to use a voltage of 127V, it should be connected with a voltage terminal of 127V.
The control transformer shall be installed in a dry place to avoid vibration and damage to its internal structure.
During the use of the control transformer, the load shall not be short circuited, and the power of the load shall not exceed the capacity of the control transformer.
