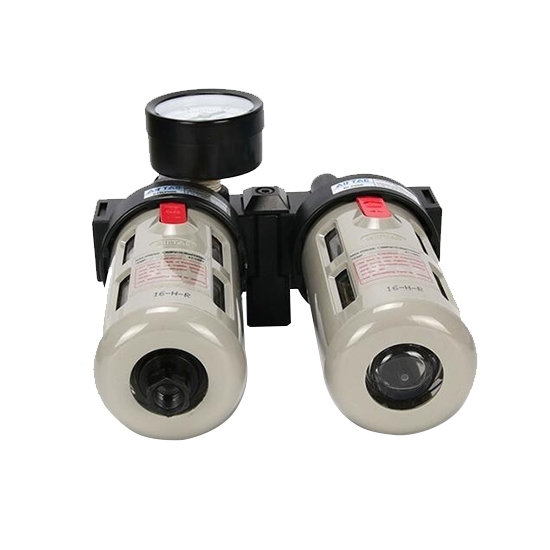

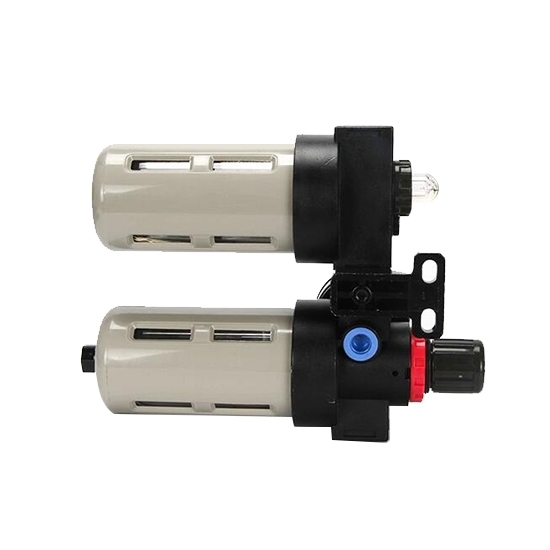

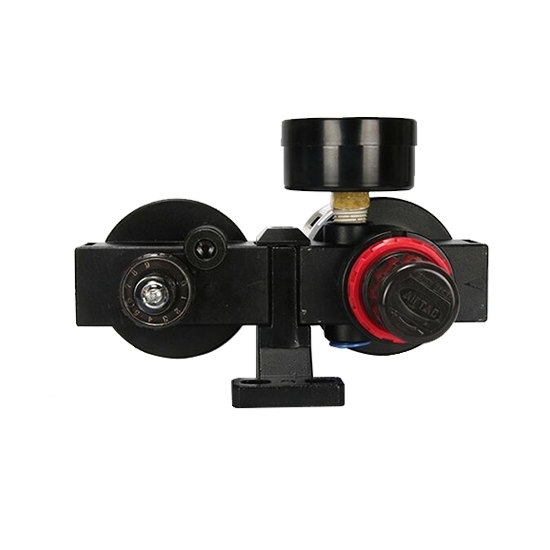

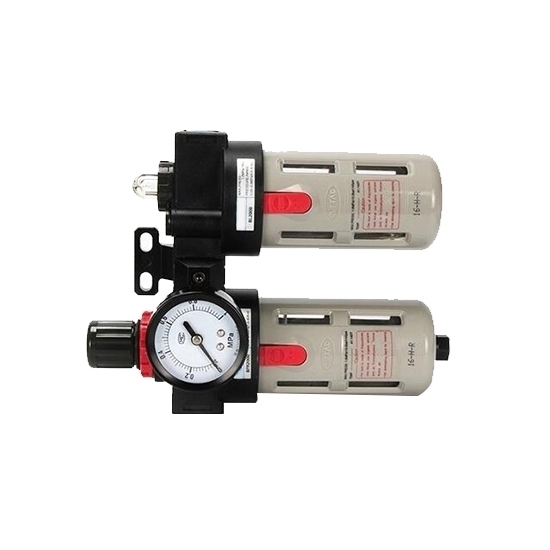

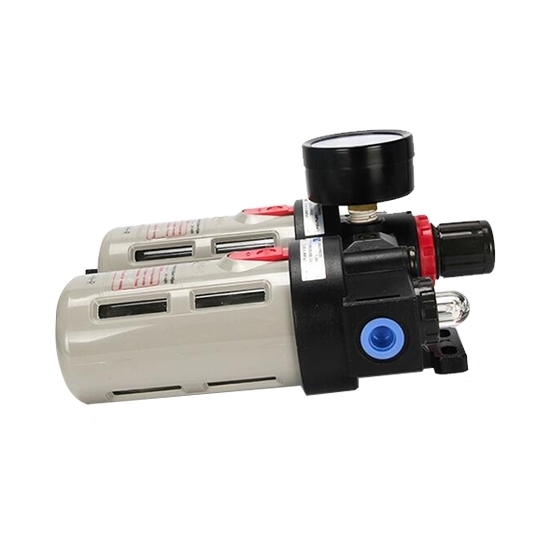

1/2" Air Filter & Regulator FRL Combination Unit

0 reviews • Write a review

from

$60.35

Ex Tax: $60.35

Stock: In Stock
Model: RDDLZ-AFR-1/2
Weight: 1.00
SKU: RDDLZ-AFR-1/2

Available Options

Type

Thread Type

Drain Type

Pressure Gauge

Scale

Filtering Grade

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Feature

The 1/2" air filter and regular FRL combination unit with delicate and compact structure, which is convenient for installation and application.
The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
The pressure loss is low and the efficiency of the 1/2" compressed oil-water separator is high.
The quantity of oil dripping can be directly observed through transparent checkdome.
In addition to standard type, lower pressure type is optional ( The highest adjustable pressure is 0.4MPa ).

Details

Specification

Model	RDDLZ-BFC4000
Fluid	Air
Port size	1/2"
Filtering grade	40 μm or 50 μm
Pressure range	Semi-auto and automatic drain: 0.15-0.9 mpa ( 20-130 psi ) manual drain: 0.05-0.9 mpa ( 7-130 psi )
Max.pressure	1.0 mpa ( 145 psi )
Proof pressure	1.5 mpa ( 215 psi )
Temperature range	-5~70 ℃
Capacity of drain bowl	60 CC
Capacity of oil bowl	90 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	700 g

Selection table

Drain type	Semi-auto drain
Drain type	Manual drain
Pressure gauge	Pressure gauge
Pressure gauge	No pressure gauge
Scale	1 mpa 2 psi 3 bar 4 kgf/cm² & psi
Filtering grade	40 μm
Filtering grade	5 μm
Thread type	PT ( scale: mpa or kgf/cm² & psi )
	G ( scale: bar )
	NPT ( scale: psi )

No. ltem
1 B Series filter & regulator
2 B Series bracket
3 B Series gasket
4 B Series fixed kit
5 screw
6 B Series lubricator

Pressure and feature of flow

Dimension(Unit: mm)

Tips

The device must be installed correctly, and qualified operators must be commissioned and maintained in accordance with the operating instructions to make it operate safely.
Failure to close the isolation valve during installation and maintenance will cause damage to the components of the system and cause harm to the human body. The danger also includes: the protection device and the ventilation pipe or the alarm system are closed. Ensure that the isolation valve is closed to avoid the impact of the system.
Pressure: When maintaining and repairing, consider whether there is a medium in the oil-water separator pipeline. Make sure that the pressure medium has been isolated and the safety airway has been open to the atmosphere. This can be solved by installing a drain valve, even if the pressure gauge indicates zero. Don't think that the system is drained.
Temperature: After closing the isolation valve, there should be a period of time to make the operating part close to normal temperature to avoid burns.
Disposal: The product can be recycled. Properly handled will not cause ecological problems.
