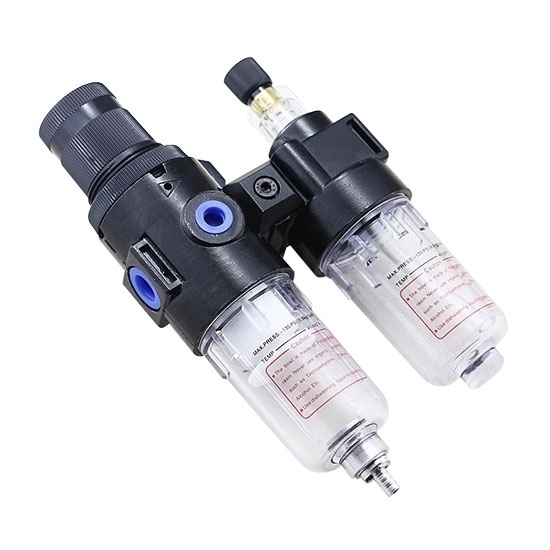

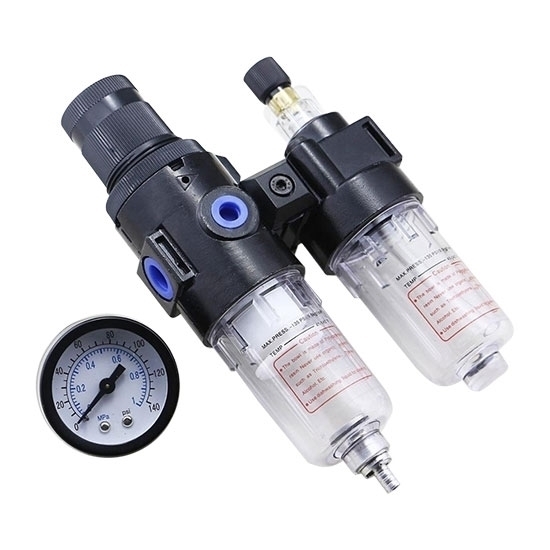

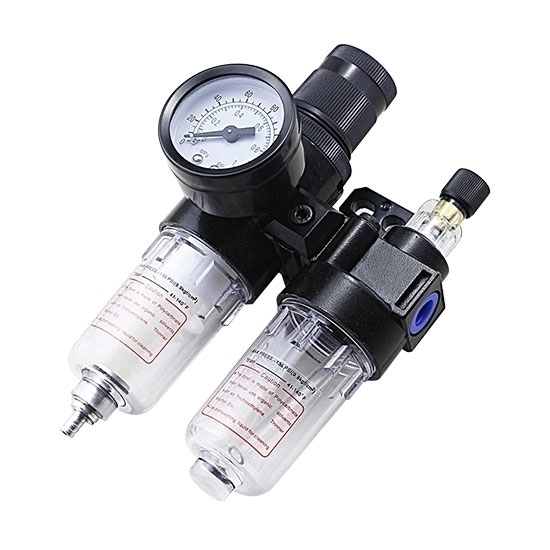

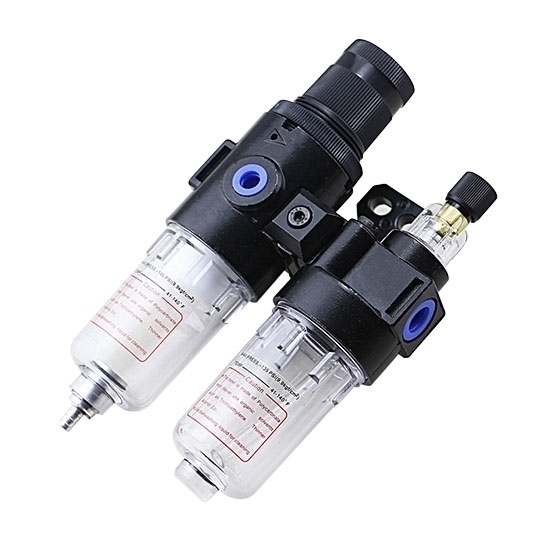

1/4" NPT Air Filter With Regular Trap

0 reviews • Write a review

from

$55.35

Ex Tax: $55.35

Stock: In Stock
Model: RDDLZ-AF-1/4-NPT
Weight: 1.00
SKU: RDDLZ-AF-1/4-NPT

Available Options

Type

Thread Type

Drain Type

Pressure Gauge

Scale

Filtering Grade

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 1/4" NPT air filter with delicate and compact structure, which is convenient for installation and application.
The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
The pressure loss is low and the efficiency of the 1/4" oil-water separator is high.
The quantity of oil dripping can be directly observed through transparent checkdome.
In addition to standard type, lower pressure type is optional ( The highest adjustable pressure is 0.4MPa ).

Specification

Model	RDDLZ-AFC2000
Fluid	Air
Port size	1/4"
Filtering grade	40 μm or 50 μm
Pressure range	Semi-auto and automatic drain: 0.15-0.9 MPa ( 20-130 Psi ), manual drain: 0.05-0.9 MPa ( 7-130 Psi )
Max pressure	1.0 MPa ( 145 Psi )
Proof pressure	1.5 MPa ( 215 Psi )
Temperature range	-5~70 ℃
Capacity of drain bowl	15 cc
Capacity of oil bowl	25 cc
Recommended lubricant	ISO VG 32 or equivalent
Weight	500 g

Selection table

Drain type	Semi-auto drain
Drain type	Manual drain
Pressure gauge	Pressure gauge
Pressure gauge	No pressure gauge
Scale	1 MPa, 2 Psi, 3 bar, 4 kgf/cm² & Psi
Filtering grade	40 μm
Filtering grade	5 μm
Thread type	PT ( scale: MPa or kgf/cm² & Psi )
	G ( scale: bar )
	NPT ( scale: Psi )

No. ltem
1 A Series filter & regulator
2 A Series bracket
3 A Series gasket
4 A Series fixed kit
5 screw
6 A Series lubricator

Details

Pressure and feature of flow

Dimension(Unit: mm)

Tips

The working steps of the 1/4" oil-water separator in the car:
1. After the fuel enters the filter separator, the solid impurities are first filtered out by the filter layer.
2. In the demulsification layer, the oil and water in the emulsified state are separated.
3. In the 1/4" oil-water separator, small water droplets will condense into large water droplets and be stored in the sump.
4. Through the water repellent effect of the separated filter element, the small water droplets that do not condense are collected into the sedimentation tank, and then discharged from the drain valve.
5. Finally, drain the fuel whose moisture has been separated from the 1/4" NPT air filter with regular trap.
