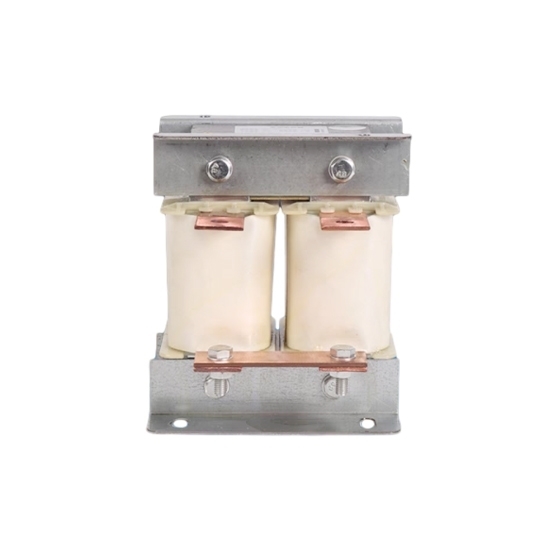

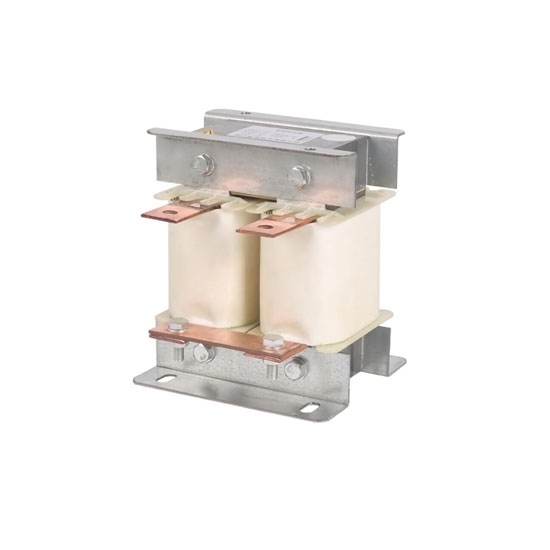

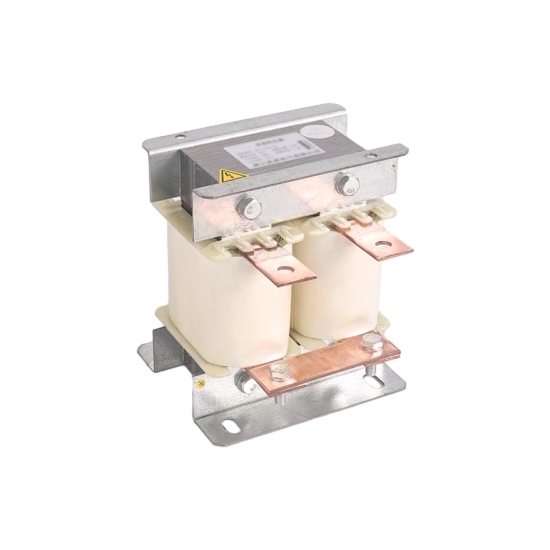

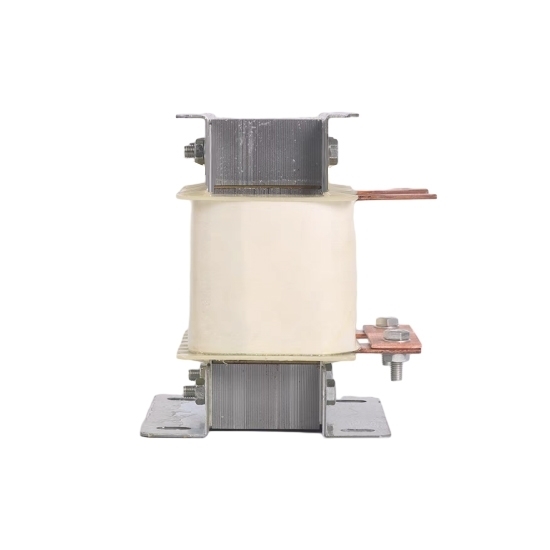

200 Hp (160kW) DC Reactor, Single Phase

0 reviews • Write a review

from

$692.39

Ex Tax: $692.39

Stock: In Stock
Model: RDDLZ-DCR-200
Weight: 1.00
SKU: RDDLZ-DCR-200

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC line reactor for vfd, single phase, power 160kW, cheap price, high quality, it has the advantages of high quality and strong corrosion resistance.

Specification:

Model	RDDLZ-DCL-400
Phase	1 Phase
Power Adapter	160kW (200 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	400A
Inductance	0.08mH
Insulation Grade	F.H
Dimension	165200185mm
Mounting Dimension	120*120mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	22kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: Difference between reactor and transformer

The transformer plays the role of voltage conversion. The reactor plays the role of limiting or generating inductive current in the loop. The transformer has at least two windings in the same magnetic circuit, and the reactor generally only needs one winding. In order to improve the linearity of the inductance, the iron core generally has an air gap.
