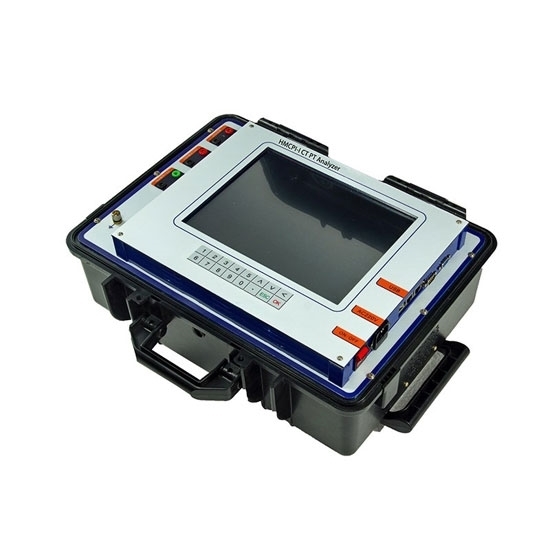

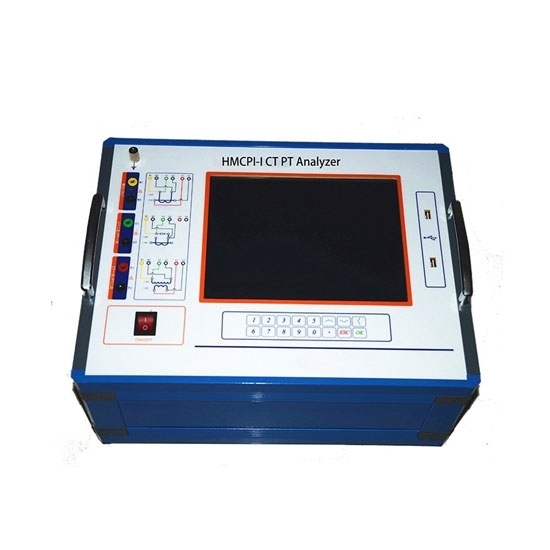

Current transformer tester set for knee point test, CT PT analyzer input voltage 110V or 220V is available, 50Hz/60Hz, functional test stability and high efficiency.

Specification:

Features and Advantages

1. Simple test, full-featured, meet CT and PT test requirements.
2. High degree of automation, the experimental report of the current transformer tester, can complete the analysis of the test source data file and the production word report through the PC machine software, automatically give the knee voltage, current, 10%, 5% error curve, accuracy limit coefficient (ALF), instrument security factor (FS), quadratic time constant (Ts), remanence coefficient (Kr), saturation and unsaturated inductance, CT, CP parameters.
3. The current transformer tester can store 2000 sets of test data, which can be stored in the PC with a U disk.
4. Stable performance and high test efficiency. Lightweight and easy to carry.
What is the Current Transformer Analyzer?

The current transformer analyzer is a multifunctional field test instrument specially designed for testing transformers: volt-ampere characteristics, ratio, polarity, error curve, calculation of inflection point and secondary side circuit inspection. In the experiment, only the test voltage and current value need to be set, the device can automatically boost/upflow, and the volt-ampere characteristic curve or ratio, polarity and other experimental results of the transformer can be quickly displayed to support data saving and field printing. It not only saves the tedious labor of manual voltage regulation, manual recording, curve drawing, etc., but also uploads test data to the computer for editing, saving or printing through the USB interface. The operation is simple and convenient, and the work efficiency is improved. It is a high-tech product with high cost performance.
