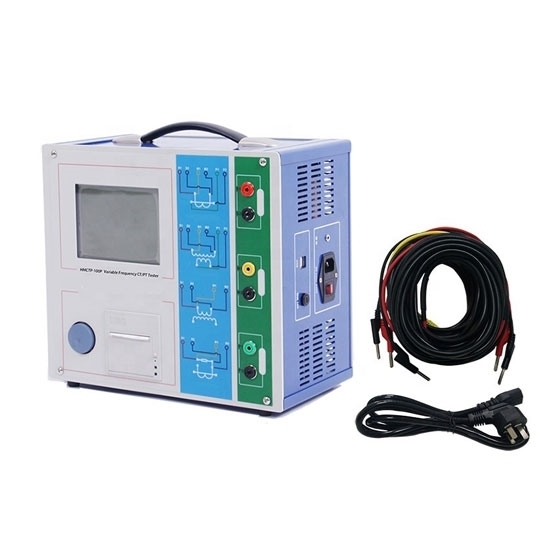

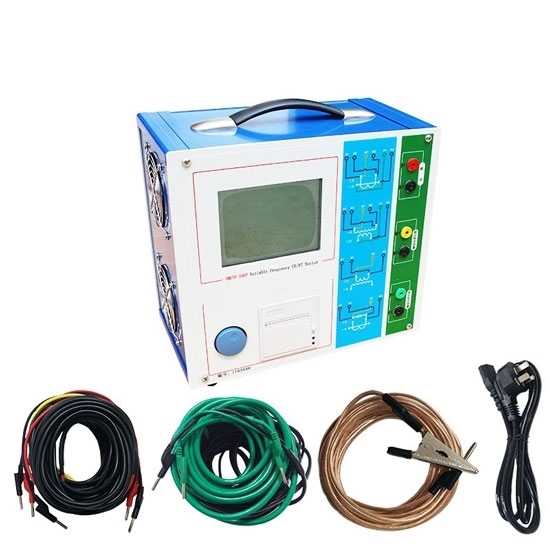

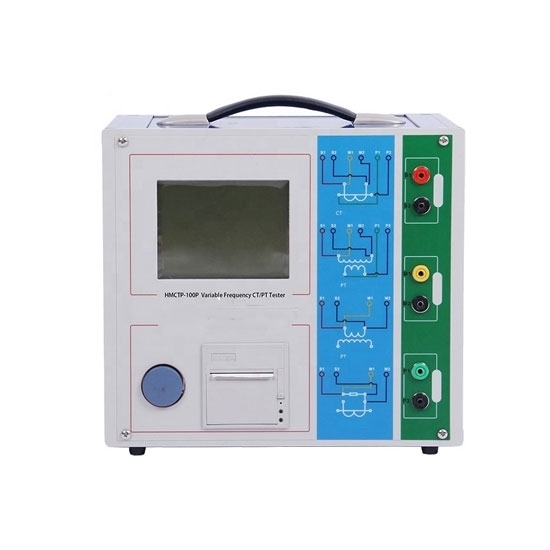

Current Transformer Tester, CT PT Analyzer, 220V

Free Shipping

Current Transformer Tester, CT PT Analyzer, 220V

0 reviews • Write a review

from

$8,868.43

Ex Tax: $8,868.43

Stock: In Stock
Model: RDDLZ-HMCTP-100P
Weight: 1.00
SKU: RDDLZ-HMCTP-100P

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Current transformer test set for sale, CT PT (VT) analyzer can be used for ct polarity test, wiring simple, small size and easy to carry, it is an ideal choice for measuring AC transformers and voltage transformers.

Specification:

Model		RDDLZ-HMCTP-100P
Input voltage		AC220V±10%, 50Hz
Usage		Class P/TP CT & VT
Output		0~100Vrms, 12Arms, 36A (peak value)
Voltage Measurement Accuracy		±0.2%
CT Ratio	Range	1~30000
CT Ratio	Accuracy	±0.2%
PT Ratio	Range	1~10000
PT Ratio	Accuracy	±0.2%
Phase	Range	±5min
Phase	Accuracy	0.5min
DC Resistance	Range	0~300Ω
DC Resistance	Accuracy	2%±2mΩ
Burden	Range	0~300VA
Burden	Accuracy	2%±0.2VA
Environmental Conditions	Temperature	-10℃~50℃
Environmental Conditions	Humidity	≤90%
Dimensions		340300150mm
Weight		9kg

Features and Advantages

1. Simple test, full-featured, meet CT and PT test requirements.
2. High degree of automation, the experimental report of the current transformer tester, can complete the analysis of the test source data file and the production word report through the PC machine software, automatically give the knee voltage, current, 10%, 5% error curve, accuracy limit coefficient (ALF), instrument security factor (FS), quadratic time constant (Ts), remanence coefficient (Kr), saturation and unsaturated inductance, CT, CP parameters.
3. The current transformer tester can store 2000 sets of test data, which can be stored in the PC with a U disk.
4. Stable performance and high test efficiency. Lightweight and easy to carry.

Tips: Current Transformer Analyzer Applications
Current transformer analyzer is used for various types of CT (such as protection, metering, TP) excitation characteristics (volt-ampere characteristics), ratio, polarity, secondary winding resistance, quadratic compliance, ratio difference and angular difference Wait for test requirements.
The current transformer tester is used for the excitation characteristics, ratio, polarity, secondary winding resistance, ratio difference and angular difference of various PT electromagnetic units.
