Tension And Compression Load Cell, 100kg/2 Ton To 20 Ton

0 reviews • Write a review

from

$104.29

Ex Tax: $104.29

Stock: In Stock
Model: RDDLZ-LC-S05
Weight: 1.00
SKU: RDDLZ-LC-S05

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

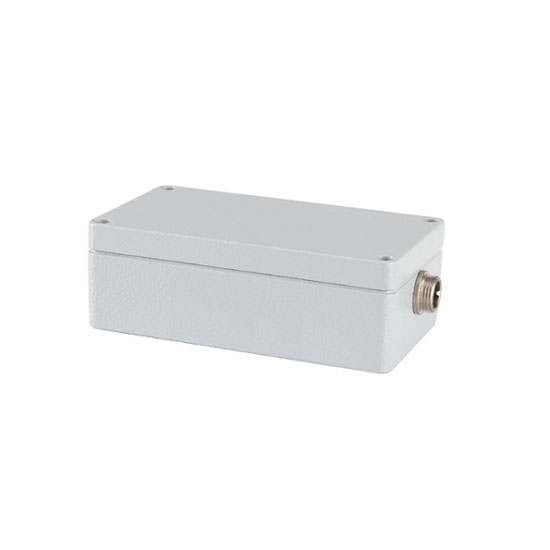

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

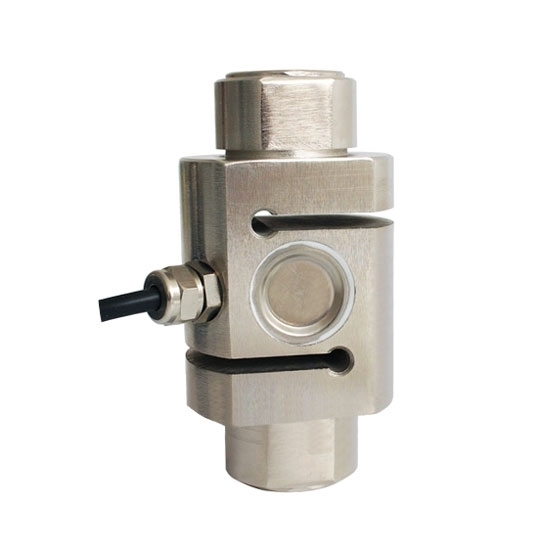

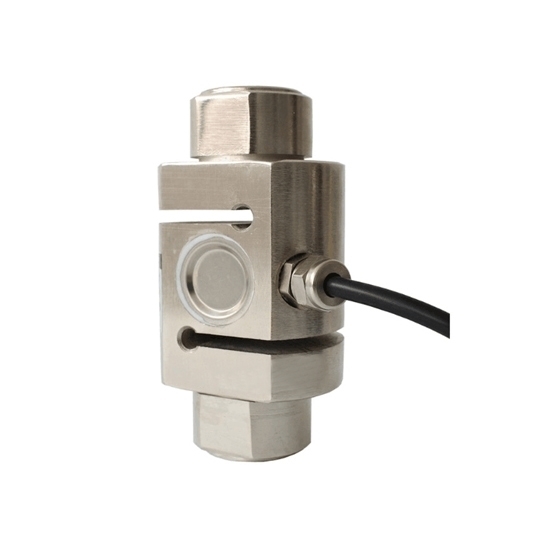

Tension and compression load cells have capacity range from 100kg, 500kg, 1000kg, 2 ton to 20 ton. Load cell capacity can be customized according to customer requirements.

Hermetically sealed to IP67, the robust construction perfectly safeguards the load cell from almost any damage emerging in harsh environments. The compact design plus the integral cable provide maximum convenience for installation even in restricted space.

Specification

Model	RDDLZ-LCS-TJL-4
Shipping Weight	1~5kg
Capacity Range *	100 kg~20 ton

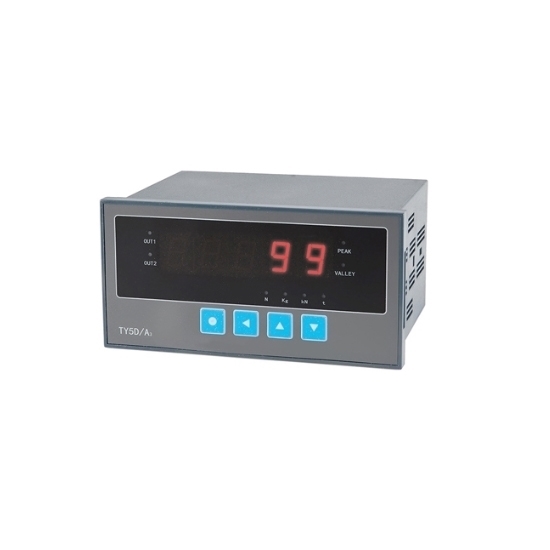

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel or stainless steel
Protection Class	IP66
Cable Length	2m (＜5ton), 5m (≥5ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

42CrMo Alloy Steel: High hardness, strength, and durability, resistant to corrosion.
Corrosion Resistance: Performs well in humid environments.
High Accuracy: Precise measurements in extreme conditions.
Bidirectional Measurement: Suitable for tension and compression.
Easy Installation: Threaded holes for secure mounting.
IP66 Protection: Dust and water resistant.
Durable Construction: Long service life with elastic alloy steel.

Dimension

Capacity	Dimension (mm)
Capacity	A	H	ΦB	Φ	M	C
100~500kg	88	58	28	44	M16*1.5	26
700kg	88	58	32	44	M16*1.5	30
1~5 ton	120	68	51	63	M22*2.5	48
7~15 ton	138	94	60	76	M30*3.5	56
20 ton	156	108	68.5	88	M36*3	76

Wiring Method

Tips: How to detect load cell with a multimeter?
First of all, measure the resistance values of load cell input terminal and output terminal, compare with the resistance values marked on the product. If the measured values exceed the standard range, it means that the load cell has problems. At present, there are two resistance values of the common load cell: one is low resistance, in which, the input terminal is 400Ω±20Ω and the output terminal is 350Ω±5Ω; the other is high resistance, in which, the input terminal is 800Ω±20Ω and the output terminal is 700Ω±5Ω. Moreover, measure the output signal of the load cell. Choose the mV voltage option of digital multimeter, input DC 10V at load cell input terminal, and then measure the output voltage of the load cell. The voltage value = 10V * load cell sensitivity * force value / range value. If the measured value is big different from the computed value, it means that the sensor has been damaged.
