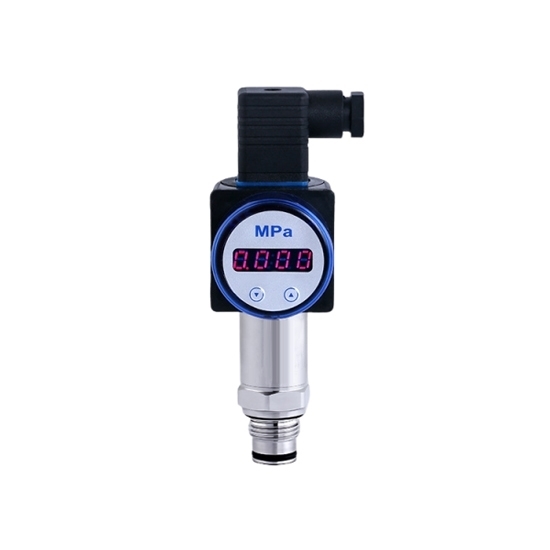

Flat Film Pressure Sensor With Display, 10/20/30/60MPa

0 reviews • Write a review

from

$268.46

Ex Tax: $268.46

Stock: In Stock
Model: RDDLZ-PRES-Z51E
Weight: 1.00
SKU: RDDLZ-PRES-Z51E

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Designed for harsh environments, the flat film pressure sensor utilizes high quality materials, including 316L stainless steel diaphragm and durable NBR seals, to ensure excellent corrosion resistance. Flexible output signals (RS485, 4-20mA, 0-5V, 1-5V, 0-10V) to meet the needs of a variety of industrial scenarios. Accuracy up to 0.25%FS (range >100kPa) and excellent temperature compensation, achieving ±0.01%FS/°C temperature drift control over the range of -10 to 70°C, suitable for complex environments.

Specification

Model	RDDLZ-CYYZ51E
Measuring Medium	Liquid, fluid, gas (compatible with contact material)
Pressure Range	0~0.4/0.6/1/1.6/10/20/25/30/35/40/60 MPa
Temperature Range	-40 to 60°C
Output Signal	RS485/4-20mA/0-5V/1-5V/0-10V
Pressure Type	Gauge pressure, absolute pressure, negative pressure
Turn-on Time	20ms
Power Supply	9～28VDC	15～28VDC
	0~5VDC/1~5VDC	RS485/4-20mA/0~10VDC
Maximum Power	≤0.02W (Us=supply voltage)
Response Frequency	RS485: 5Hz
	Absolute and negative pressure: 30Hz
	Measurement range ≤10kPa: 30Hz
	Others: 100Hz
Accuracy Class	Range >100kPa: 0.25%FS
	10kPa≤range<100kPa: 0.5%FS
	Meter head accuracy: 0.5%FS digital tube (LED) display
Stability	±0.1% FS/year
Temperature Compensation	-10 to 70°C
Temperature Drift	±0.01% FS/°C (within temperature compensation range)
	±0.05% FS/°C (outside temperature compensation range)
Protection Class	IP54
Ambient Temperature	-40~85°C
Diaphragm	316L stainless steel (contact with measured medium)
Process Connection	316L stainless steel (contact with measured medium)
Housing	304 stainless steel
Display Housings	ABS engineering plastic
O-Ring	NBR
ED Rings	Butyl rubber
Hirschmann Connector	ABS engineering plastic
Vibration Resistance	10g (20-2000Hz)
Shock Resistance	500g/ms
Short Circuit Protection	Permanent
Reverse Polarity Protection	No damage, but not working
Insulation Resistance	≥100MΩ, 500VDC
Insulation Strength	1×10^6 cycles (lower range to upper range)
Insulation Strength	500VAC
Net Weight	≈270g

Features

Double layer circuit design EMC upgraded, EMC electromagnetic compatibility is stronger.
Stainless steel locking ring, more corrosion-resistant and durable.
Breathing pressure sensor, breathable holes will breathe moisture and condensation, snap anti-rotation can prevent mis-installation resulting in unscrewing the cable.

Pressure Sensor Dimension Drawing (unit: mm)

Wiring Diagram

Note:

Circles represent shielded wires, and all marked grounding points must be effectively grounded. Shielded twisted pair signal cable is recommended. In order to avoid ground loops, the shielding layer adopts single-ended grounding, in the pressure transmitter end of the insulation floating ground, and in the control cabinet end of the ground.

The transmitter shell is grounded by default, so the field equipment needs to be effectively grounded, if the field equipment can not be grounded, it is necessary to make the indicated grounding point effectively grounded.

Applications

Tips: What is a flat film pressure sensor?

A Flat Film Pressure Sensor is a sensor designed to measure surface pressure or uniform pressure distribution. It converts externally applied pressure into an electrical signal output through its flat, flexible diaphragm structure. Due to their thin design, flat film pressure sensors are able to conform to complex curved surfaces and are used in a wide range of applications such as medical devices, industrial controls, motion monitoring and electronics.

Flat film pressure sensors offer the following advantages:

High sensitivity: capable of detecting subtle pressure changes, suitable for precision measurements.
Ultra-thin design: Only a few millimeters thick, allowing flexible installation in small or complex spaces.
High durability: Made of wear-resistant materials, suitable for long-term use.
Low power consumption: Ideal for portable devices or applications with high energy consumption requirements.
Easy to install: Quickly fixed without complicated tools, reducing installation cost and time.
